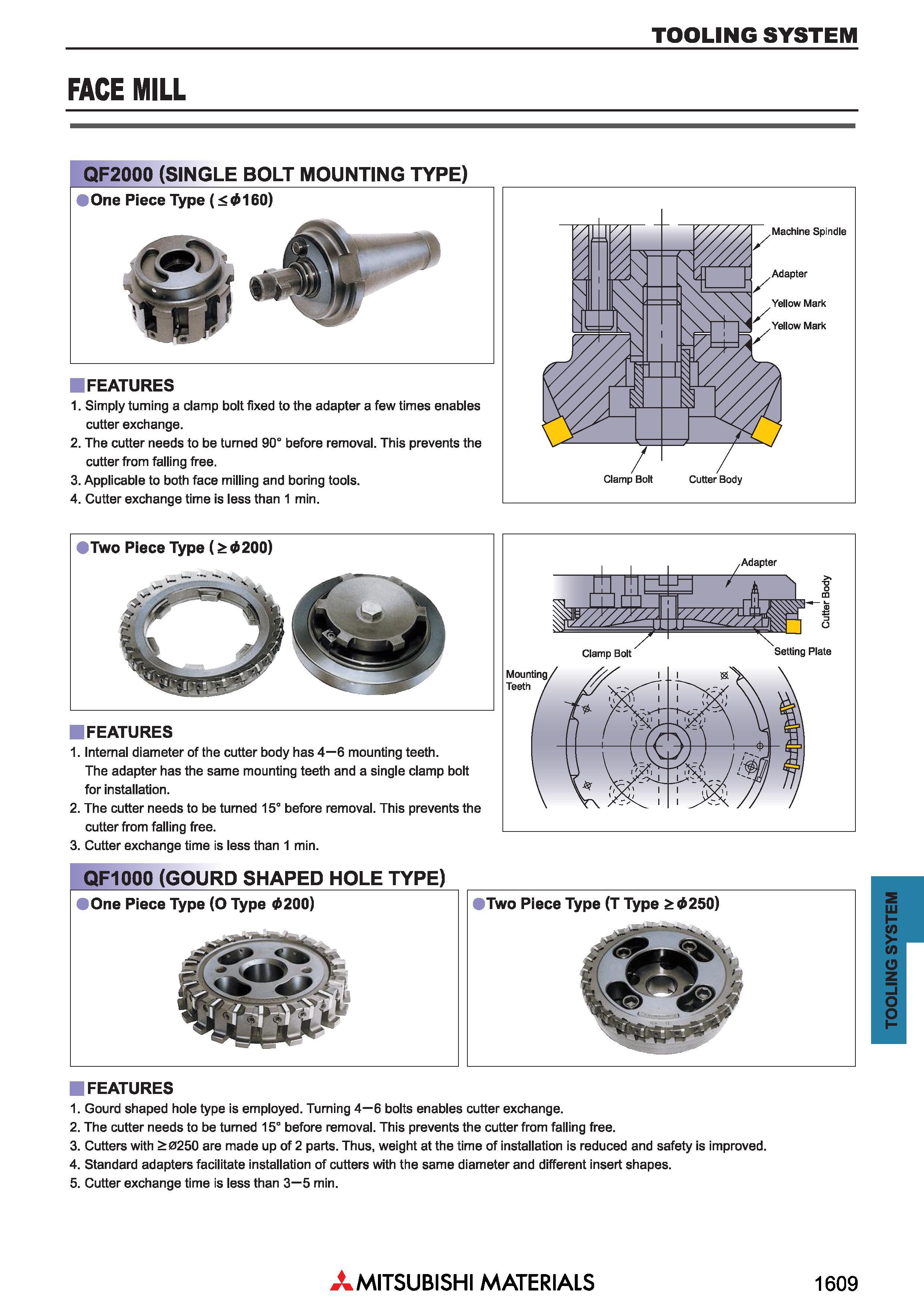

TOOLING SYSTEM FACE MILL QF2000 (SINGLE BOLT MOUNTING TYPE) 1 One Piece Type (<0160) FEATURES 1. Simply turning a clamp bolt fixed to the adapter a few times enables cutter exchange. 2. The cutter needs to be turned 90° before removal. This prevents the cutter from falling free. 3. Applicable to both face milling and boring tools. 4. Cutter exchange time is less than 1 min. FEATURES 1. Internal diameter of the cutter body has 4 6 mounting teeth. The adapter has the same mounting teeth and a single clamp bolt for installation. 2. The cutter needs to be turned 15° before removal. This prevents the cutter from falling free. 3. Cutter exchange time is less than 1 min. QF1000 (GOURD SHAPED HOLE TYPE) f One Piece Type (O Type 0200) i Two Piece Clamp Bolt Cutter Body Machine Spindle Yellow Mark Yellow Mark 4 Two Piece Type (£0200) Type (T Type £0250) FEATURES 1. Gourd shaped hole type is employed. Turning 4 6 bolts enables cutter exchange. 2. The cutter needs to be turned 15° before removal. This prevents the cutter from falling free. 3. Cutters with >0250 are made up of 2 parts. Thus, weight at the time of installation is reduced and safety is improved. 4. Standard adapters facilitate installation of cutters with the same diameter and different insert shapes. 5. Cutter exchange time is less than 3 5 min. Mitsubishi Materials 1609 TOOLING SYSTEM
