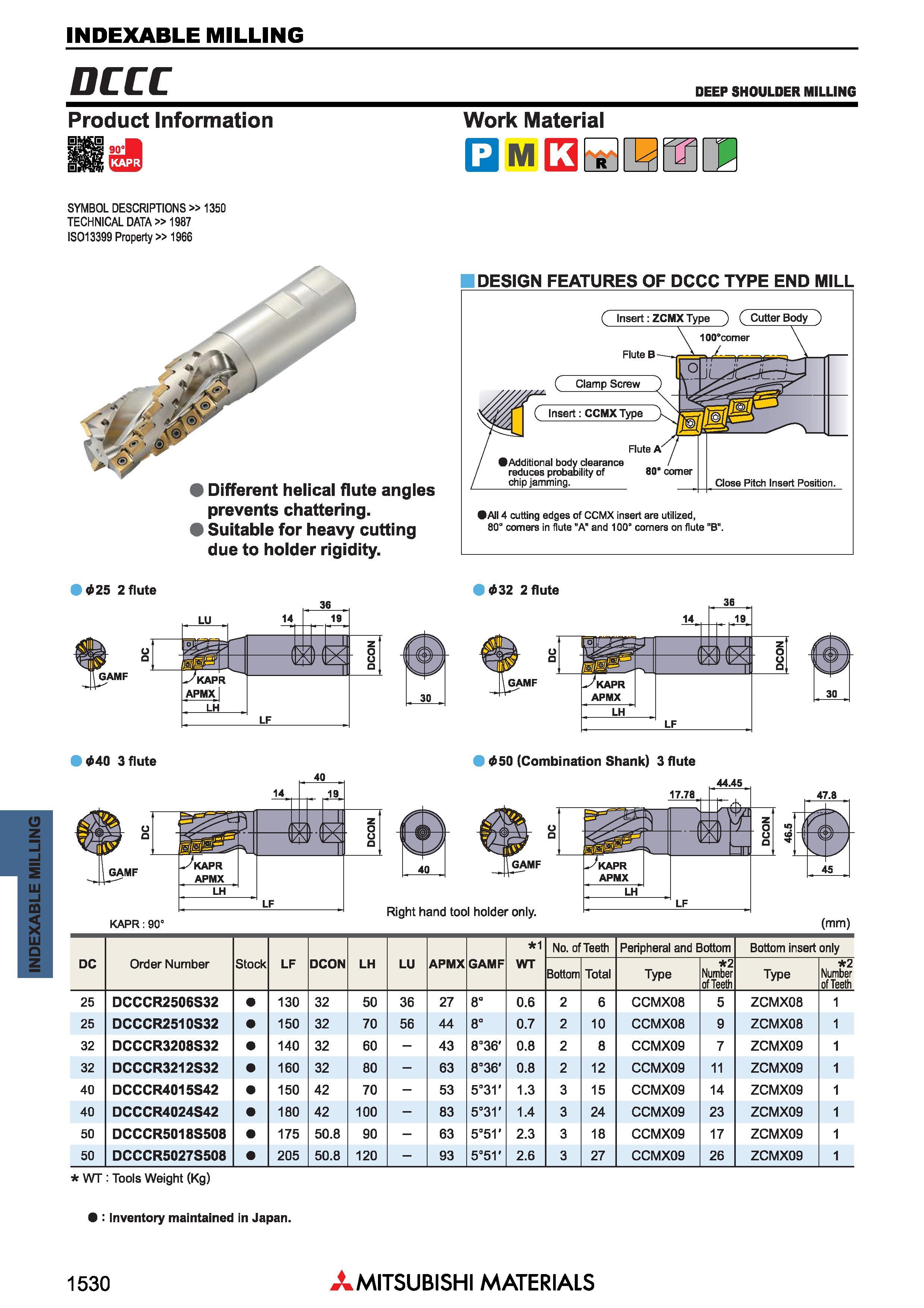

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ DCCC DEEP SHOULDER MILLING Product Information 901 Обрабатываемые материалы Work Material 0MQQ00 SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 Different helical flute angles prevents chattering. Suitable for heavy cutting due to holder rigidity. DESIGN FEATURES OF DCCC TYPE END MILL Flute ( Clamp Screw ( Insert CCMX Type Additional body clearance reduces probability of chip jamming. 80’ comer Close Pitch Insert Position. OAII4 cutting edges of CCMX insert are utilized, 80° comers in flute "A" and 100" comers on flute "B". ( Insert: ZCMX TypeT 425 2 flute 432 2 flute I GAMF 440 3 flute 450 (Combination Shank) 3 flute 47.8 (mm) DC Обозначение Order Number Stock LF CON LH LU APMX GAMF 1 WT No. of Teeth Peripheral and Bottom Bottom insert only Bottom Total Type 2 Количество режущих зубьев Number of Teeth Type 2 Количество режущих зубьев Number of Teeth 25 DCCCR2506S32 130 32 50 36 27 8° 0.6 2 6 CCMX08 5 ZCMX08 1 25 DCCCR2510S32 150 32 70 56 44 8° 0.7 2 10 CCMX08 9 ZCMX08 1 32 CCCR3208S32 140 32 60 - 43 8°36' 0.8 2 8 CCMX09 7 ZCMX09 1 32 CCCR3212S32 160 32 80 - 63 8°36' 0.8 2 12 CCMX09 11 ZCMX09 1 40 DCCCR4015S42 150 42 70 - 53 5°31' 1.3 3 15 CCMX09 14 ZCMX09 1 40 DCCCR4024S42 180 42 100 - 83 5°31' 1.4 3 24 CCMX09 23 ZCMX09 1 50 DCCCR5018S508 175 50.8 90 - 63 5°51' 2.3 3 18 CCMX09 17 ZCMX09 1 50 DCCCR5027S508 205 50.8 120 - 93 5°51' 2.6 3 27 CCMX09 26 ZCMX09 1 WT Tools Weight (Kg) Inventory maintained In Japan. 1530 Mitsubishi Materials
