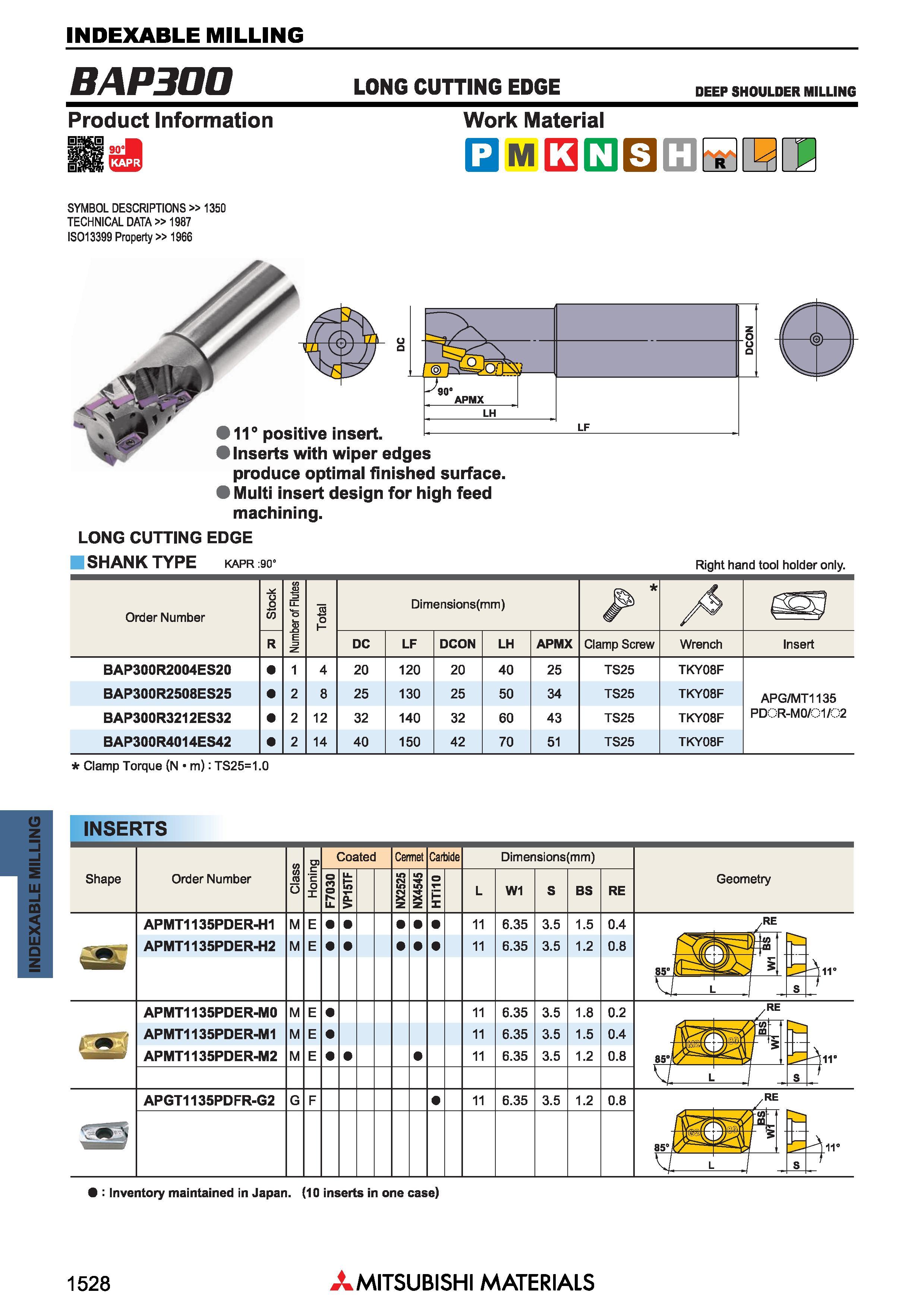

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ BAP300 LONG CUTTING EDGE DEEP SHOULDER MILLING Product Information Обрабатываемые материалы Work Material QmQOe SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 LF 11° positive insert. L - Inserts with wiper edges produce optimal finished surface. Multi insert design for high feed machining. LONG CUTTING EDGE SHANK TYPE KAPR :90° Right hand tool holder only. Обозначение Order Number Stock I Number of Flutes Total Dimensions(mm) A R DC LF DCON LH APMX Clamp Screw Wrench Insert BAP300R2004ES20 1 4 20 120 20 40 25 TS25 TKY08F BAP300R2508ES25 2 8 25 130 25 50 34 TS25 TKY08F APG/MT1135 BAP300R3212ES32 2 12 32 140 32 60 43 TS25 TKY08F PD0R-MQ/01/02 BAP300R4014ES42 2 14 40 150 42 70 51 TS25 TKY08F Clamp Torque (N m): TS25=1.0 INSERTS Shape Обозначение Order Number Class Honing Coated Cermet Carbide Dimensions(mm) Geometry F7030 VP15TF NX2S25 NX4545 HTilO L W1 S BS RE APMT1135PDER-H1 M E 11 6.35 3.5 1.5 0.4 /RE APMT1135PDER-H2 M E 11 6.35 3.5 1.2 0.8 E 85" I s 11” vj s APMT1135PDER-M0 M E 11 6.35 3.5 1.8 0.2 /r . m APMT1135PDER-M1 M E 11 6.35 3.5 1.5 0.4 APMT1135PDER-M2 M E 11 6.35 3.5 1.2 0.8 85 °l ii Air VJ L J s APGT1135PDFR-G2 G F 11 6.35 3.5 1.2 0.8 frf Hf E l s “t"11 Inventory maintained in Japan. (10 inserts in one case) 1528 Mitsubishi Materials
