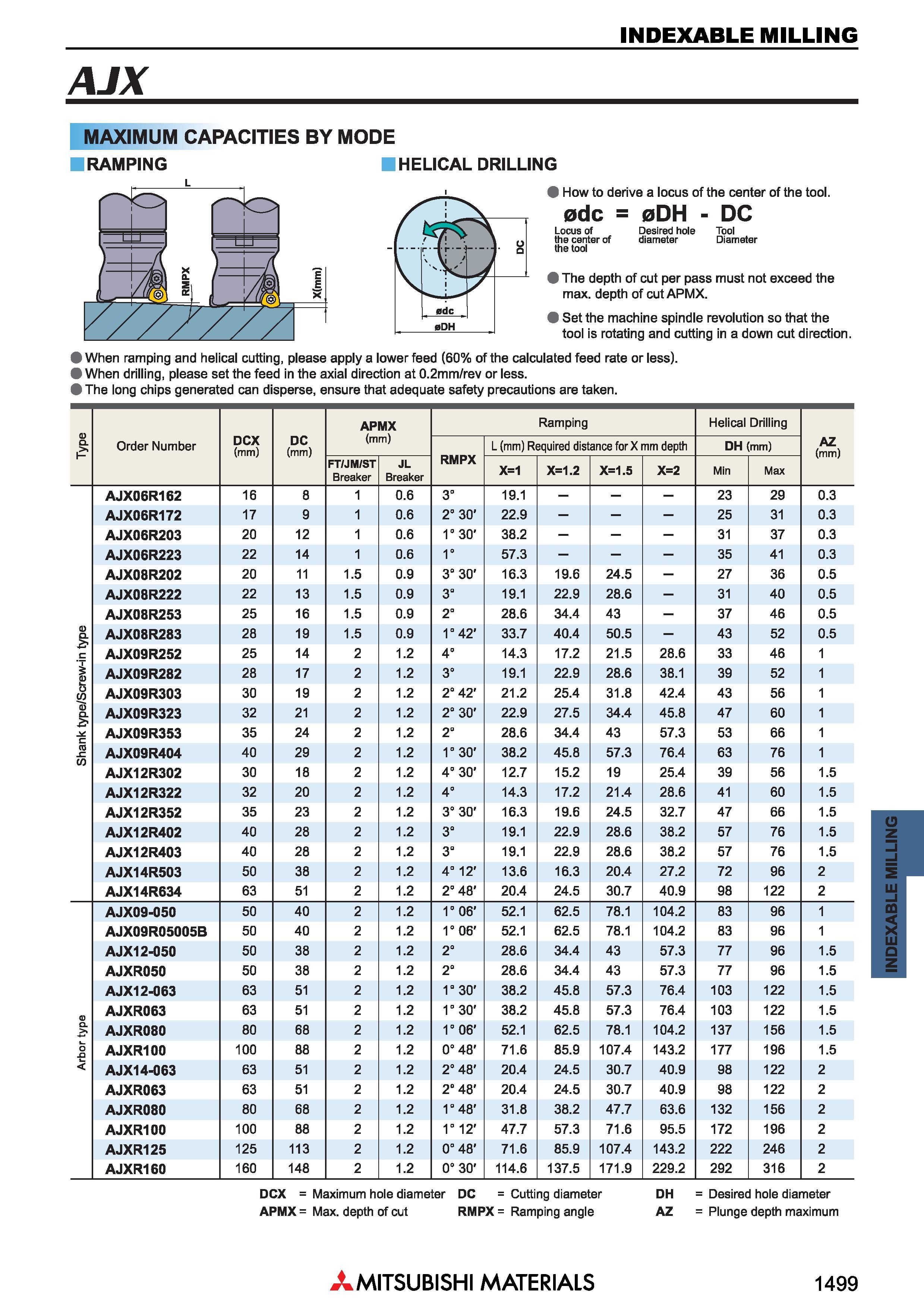

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AJX MAXIMUM CAPACITIES BY MODE RAMPING HELICAL DRILLING r I V - O a i Ode 0DH How to derive a locus of the center of the tool. ode = oDH - DC Locus of the center of the tool Desired hole diameter Tool Diameter The depth of cut per pass must not exceed the max. depth of cut APMX. Set the machine spindle revolution so that the tool is rotating and cutting in a down cut direction. 9 When ramping and helical cutting, please apply a lower feed (60% of the calculated feed rate or less). When drilling, please set the feed in the axial direction at 0.2mm/rev or less. 9 The long chips generated can disperse, ensure that adequate safety precautions are taken. CD CL £ DCX (mm) DC (mm) APMX (mm) Ramping Helical Drilling Обозначение Order Number RMPX L (mm) Required distance for X mm depth DH (mm) AZ (mm) r FT/JM/ST Breaker JL Breaker X=1 X=1.2 X=1.5 X=2 Min Max AJX06R162 16 8 1 0.6 3° 19.1 - - 23 29 0.3 AJX06R172 17 9 1 0.6 2° 30' 22.9 - - 25 31 0.3 AJX06R203 20 12 1 0.6 CO o 38.2 - - 31 37 0.3 AJX06R223 22 14 1 0.6 1° 57.3 - - 35 41 0.3 AJX08R202 20 11 1.5 0.9 3“ 30' 16.3 19.6 24.5 - 27 36 0.5 AJX08R222 22 13 1.5 0.9 3° 19.1 22.9 28.6 - 31 40 0.5 AJX08R253 25 16 1.5 0.9 2= 28.6 34.4 43 - 37 46 0.5 CD CL c. AJX08R283 28 19 1.5 0.9 CM 33.7 40.4 50.5 - 43 52 0.5 AJX09R252 25 14 2 1.2 4° 14.3 17.2 21.5 28.6 33 46 1 1 AJX09R282 28 17 2 1.2 3° 19.1 22.9 28.6 38.1 39 52 1 o CO AJX09R303 30 19 2 1.2 2° 42' 21.2 25.4 31.8 42.4 43 56 1 'cd CL >1 AJX09R323 32 21 2 1.2 2“ 30' 22.9 27.5 34.4 45.8 47 60 1 c AJX09R353 35 24 2 1.2 2° 28.6 34.4 43 57.3 53 66 1 ro C to AJX09R404 40 29 2 1.2 o CO 38.2 45.8 57.3 76.4 63 76 1 AJX12R302 30 18 2 1.2 4° 30' 12.7 15.2 19 25.4 39 56 1.5 AJX12R322 32 20 2 1.2 4° 14.3 17.2 21.4 28.6 41 60 1.5 AJX12R352 35 23 2 1.2 3° 30' 16.3 19.6 24.5 32.7 47 66 1.5 AJX12R402 40 28 2 1.2 3“ 19.1 22.9 28.6 38.2 57 76 1.5 AJX12R403 40 28 2 1.2 3° 19.1 22.9 28.6 38.2 57 76 1.5 AJX14R503 50 38 2 1.2 4° 12' 13.6 16.3 20.4 27.2 72 96 2 AJX14R634 63 51 2 1.2 2° 48' 20.4 24.5 30.7 40.9 98 122 2 AJX09-050 50 40 2 1.2 1° 06' 52.1 62.5 78.1 104.2 83 96 1 AJX09R05005B 50 40 2 1.2 1°06' 52.1 62.5 78.1 104.2 83 96 1 AJX12-050 50 38 2 1.2 2° 28.6 34.4 43 57.3 77 96 1.5 AJXR050 50 38 2 1.2 2° 28.6 34.4 43 57.3 77 96 1.5 AJX12-063 63 51 2 1.2 CO o 38.2 45.8 57.3 76.4 103 122 1.5 0) AJXR063 63 51 2 1.2 o CO 38.2 45.8 57.3 76.4 103 122 1.5 CL AJXR080 80 68 2 1.2 1° 06' 52.1 62.5 78.1 104.2 137 156 1.5 o .a AJXR100 100 88 2 1.2 0° 48' 71.6 85.9 107.4 143.2 177 196 1.5 < AJX14-063 63 51 2 1.2 2° 48' 20.4 24.5 30.7 40.9 98 122 2 AJXR063 63 51 2 1.2 2“ 48' 20.4 24.5 30.7 40.9 98 122 2 AJXR080 80 68 2 1.2 1° 48' 31.8 38.2 47.7 63.6 132 156 2 AJXR100 100 88 2 1.2 1° 12' 47.7 57.3 71.6 95.5 172 196 2 AJXR125 125 113 2 1.2 0° 48' 71.6 85.9 107.4 143.2 222 246 2 AJXR160 160 148 2 1.2 0° 30' 114.6 137.5 171.9 229.2 292 316 2 DCX = Maximum hole diameter DC = Cutting diameter DH = Desired hole diameter APMX = Max. depth of cut RMPX = Ramping angle AZ = Plunge depth maximum Mitsubishi Materials 1499 INDEXABLE MILLING
