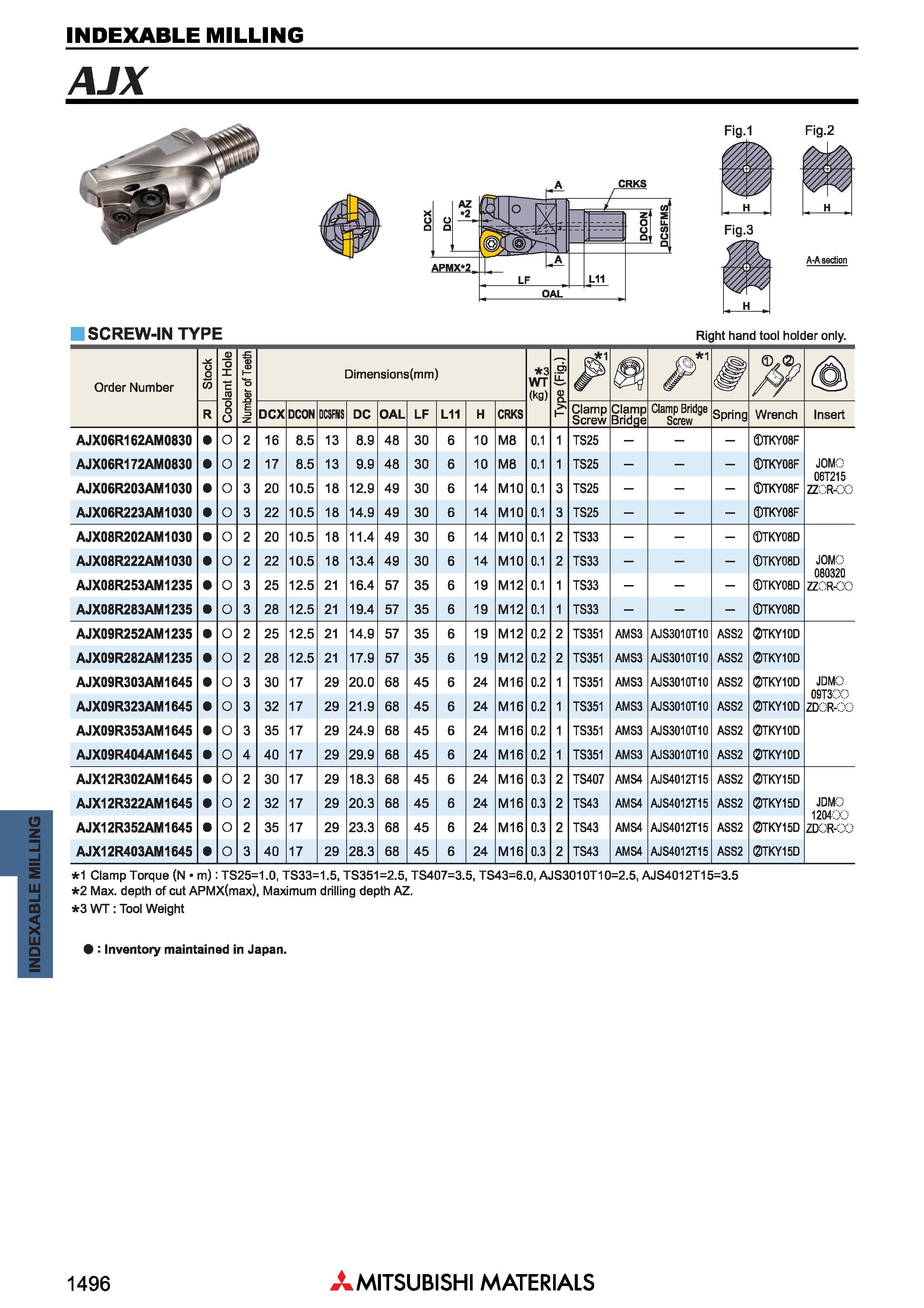

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AJX Fig.1 Fig.2 SCREW-IN TYPE Right hand tool holder only. Обозначение Order Number o 5 W 0 X c ID -E "a CD I o a3 Dimensions(mm) 3 WT (kg) Ol L. 0) R O E =3 z DCX DCON CSFIUS DC OAL LF L11 H CRKS £ Clamp Screw Clamp Bridge Clamp Bridge Screw Spring Wrench Insert AJX06R162AM0830 O 2 16 8.5 13 8.9 48 30 6 10 M8 0.1 1 TS25 - - (DTKY08F AJX06R172AM0830 o 2 17 8.5 13 9.9 48 30 6 10 M8 0.1 1 TS25 - - TKY08F JOMO 06T215 ZZOR-GQ AJX06R203AM1030 o 3 20 10.5 18 12.9 49 30 6 14 M10 0.1 3 TS25 - - TKY08F AJX06R223AM1030 o 3 22 10.5 18 14.9 49 30 6 14 M10 0.1 3 TS25 - - (DTKY08F AJX08R202AM1030 o 2 20 10.5 18 11.4 49 30 6 14 M10 0.1 2 TS33 - - TKY08D AJX08R222AM1030 o 2 22 10.5 18 13.4 49 30 6 14 M10 0.1 2 TS33 - - TKY08D JOMO 080320 ZZ0R-00 AJX08R253AM1235 o 3 25 12.5 21 16.4 57 35 6 19 M12 0.1 1 TS33 - - TKY08D AJX08R283AM1235 o 3 28 12.5 21 19.4 57 35 6 19 M12 0.1 1 TS33 - - (DTKY08D AJX09R252AM1235 o 2 25 12.5 21 14.9 57 35 6 19 M12 0.2 2 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD AJX09R282AM1235 o 2 28 12.5 21 17.9 57 35 6 19 M12 0.2 2 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD AJX09R303AM1645 o 3 30 17 29 20.0 68 45 6 24 M16 0.2 1 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD JDMO 09T300 ZDOR-OO AJX09R323AM1645 o 3 32 17 29 21.9 68 45 6 24 M16 0.2 1 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD AJX09R353AM1645 o 3 35 17 29 24.9 68 45 6 24 M16 0.2 1 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD AJX09R404AM1645 o 4 40 17 29 29.9 68 45 6 24 M16 0.2 1 TS351 AM S3 AJS3010T10 ASS2 0TKY1OD AJX12R302AM1645 o 2 30 17 29 18.3 68 45 6 24 M16 0.3 2 TS407 AMS4 AJS4012T15 ASS2 0TKY15D AJX12R322AM1645 o 2 32 17 29 20.3 68 45 6 24 M16 0.3 2 TS43 AMS4 AJS4012T15 ASS2 0TKY15D JDMO 120400 ZDOR-OO AJX12R352AM1645 o 2 35 17 29 23.3 68 45 6 24 M16 0.3 2 TS43 AMS4 AJS4012T15 ASS2 0TKY15D AJX12R403AM1645 o 3 40 17 29 28.3 68 45 6 24 M16 0.3 2 TS43 AMS4 AJS4012T15 ASS2 0TKY15D 1 Clamp Torque (N m): TS25=1.0, TS33= 2 Max. depth of cut APMX(max), Maximum 3 WT Tool Weight 1.5, TS351=2.5, TS407=3.5, TS43=6.0, AJS3010T10=2.5, AJS4012T15=3.5 drilling depth AZ. Inventory maintained in Japan. 1496 Mitsubishi Materials
