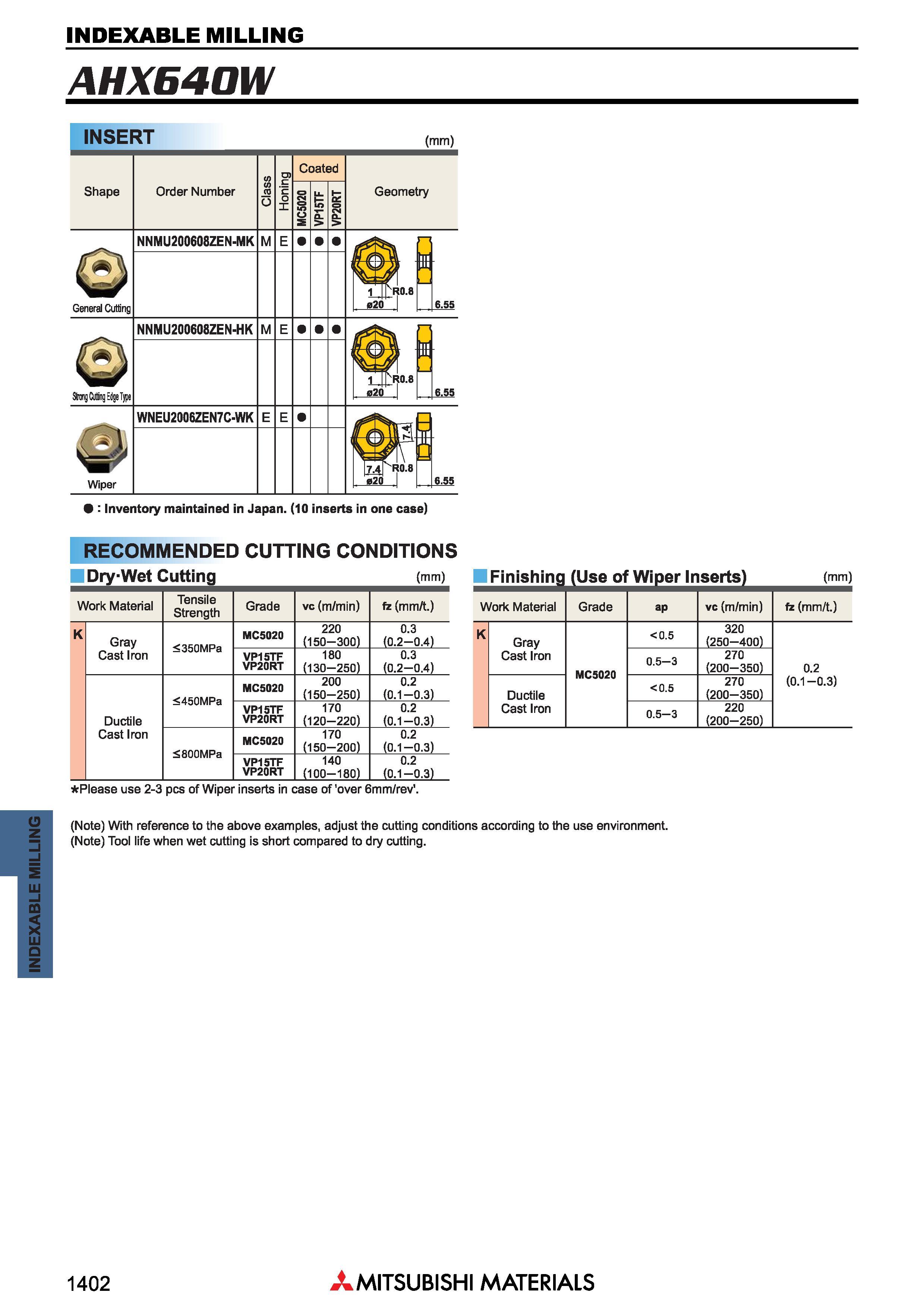

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AHXE40W INSERT Shape Обозначение Order Number Class Honing Coated Geometry MC5020 VP15TF VP20RT General Cutting NNMU200608ZEN-MK M E 020 I rn 01 6.55 StrmgCutSng EdgeType NNMU200608ZEN-HK M E 020 I rn to 6.55 Wiper WNEU2006ZEN7C-WK E E 020 i 6.55 Inventory maintained in Japan. (10 inserts in one case) Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Dry-Wet Cutting (mm) Finishing (Use ol Wiper Inserts) (mm) Обрабатываемые материалы Work Material Tensile Strength Grade vc (m/min) fz (mm/1.) Обрабатываемые материалы Work Material Grade ap vc (m/min) fz (mm/t.) K Gray Cast Iron <350MPa MC5020 220 (150-300) 0.3 (0.2 0.4) K Gray Cast Iron MC5020 <0.5 320 (250-400) 0.2 (0.1 -0.3) VP15TF VP20RT 180 (130-250) 0.3 (0.2 0.4) 0.5-3 270 (200-350) Ductile Cast Iron <450MPa MC5020 200 (150-250) 0.2 (0.1-0.3) Ductile Cast Iron <0.5 270 (200-350) VP15TF VP20RT 170 (120-220) 0.2 (0.1-0.3) 0.5-3 220 (200-250) 5800MPa MC5020 170 (150-200) 0.2 (0.1-0.3) VP15TF VP20RT 140 (100-180) 0.2 (0.1-0.3) Please use 2-3 pcs of Wiper inserts in case of 'over 6mm/rev'. (Note) With reference to the above examples, adjust the cutting conditions according to the use environment. (Note) Tool life when wet cutting is short compared to dry cutting. 1402 Mitsubishi Materials
