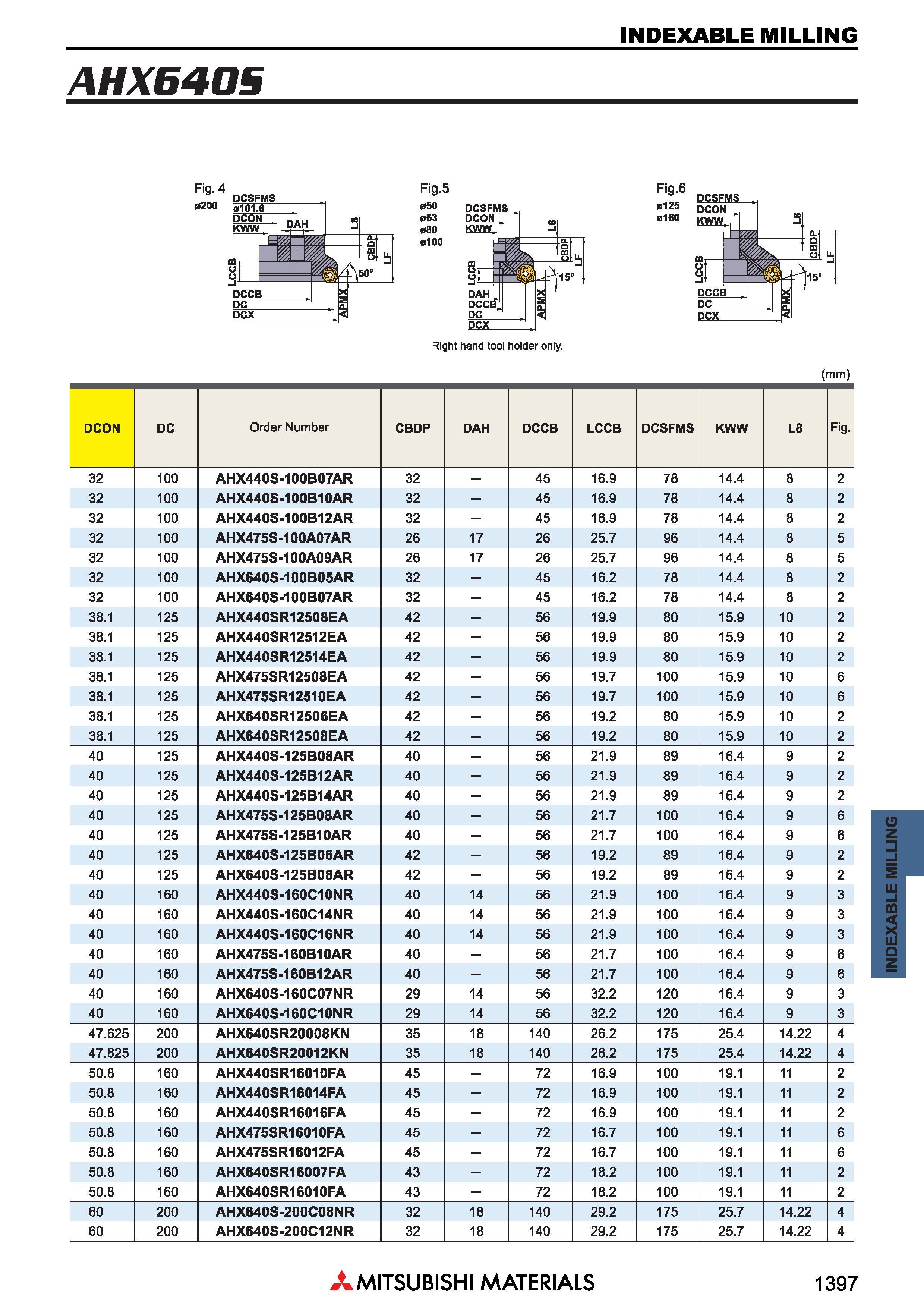

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AHXE405 Fig. 4 0200 Fig.6 0125 0160 Right hand tool holder only. (mm) DCON DC Обозначение Order Number CBDP DAH DCCB LCCB DCSFMS KWW L8 Fig. 32 100 AHX440S-100B07AR 32 45 16.9 78 14.4 8 2 32 100 AHX440S-100B10AR 32 - 45 16.9 78 14.4 8 2 32 100 AHX440S-100B12AR 32 - 45 16.9 78 14.4 8 2 32 100 AHX475S-100A07AR 26 17 26 25.7 96 14.4 8 5 32 100 AHX475S-100A09AR 26 17 26 25.7 96 14.4 8 5 32 100 AHX640S-100B05AR 32 45 16.2 78 14.4 8 2 32 100 AHX640S-100B07AR 32 45 16.2 78 14.4 8 2 38.1 125 AHX440SR12508EA 42 - 56 19.9 80 15.9 10 2 38.1 125 AHX440SR12512EA 42 - 56 19.9 80 15.9 10 2 38.1 125 AHX440SR12514EA 42 - 56 19.9 80 15.9 10 2 38.1 125 AHX475SR12508EA 42 56 19.7 100 15.9 10 6 38.1 125 AHX475SR12510EA 42 56 19.7 100 15.9 10 6 38.1 125 AHX640SR12506EA 42 56 19.2 80 15.9 10 2 38.1 125 AHX640SR12508EA 42 56 19.2 80 15.9 10 2 40 125 AHX440S-125B08AR 40 56 21.9 89 16.4 9 2 40 125 AHX440S-125B12AR 40 - 56 21.9 89 16.4 9 2 40 125 AHX440S-125B14AR 40 56 21.9 89 16.4 9 2 40 125 AHX475S-125B08AR 40 56 21.7 100 16.4 9 6 40 125 AHX475S-125B10AR 40 56 21.7 100 16.4 9 6 40 125 AHX640S-125B06AR 42 - 56 19.2 89 16.4 9 2 40 125 AHX640S-125B08AR 42 - 56 19.2 89 16.4 9 2 40 160 AHX440S-160C10N R 40 14 56 21.9 100 16.4 9 3 40 160 AHX440S-160C14NR 40 14 56 21.9 100 16.4 9 3 40 160 AHX440S-160C16N R 40 14 56 21.9 100 16.4 9 3 40 160 AHX475S-160B1 OAR 40 56 21.7 100 16.4 9 6 40 160 AHX475S-160B12AR 40 - 56 21.7 100 16.4 9 6 40 160 AHX640S-160C07N R 29 14 56 32.2 120 16.4 9 3 40 160 AHX640S-160C1 ON R 29 14 56 32.2 120 16.4 9 3 47.625 200 AHX640SR20008KN 35 18 140 26.2 175 25.4 14.22 4 47.625 200 AHX640SR20012KN 35 18 140 26.2 175 25.4 14.22 4 50.8 160 AHX440SR16010FA 45 72 16.9 100 19.1 11 2 50.8 160 AHX440SR16014FA 45 72 16.9 100 19.1 11 2 50.8 160 AHX440SR16016FA 45 72 16.9 100 19.1 11 2 50.8 160 AHX475SR16010FA 45 - 72 16.7 100 19.1 11 6 50.8 160 AHX475SR16012FA 45 - 72 16.7 100 19.1 11 6 50.8 160 AHX640SR16007FA 43 - 72 18.2 100 19.1 11 2 50.8 160 AHX640SR16010FA 43 - 72 18.2 100 19.1 11 2 60 200 AHX640S-200C08NR 32 18 140 29.2 175 25.7 14.22 4 60 200 AHX640S-200C12NR 32 18 140 29.2 175 25.7 14.22 4 Mitsubishi Materials 1397 INDEXABLE MILLING
