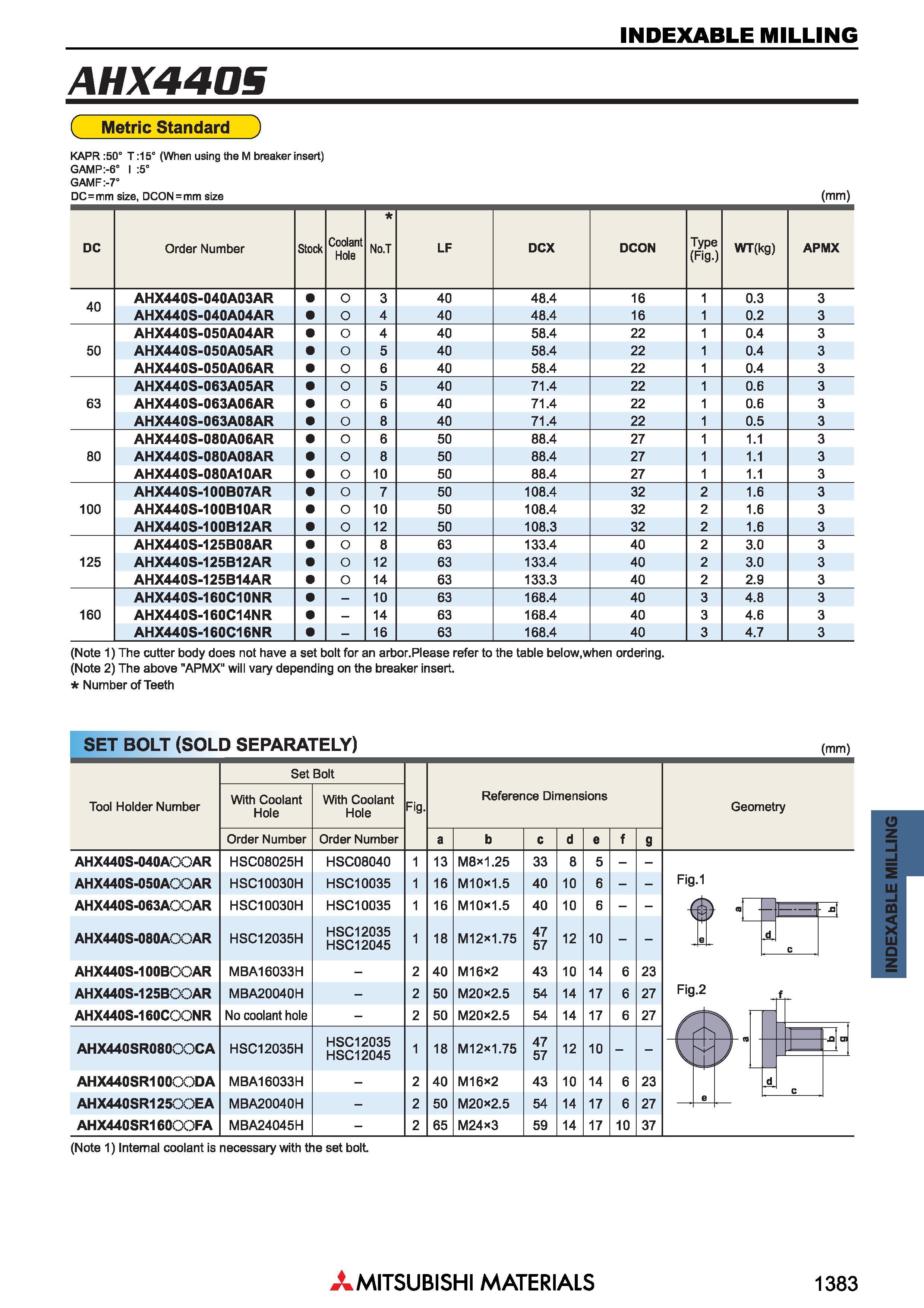

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AHX440S ( Metric Standard ) KAPR :50° T :15° (When using the M breaker insert) GAMP:-6° I :5° GAMF:-7° DC=mm size, DCON = mm size (mm) DC Обозначение Order Number Stock Coolant Hole No.T LF DCX DCON Type (Fig.) WT(kg) APMX 40 AHX440S-040A03AR O 3 40 48.4 16 1 0.3 3 AHX440S-040A04AR O 4 40 48.4 16 1 0.2 3 AHX440S-050A04AR O 4 40 58.4 22 1 0.4 3 50 AHX440S-050A05AR O 5 40 58.4 22 1 0.4 3 AHX440S-050A06AR O 6 40 58.4 22 1 0.4 3 AHX440S-063A05AR O 5 40 71.4 22 1 0.6 3 63 AHX440S-063A06AR O 6 40 71.4 22 1 0.6 3 AHX440S-063A08AR O 8 40 71.4 22 1 0.5 3 AHX440S-080A06AR O 6 50 88.4 27 1 1.1 3 80 AHX440S-080A08AR O 8 50 88.4 27 1 1.1 3 AHX440S-080A1 OAR O 10 50 88.4 27 1 1.1 3 AHX440S-100B07AR O 7 50 108.4 32 2 1.6 3 100 AHX440S-100B10AR O 10 50 108.4 32 2 1.6 3 AHX440S-100B12AR O 12 50 108.3 32 2 1.6 3 AHX440S-125B08AR O 8 63 133.4 40 2 3.0 3 125 AHX440S-125B12 AR O 12 63 133.4 40 2 3.0 3 AHX440S-125B14AR O 14 63 133.3 40 2 2.9 3 AHX440S-160C10NR - 10 63 168.4 40 3 4.8 3 160 AHX440S-160C14N R - 14 63 168.4 40 3 4.6 3 AHX440S-160C16NR - 16 63 168.4 40 3 4.7 3 (Note 1) The cutter body does not have a set bolt for an arbor.Please refer to the table below,when ordering. (Note 2) The above "APMX" will vary depending on the breaker insert. Количество режущих зубьев Number of Teeth SET BOLT (SOLD SEPARATELY) (mm) Tool Holder Number Set Bolt With Coolant Hole Обозначение Order Number With Coolant Hole Fig- Обозначение Order Number Reference Dimensions Geometry AHX440S-040AQGAR AHX440S-050AOOAR AHX440S-Q63AOOAR AHX440S-1OOBOOAR AHX440S-125BOOAR AHX440S-16OCOONR HSC08025H HSC10030H HSC10030H HSC12035H MBA16033H MBA20040H No coolant hole HSC08040 HSC10035 HSC10035 HSC12035 HSC12045 13 16 16 18 40 50 50 M8 1.25 M10x1.5 M10x1.5 M12x1.75 M16x2 M20x2.5 M20x2.5 33 40 40 47 57 43 54 54 5 6 6 10 14 17 17 AHX440SR08000CA AHX440SR12500EA AHX440SR16000FA HSC12035H MBA16033H MBA20040H MBA24045H HSC12035 HSC12045 18 40 50 65 M12x1.75 M16x2 M20x2.5 M24x3 47 57 43 54 59 10 14 17 17 6 6 10 Fig.1 Fig.2 (Note 1) Internal coolant is necessary with the set bolt. Mitsubishi Materials 1383 INDEXABLE MILLING
