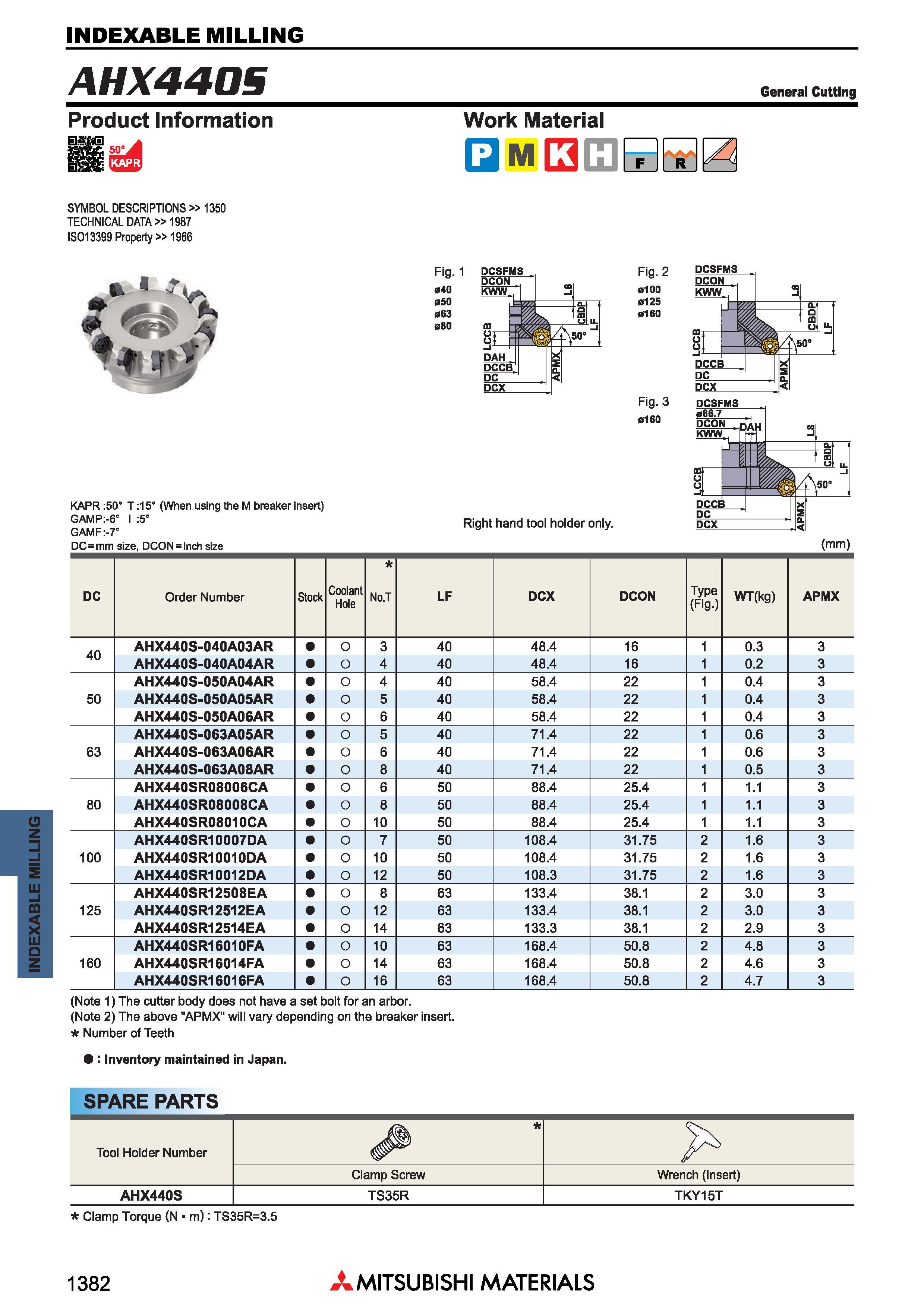

Фрезы Mitsubishi со сменными режущими пластинами INDEXABLE MILLING _ AHX4405 General Cutting Product Information £4 Обрабатываемые материалы Work Material m rnnni SYMBOL DESCRIPTIONS 1350 TECHNICAL DATA 1987 ISO 13399 Property 1966 1 "V £ A v w DCSFMS Fig. 2 0100 0125 0160 Fig. 3 0I6O KAPR :50° T :15° (When using the M breaker insert) GAMP:-6° I :5° GAMF:-7° DC=mm size, DCON = Inch size Right hand tool holder only. (mm) DC Обозначение Order Number Stock Coolant Hole No.T LF DCX DCON Type (Fig.) WT(kg) APMX 40 AHX440S-040A03AR O 3 40 48.4 16 1 0.3 3 AHX440S-040A04AR O 4 40 48.4 16 1 0.2 3 AHX440S-050A04AR O 4 40 58.4 22 1 0.4 3 50 AHX440S-050A05AR O 5 40 58.4 22 1 0.4 3 AHX440S-050A06AR O 6 40 58.4 22 1 0.4 3 AHX440S-063A05AR O 5 40 71.4 22 1 0.6 3 63 AHX440S-063A06AR O 6 40 71.4 22 1 0.6 3 AHX440S-063A08AR O 8 40 71.4 22 1 0.5 3 AHX440SR08006CA O 6 50 88.4 25.4 1 1.1 3 80 AHX440SR08008CA O 8 50 88.4 25.4 1 1.1 3 AHX440SR0801 OCA O 10 50 88.4 25.4 1 1.1 3 AHX440SR10007DA O 7 50 108.4 31.75 2 1.6 3 100 AHX440SR10010DA O 10 50 108.4 31.75 2 1.6 3 AHX440SR10012DA O 12 50 108.3 31.75 2 1.6 3 AHX440SR12508EA O 8 63 133.4 38.1 2 3.0 3 125 AHX440SR12512EA O 12 63 133.4 38.1 2 3.0 3 AHX440SR12514EA O 14 63 133.3 38.1 2 2.9 3 AHX440SR16010FA O 10 63 168.4 50.8 2 4.8 3 160 AHX440SR16014FA O 14 63 168.4 50.8 2 4.6 3 AHX440SR16016FA O 16 63 168.4 50.8 2 4.7 3 (Note 1) The cutter body does not have a set bolt for an arbor. (Note 2) The above "APMX" will vary depending on the breaker insert. Количество режущих зубьев Number of Teeth Inventory maintained in Japan. Запасные части для металлорежущего инструмента SPARE PARTS Tool Holder Number Clamp Screw Wrench (Insert) AHX440S TS35R TKY15T Clamp Torque (N m): TS35R=3.5 1382 Mitsubishi Materials
