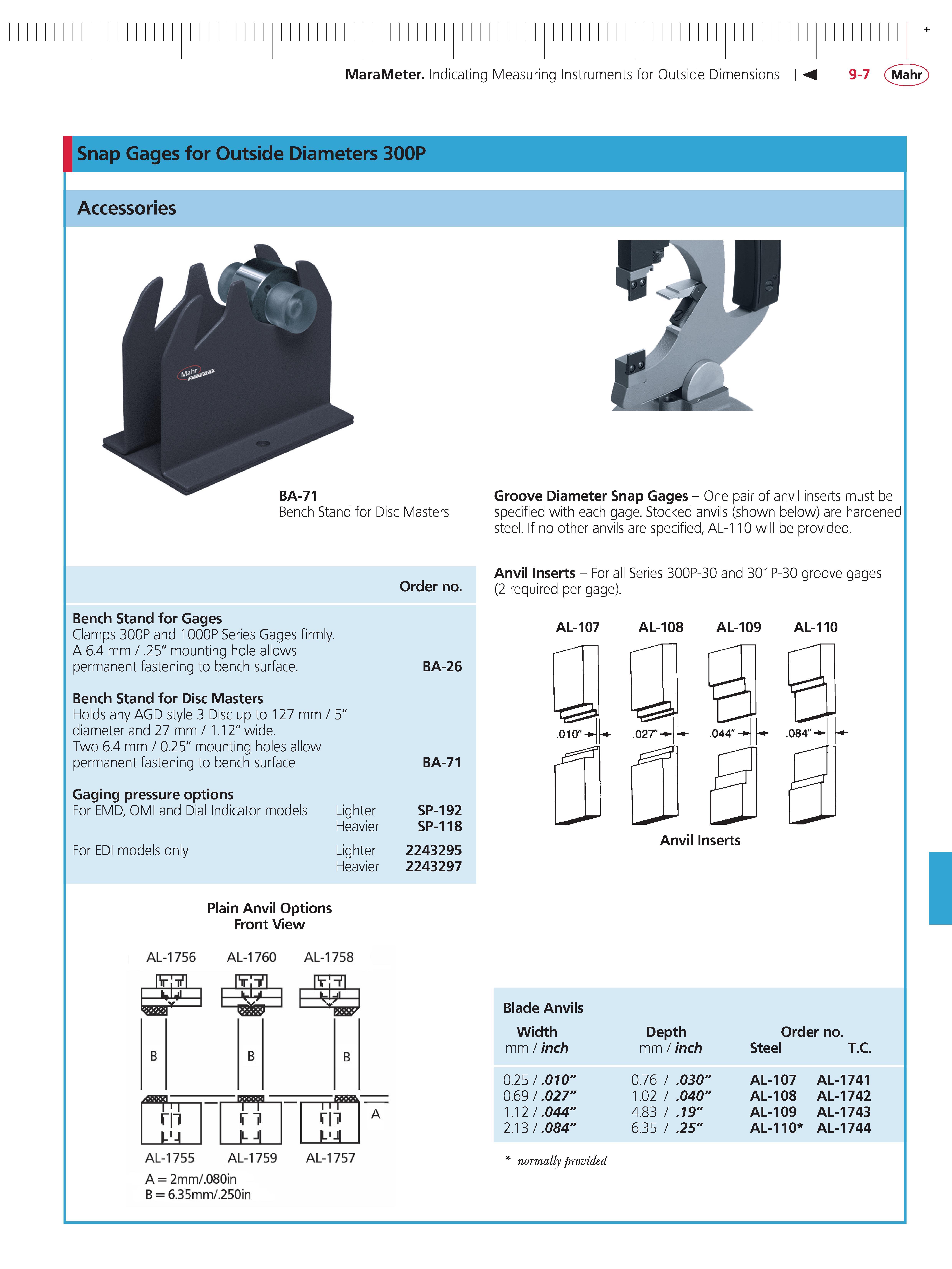

MaraMeter Indicating Measuring Instruments for Outside Dimensions M 9-7 Mahr Snap Gages for Outside Diameters 300P Accessories BA-71 Bench Stand for Disc Masters Order no. Bench Stand for Gages Clamps 300P and 1000P Series Gages firmly. A 6.4 mm .25" mounting hole allows permanent fastening to bench surface. BA-26 Bench Stand for Disc Masters Holds any AGD style 3 Disc up to 127 mm diameter and 27 mm 1.12" wide. Two 6.4 mm 0.25" mounting holes allow permanent fastening to bench surface 5" BA-71 Gaging pressure options For EMD OMI and Dial Indicator models Lighter Heavier SP-192 SP-118 For EDI models only Lighter Heavier 2243295 2243297 Groove Diameter Snap Gages - One pair of anvil inserts must be specified with each gage. Stocked anvils (shown below) are hardened steel. If no other anvils are specified AL-110 will be provided. Anvil Inserts - For all Series 300P-30 and 301P-30 groove gages (2 required per gage). AL-107 AL-108 AL-109 AL-110 Anvil Inserts Plain Anvil Options Front View Blade Anvils Width Depth Order no. mm inch mm inch Steel T.C. 0.25 .010" 0.76 .030" AL-107 AL-1741 0.69 .027" 1.02 .040" AL-108 AL-1742 1.12 .044" 4.83 .19" AL-109 AL-1743 2.13 .084" 6.35 .25" AL-110 AL-1744 normally provided
