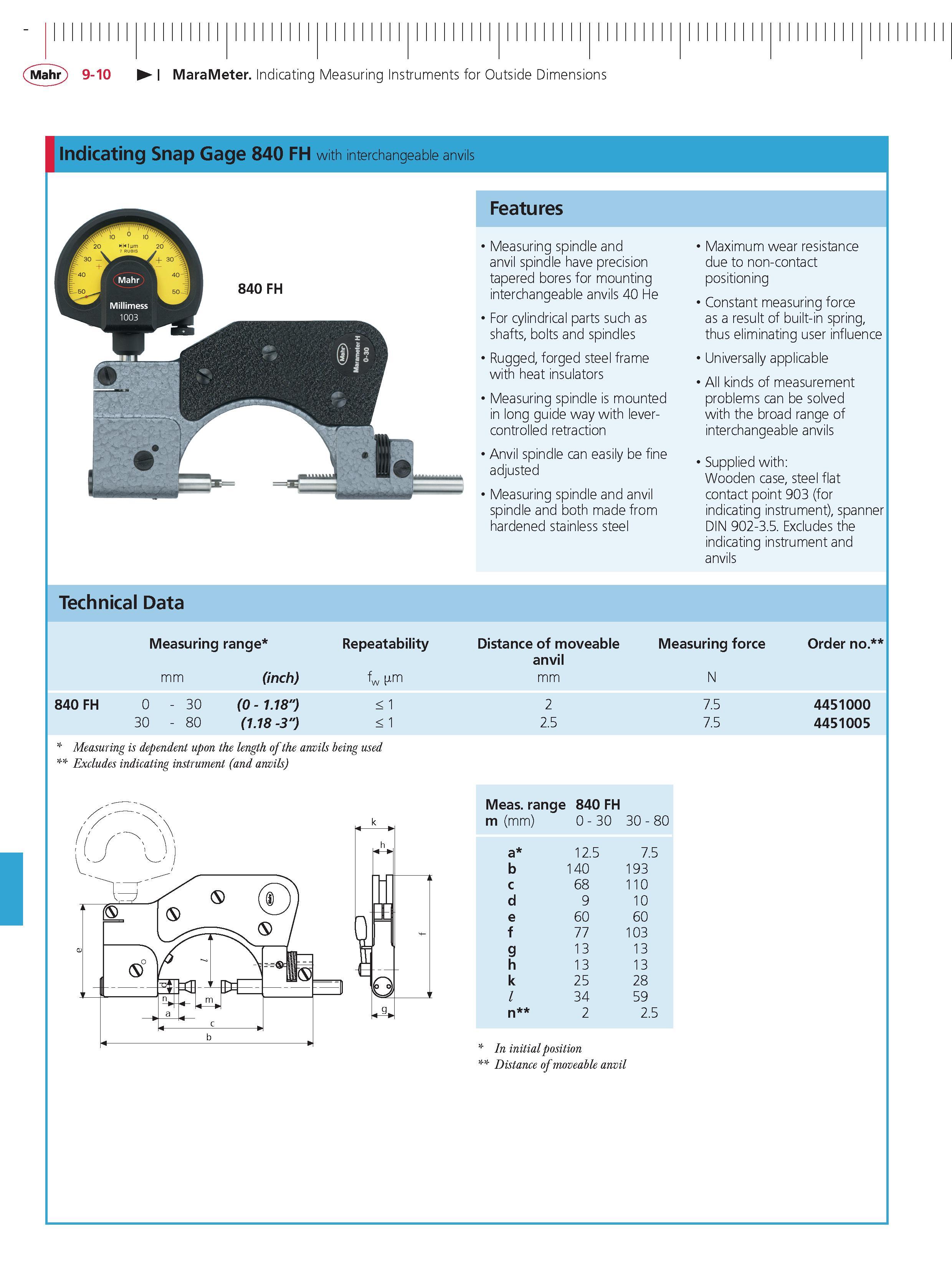

Mahr 9-10 MaraMeter Indicating Measuring Instruments for Outside Dimensions Indicating Snap Gage 840 FH with interchangeable anvils Features Measuring spindle and anvil spindle have precision tapered bores for mounting interchangeable anvils 40 He For cylindrical parts such as shafts bolts and spindles Rugged forged steel frame with heat insulators Measuring spindle is mounted in long guide way with lever-controlled retraction Anvil spindle can easily be fine adjusted Measuring spindle and anvil spindle and both made from hardened stainless steel Maximum wear resistance due to non-contact positioning Constant measuring force as a result of built-in spring thus eliminating user influence Universally applicable All kinds of measurement problems can be solved with the broad range of interchangeable anvils Supplied with Wooden case steel flat contact point 903 (for indicating instrument) spanner DIN 902-3.5. Excludes the indicating instrument and anvils Technical Data Measuring range (inch) 840 FH 0 30 mm - 30 - 80 (0 -1.18") (1.18 -3") Repeatability fw m 1 1 Distance of moveable anvil mm 2 2.5 Measuring force N 7.5 7.5 Order no. 4451000 4451005 Measuring is dependent upon the length of the anvils being used Excludes indicating instrument (and anvils) Meas. range H F 0 4 8 m (mm) 0 - 30 30 - 80 a 1 2.5 7.5 b 1 40 1 93 c 68 110 d 9 10 e 60 60 f 77 1 03 g 13 13 h 13 13 k 25 28 l 34 59 n 2 2.5 In initial position ' Distance of moveable anvil
