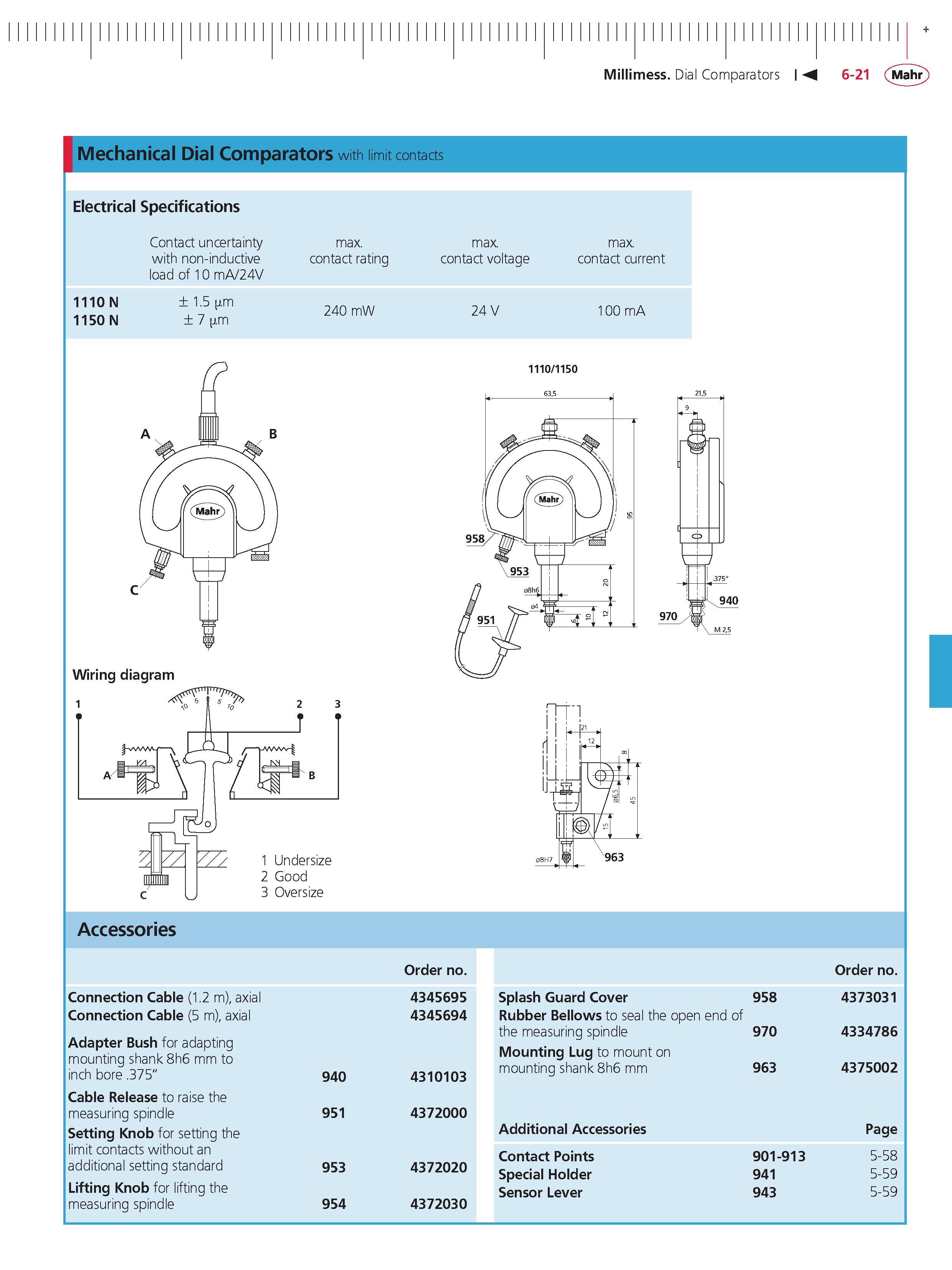

Millimess Dial Comparators M 6-21 Mahr Mechanical Dial Comparators with limit contacts Electrical Specifications Contact uncertainty max. max. max. with non-inductive contact rating contact voltage contact current load of 10 mA 24V 1110 N 1.5 m 240 mW 24 V 100 mA 1150 N 7 m 1110 1150 wiring diagram 1 Undersize 2 Good 3 Oversize F 1 j i 21 12 r 45 W H7 963 Accessories Connection Cable (1.2 m) axial Connection Cable (5 m) axial Adapter Bush for adapting mounting shank 8h6 mm to inch bore .375" Cable Release to raise the measuring spindle Setting Knob for setting the limit contacts without an additional setting standard Lifting Knob for lifting the measuring spindle 940 951 953 954 order no. 4345695 4345694 4310103 4372000 4372020 4372030 Splash Guard Cover 958 Rubber Bellows to seal the open end of the measuring spindle 970 Mounting Lug to mount on mounting shank 8h6 mm 963 Additional Accessories Contact Points Special Holder Sensor Lever 901-913 941 943 order no. 4373031 4334786 4375002 Page 5-58 5-59 5-59 +
