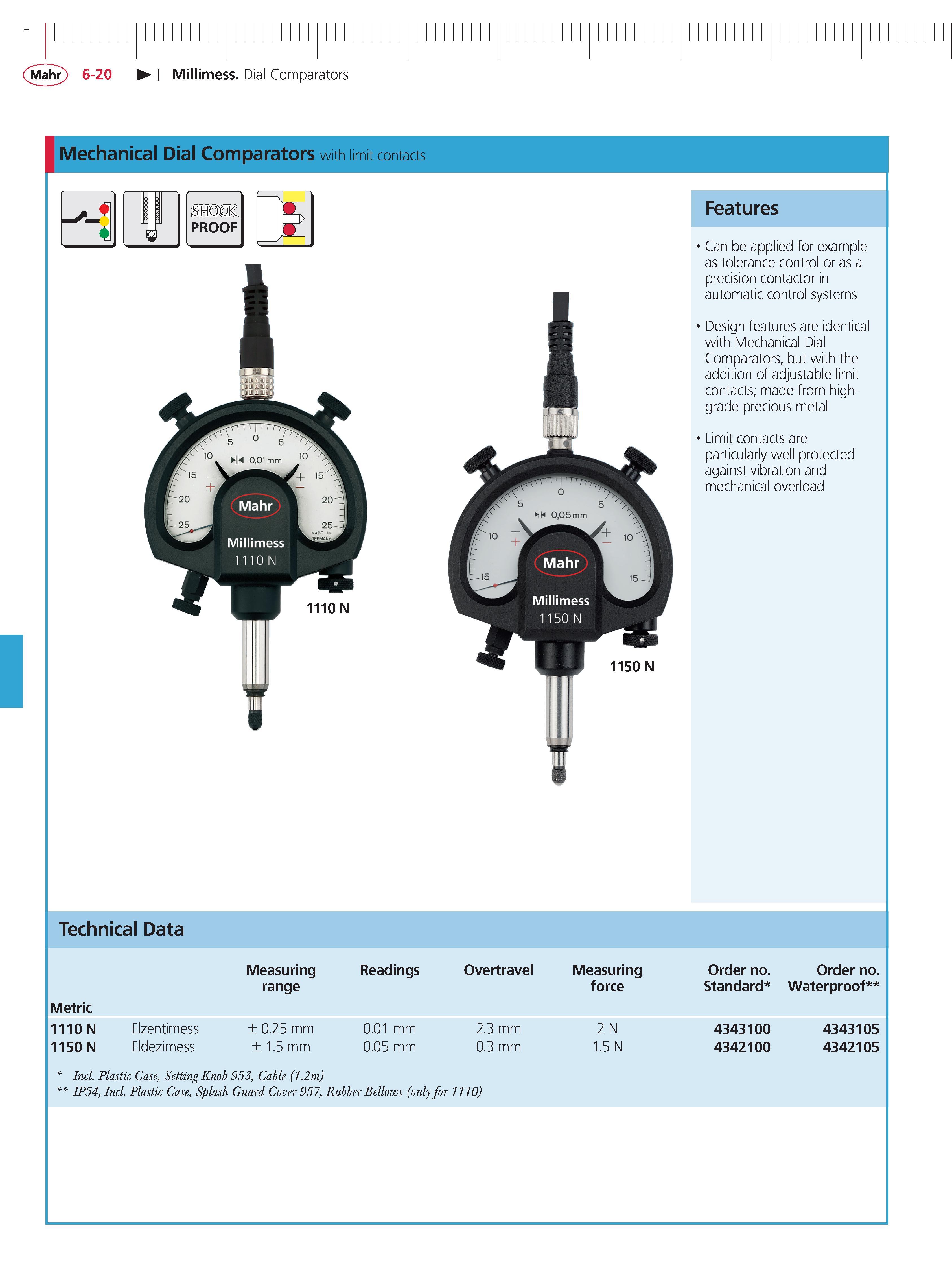

Mahr 6-20 Millimess Dial Comparators Mechanical Dial Comparators with limit contacts PROOF Features Can be applied for example as tolerance control or as a precision contactor in automatic control systems Design features are identical with Mechanical Dial Comparators but with the addition of adjustable limit contacts; made from high-grade precious metal Limit contacts are particularly well protected against vibration and mechanical overload Technical Data Metric 1110 N 1150 N Elzentimess Eldezimess Measuring range 0.25 mm 1.5 mm Readings 0.01 mm 0.05 mm overtravel 2.3 mm 0.3 mm Measuring force 2 N 1.5 N order no. order no. Standard waterproof 4343100 4342100 4343105 4342105 f Incl. Plastic Case Setting Knob 953 Cable (1.2m) IP54 Incl. Plastic Case Splash Guard Cover 957 Rubber Bellows (only for 1110)
