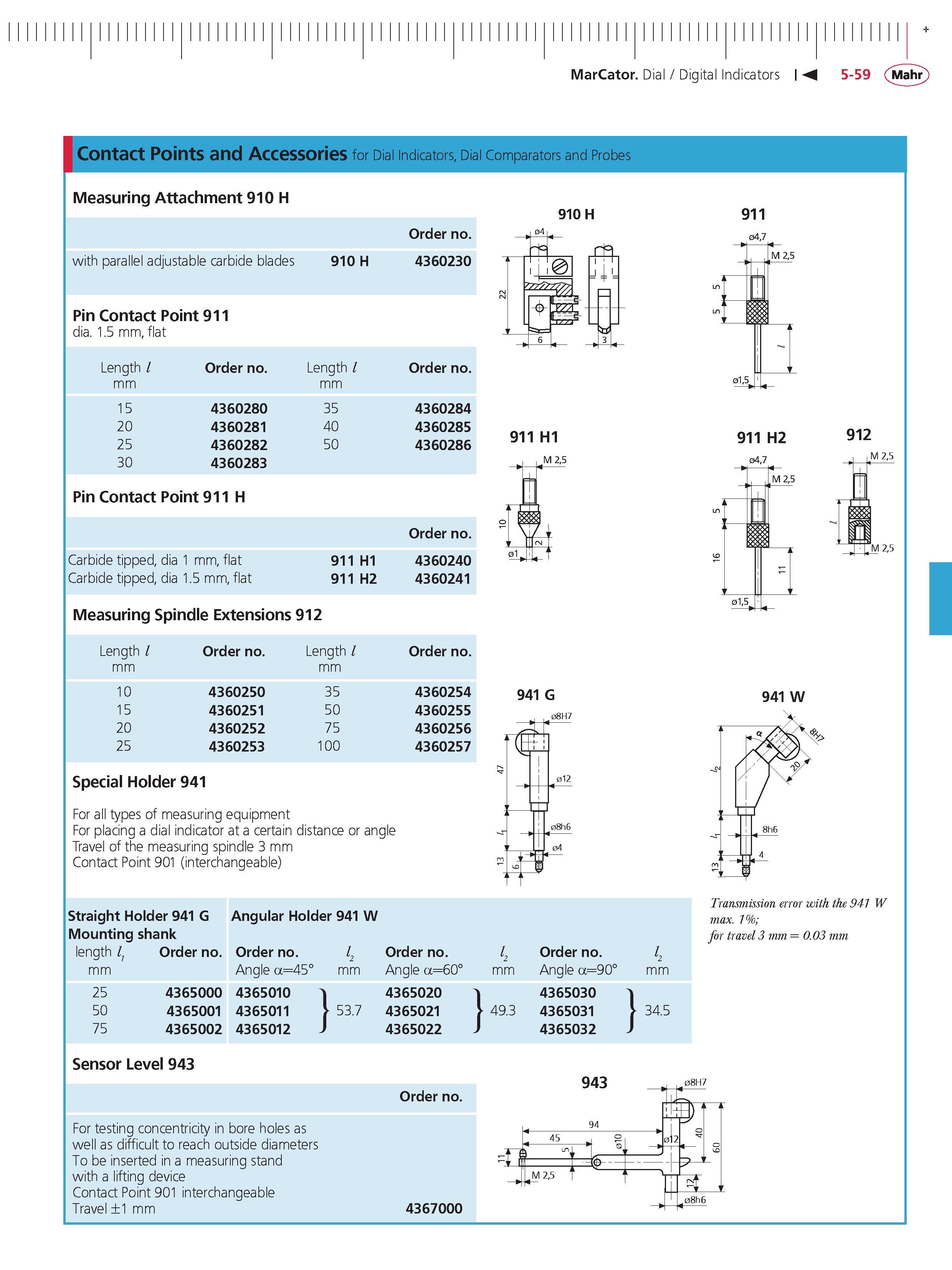

MarCator Dial Digital Indicators M 5-59 Mahr + Contact Points and Accessories for Dial Indicators Dial Comparators and Probes with parallel adjustable carbide blades 910 H Order no. 4360230 Pin Contact Point 911 dia. 1.5 mm flat Length Order no. Length l Order no. mm mm 15 4360280 35 4360284 20 4360281 40 4360285 25 4360282 50 4360286 30 4360283 Pin Contact Point 911 H Order no. Carbide tipped dia 1 mm flat 911 H1 4360240 Carbide tipped dia 1.5 mm flat 911 H2 4360241 Measuring Attachment 910 H Measuring Spindle Extensions 912 Length l mm Order no. Length l mm Order no. 10 4360250 35 4360254 15 4360251 50 4360255 20 4360252 75 4360256 25 4360253 100 4360257 Special Holder 941 For all types of measuring equipment For placing a dial indicator at a certain distance or angle Travel of the measuring spindle 3 mm Contact Point 901 (interchangeable) Straight Holder 941 G Angular Holder 941 W Mounting shank length l1 Order no. Order no. mm Angle a45 25 4365000 4365010 50 4365001 4365011 75 4365002 4365012 Order no. Sensor Level 943 mm Angle a60 4365020 53.7 4365021 4365022 Order no. 910 H r. 6 4' 941 G l2 Order no. mm Angle a90 4365030 49.3 4365031 4365032 2 mm 34.5 911 H2 047 912 L M 25 t a v 015 941 W Transmission error with the 941 W max. 1%; for travel 3 mm 0.03 mm For testing concentricity in bore holes as well as difficult to reach outside diameters To be inserted in a measuring stand with a lifting device Contact Point 901 interchangeable Travel 1 mm 4367000 08H7
