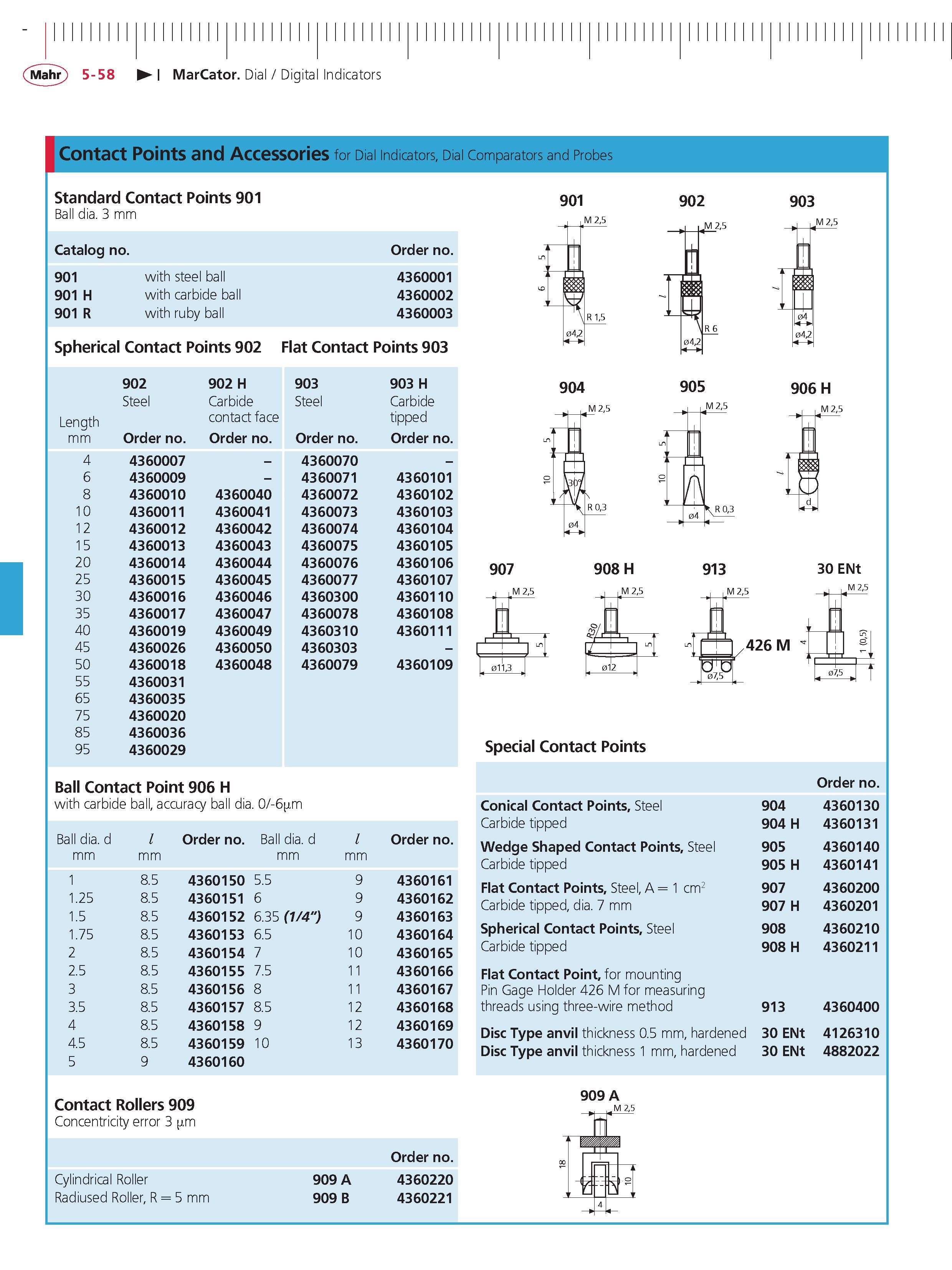

Mahr 5-58 MarCator Dial Digital Indicators Contact Points and Accessories for Dial Indicators Dial Comparators and Probes Catalog no. order no. 901 with steel ball 4360001 901 H with carbide ball 4360002 901 R with ruby ball 4360003 Standard Contact Points 901 Ball dia. 3 mm Spherical Contact Points 902 Flat Contact Points 903 902 902 H 903 903 H Steel Carbide Steel Carbide Length contact face tipped mm order no. order no. order no. order no. 4 4360007 - 4360070 - 6 4360009 - 4360071 4360101 8 4360010 4360040 4360072 4360102 10 4360011 4360041 4360073 4360103 12 4360012 4360042 4360074 4360104 15 4360013 4360043 4360075 4360105 20 4360014 4360044 4360076 4360106 25 4360015 4360045 4360077 4360107 30 4360016 4360046 4360300 4360110 35 4360017 4360047 4360078 4360108 40 4360019 4360049 4360310 4360111 45 4360026 4360050 4360303 - 50 4360018 4360048 4360079 4360109 55 4360031 65 4360035 75 4360020 85 4360036 95 4360029 Ball Contact Point 906 H with carbide ball accuracy ball dia. 0 -6 m Ball dia. d l order no. Ball dia. d l order no. mm mm mm mm 1 8.5 4360150 5.5 9 4360161 1.25 8.5 4360151 6 9 4360162 1.5 8.5 4360152 6.35 (1 4") 9 4360163 1.75 8.5 4360153 6.5 10 4360164 2 8.5 4360154 7 10 4360165 2.5 8.5 4360155 7.5 11 4360166 3 8.5 4360156 8 11 4360167 3.5 8.5 4360157 8.5 12 4360168 4 8.5 4360158 9 12 4360169 4.5 8.5 4360159 10 13 4360170 5 9 4360160 Contact Rollers 909 Concentricity error 3 m Cylindrical Roller Radiused Roller R 5 mm 909 A 909 B order no. 4360220 4360221 901 902 903 - N R 15 J S4 042 R 6 04 2 V 042 H 904 905 906 H 907 R 03 908 H M 25 M 25 913 30 ENt t i i 0113 5 426 M M 25 1 L075 . T Special Contact Points Conical Contact Points Steel 904 order no. 4360130 Carbide tipped 904 H 4360131 Wedge Shaped Contact Points Steel 905 4360140 Carbide tipped 905 H 4360141 Flat Contact Points Steel A 1 cm2 907 4360200 Carbide tipped dia. 7 mm 907 H 4360201 Spherical Contact Points Steel 908 4360210 Carbide tipped 908 H 4360211 Flat Contact Point for mounting Pin Gage Holder 426 M for measuring threads using three-wire method 913 4360400 Disc Type anvil thickness 0.5 mm hardened 30 ENt 4126310 Disc Type anvil thickness 1 mm hardened 30 ENt 4882022 909 A 25 M 25 M 25
