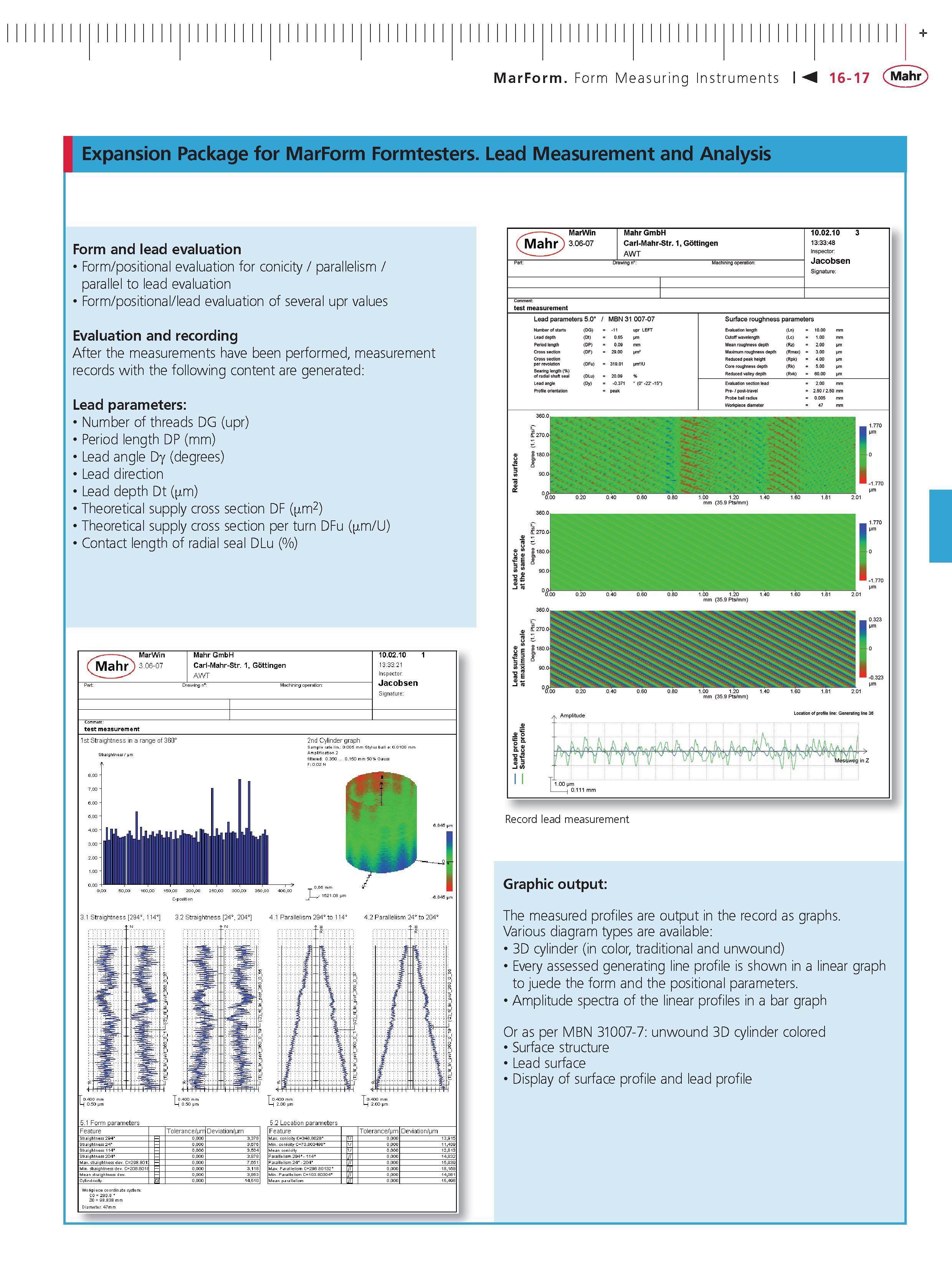

Expansion Package for MarForm Formtesters. Lead Measurement and Analysis Form and lead evaluation Form positional evaluation for conicity parallelism parallel to lead evaluation Form positional lead evaluation of several upr values Evaluation and recording After the measurements have been performed measurement records with the following content are generated Lead parameters Number of threads DG (upr) Period length DP (mm) Lead angle Dy (degrees) Lead direction Lead depth Dt (pm) Theoretical supply cross section DF (pm2) Theoretical supply cross section per turn DFu (pm U) Contact length of radial seal DLu (%) Record lead measurement Graphic output The measured profiles are output in the record as graphs. Various diagram types are available 3D cylinder (in color traditional and unwound) Every assessed generating line profile is shown in a linear graph to juede the form and the positional parameters. Amplitude spectra of the linear profiles in a bar graph Or as per MBN 31007-7 unwound 3D cylinder colored Surface structure Lead surface Display of surface profile and lead profile
