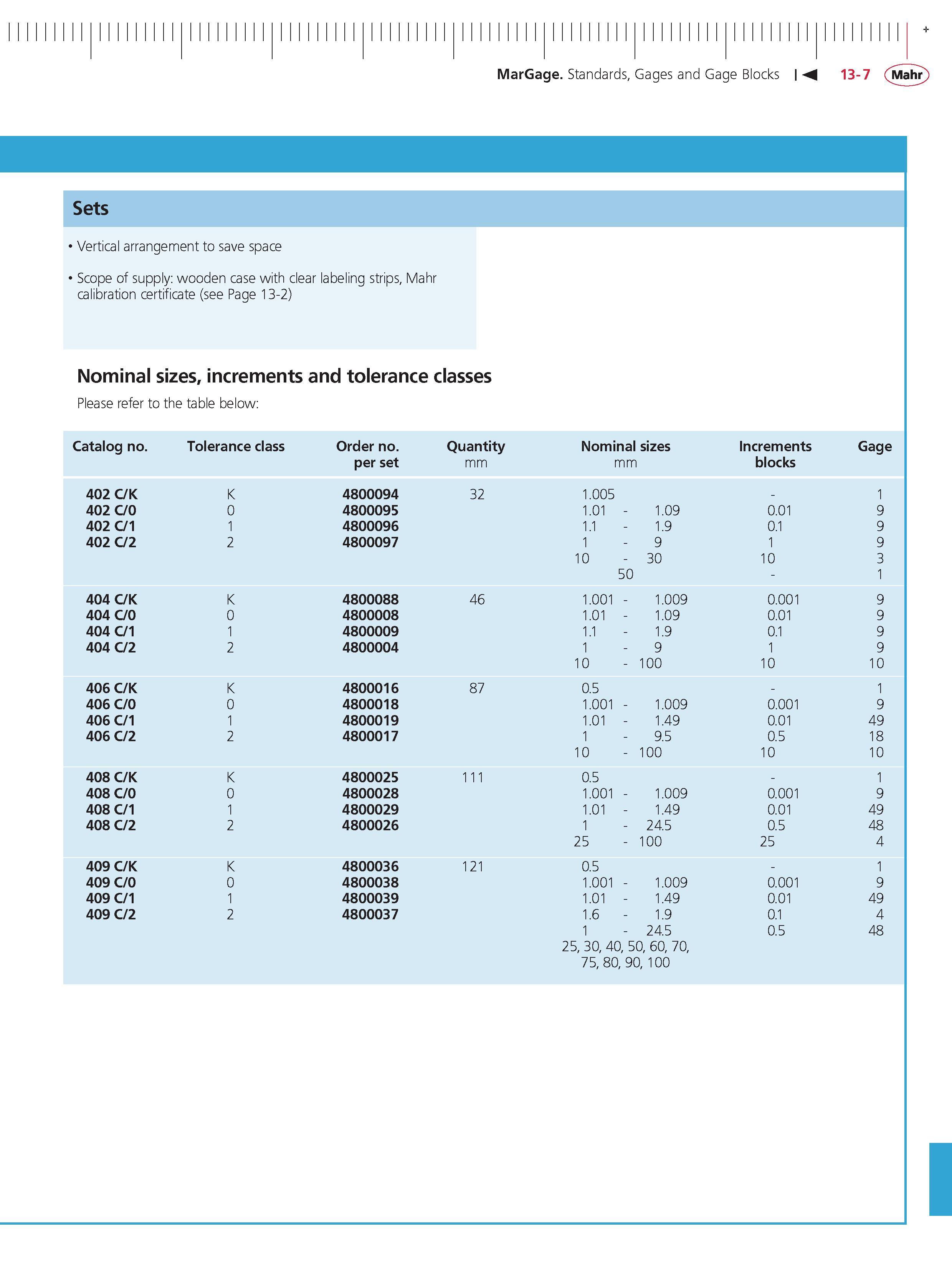

MarGage Standards Gages and Gage Blocks M 13-7 Mahr sets Vertical arrangement to save space Scope of supply wooden case with clear labeling strips Mahr calibration certificate (see Page 13-2) Nominal sizes increments and tolerance classes Please refer to the table below catalog no. Tolerance class order no. Quantity nominal sizes Increments Gage per set mm mm blocks 402 c K K 4800094 32 1.005 - 1 402 c 0 0 4800095 1.01 - 1.09 0.01 9 402 c 1 1 4800096 1.1 - 1.9 0.1 9 402 c 2 2 4800097 1 - 9 1 9 10 - 30 10 3 50 - 1 404 c k K 4800088 46 1.001 - 1.009 0.001 9 404 c 0 0 4800008 1.01 - 1.09 0.01 9 404 c 1 1 4800009 1.1 - 1.9 0.1 9 404 c 2 2 4800004 1 - 9 1 9 10 - 1 00 10 10 406 c K K 4800016 87 0.5 - 1 406 c 0 0 4800018 1.001 - 1.009 0.001 9 406 c 1 1 4800019 1.01 - 1.49 0.01 49 406 c 2 2 4800017 1 - 9.5 0.5 18 10 - 1 00 10 10 408 c K K 4800025 111 0.5 - 1 408 c 0 0 4800028 1.001 - 1.009 0.001 9 408 c 1 1 4800029 1.01 - 1.49 0.01 49 408 c 2 2 4800026 1 - 24.5 0.5 48 25 - 1 00 25 4 409 c K K 4800036 121 0.5 - 1 409 c 0 0 4800038 1.001 - 1.009 0.001 9 409 c 1 1 4800039 1.01 - 1.49 0.01 49 409 c 2 2 4800037 1.6 - 1.9 0.1 4 1 - 24.5 0.5 48 25 30 40 50 60 70 75 80 90 100
