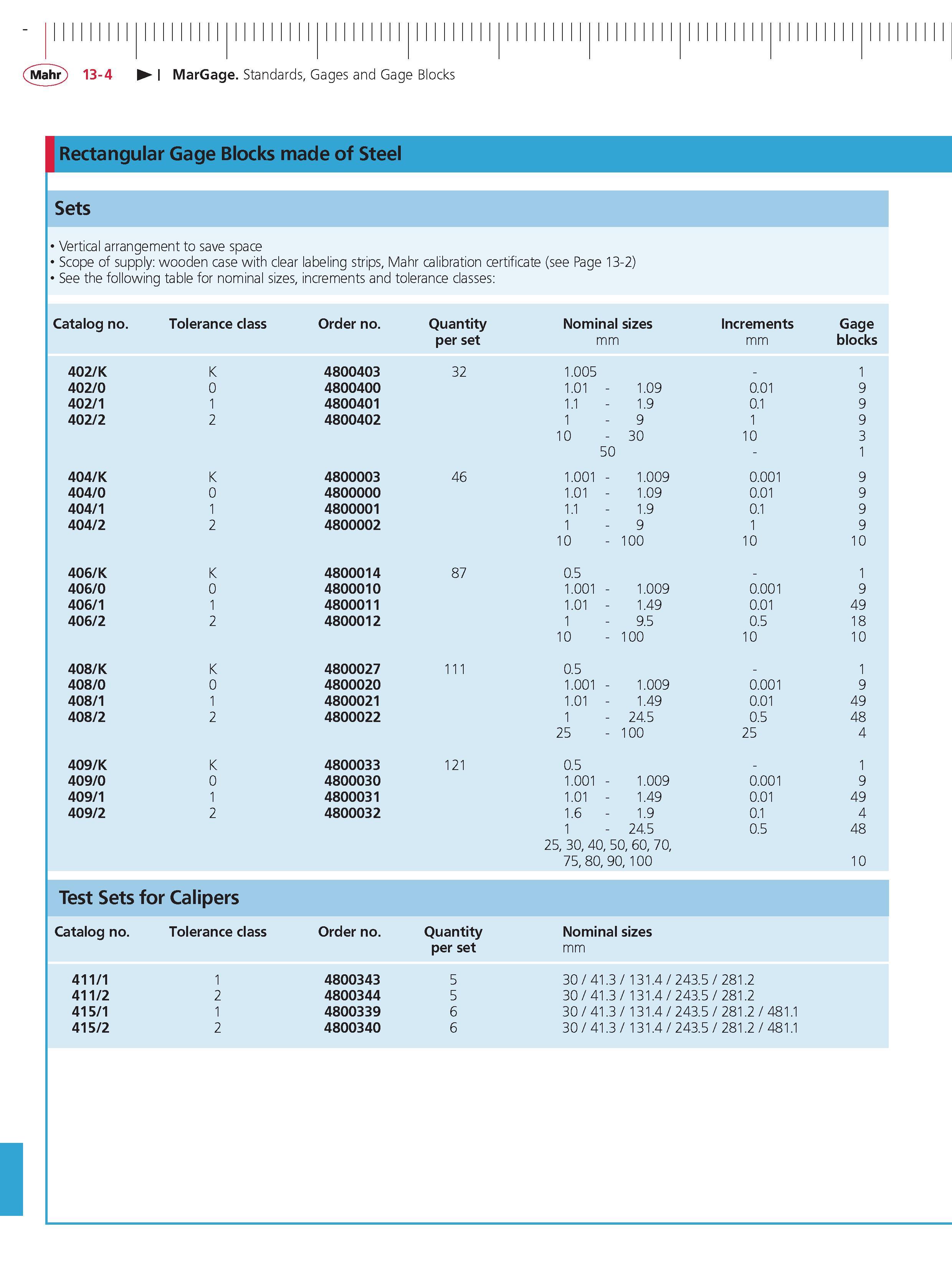

Mahr 13-4 MarGage Standards Gages and Gage Blocks Rectangular Gage Blocks made of Steel Sets Vertical arrangement to save space Scope of supply wooden case with clear labeling strips Mahr calibration certificate (see Page 13-2) See the following table for nominal sizes increments and tolerance classes catalog no. Tolerance class order no. Quantity Nominal sizes Increments Gage per set mm mm blocks 402 K K 4800403 32 1.005 - 1 402 0 0 4800400 1.01 - 1.09 0.01 9 402 1 1 4800401 1.1 - 1.9 0.1 9 402 2 2 4800402 1 - 9 1 9 10 - 30 10 3 50 - 1 404 K K 4800003 46 1.001 - 1.009 0.001 9 404 0 0 4800000 1.01 - 1.09 0.01 9 404 1 1 4800001 1.1 - 1.9 0.1 9 404 2 2 4800002 1 - 9 1 9 10 - 100 10 10 406 K K 4800014 87 0.5 - 1 406 0 0 4800010 1.001 - 1.009 0.001 9 406 1 1 4800011 1.01 - 1.49 0.01 49 406 2 2 4800012 1 - 9.5 0.5 18 10 - 100 10 10 408 K K 4800027 111 0.5 - 1 408 0 0 4800020 1.001 - 1.009 0.001 9 408 1 1 4800021 1.01 - 1.49 0.01 49 408 2 2 4800022 1 - 24.5 0.5 48 25 - 100 25 4 409 K K 4800033 121 0.5 - 1 409 0 0 4800030 1.001 - 1.009 0.001 9 409 1 1 4800031 1.01 - 1.49 0.01 49 409 2 2 4800032 1.6 - 1.9 0.1 4 1 - 24.5 0.5 48 25 30 40 50 60 70 75 80 90 100 10 test sets for calipers catalog no. tolerance class order no. Quantity Nominal sizes per set mm 411 1 1 4800343 5 30 41.3 131.4 243.5 281.2 41 1 2 2 4800344 5 30 41.3 131.4 243.5 281.2 415 1 1 4800339 6 30 41.3 131.4 243.5 281.2 481.1 415 2 2 4800340 6 30 41.3 131.4 243.5 281.2 481.1
