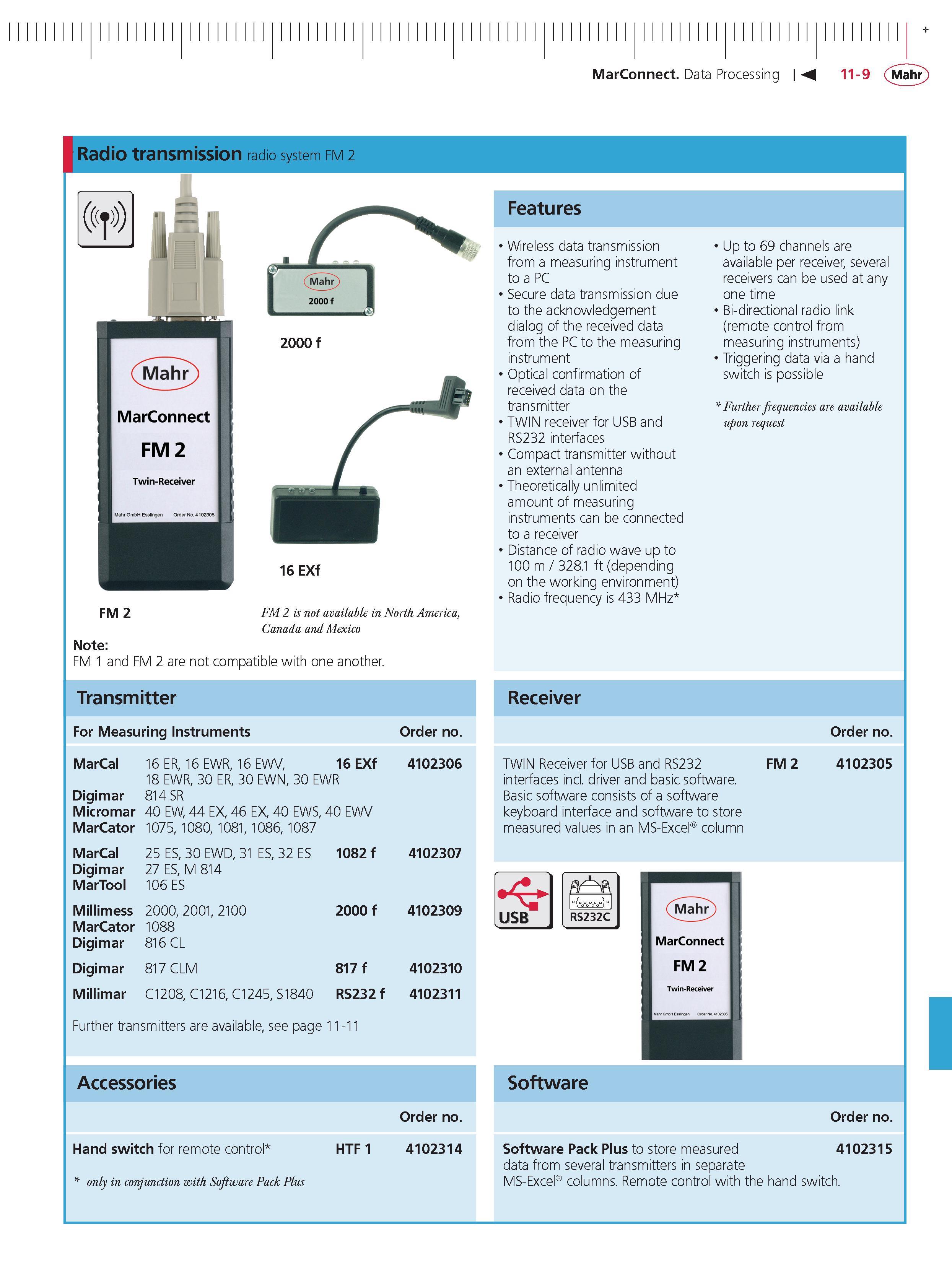

MarConnect Data Processing M 11-9 Mahr Radio transmission radio system fm 2 FM 2 FM 2 is not available in North America Canada and Mexico Note FM 1 and FM 2 are not compatible with one another. Transmitter For Measuring Instruments MarCal Digimar 16 ER 16 EWR 16 EWV 16 EXf 18 EWR 30 ER 30 EWN 30 EWR 814 SR Micromar 40 EW 44 EX 46 EX 40 EWS 40 EWV MarCator 1075 1080 1081 1086 1087 MarCal 25 ES 30 EWD 31 ES 32 ES Digimar 27 ES M 814 MarTool 106 ES Millimess 2000 2001 2100 MarCator 1088 Digimar 816 CL Digimar Millimar 1082 f Order no. 4102306 4102307 2000 f 4102309 817 CLM C1208 C1216 C1245 S1840 817 f RS232f 4102310 4102311 Further transmitters are available see page 11-11 Accessories Hand switch for remote control only in conjunction with Software Pack Plus Order no. HTF1 4102314 Features Wireless data transmission from a measuring instrument to a PC Secure data transmission due to the acknowledgement dialog of the received data from the PC to the measuring instrument Optical confirmation of received data on the transmitter TWIN receiver for USB and RS232 interfaces Compact transmitter without an external antenna Theoretically unlimited amount of measuring instruments can be connected to a receiver Distance of radio wave up to 100 m 328.1 ft (depending on the working environment) Radio frequency is 433 MHz Up to 69 channels are available per receiver several receivers can be used at any one time Bi-directional radio link (remote control from measuring instruments) Triggering data via a hand switch is possible Further frequencies are available upon request Receiver TWIN Receiver for USB and RS232 interfaces incl. driver and basic software. Basic software consists of a software keyboard interface and software to store measured values in an MS-Excel column FM 2 Order no. 4102305 Software Order no. Software Pack Plus to store measured 4102315 data from several transmitters in separate MS-Excel columns. Remote control with the hand switch.
