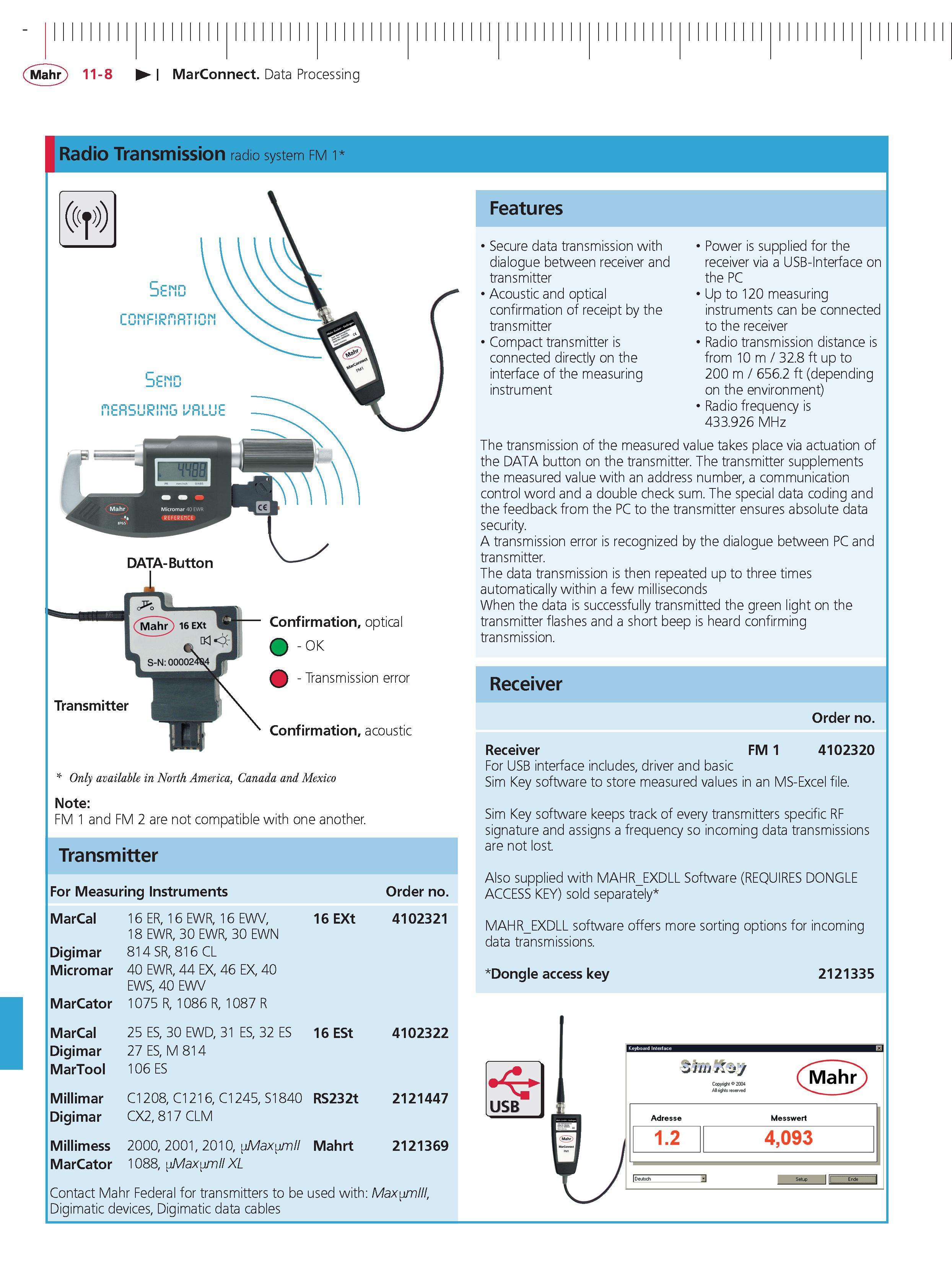

Mahr 11-8 MarConnect Data Processing Radio Transmission radio system fm v UCIMH 3ci iu r him r i o I7 Q Lui ii ii i in DATA-Button Transmitter Confirmation optical o - 0K - Transmission error Confirmation acoustic Only available in North America Canada and Mexico Note FM 1 and FM 2 are not compatible with one another. Transmitter For Measuring Instruments Order no. MarCal 16 ER 16 EWR 16 EWV 18 EWR 30 EWR 30 EWN 16 EXt 4102321 Digimar 814 SR 816 CL Micromar 40 EWR 44 EX 46 EX 40 EWS 40 EWV MarCator 1075 R 1086 R 1087 R MarCal 25 ES 30 EWD 31 ES 32 ES 16 ESt 4102322 Digimar 27 ES M 814 MarTool 106 ES Millimar C1208 C1216 C1245 S1840 t 2 3 2 RS2 2121447 Digimar CX2 817 CLM Millimess 1 0 01 2 01 0 2 0 0 0 2 Mahrt 2121369 MarCator 1088 Max mii XL Contact Mahr Federal for transmitters to be used with Maxumiii Digimatic devices Digimatic data cables Features Secure data transmission with dialogue between receiver and transmitter Acoustic and optical confirmation of receipt by the transmitter Compact transmitter is connected directly on the interface of the measuring instrument Power is supplied for the receiver via a USB-Interface on the PC Up to 120 measuring instruments can be connected to the receiver Radio transmission distance is from 10 m 32.8 ft up to 200 m 656.2 ft (depending on the environment) Radio frequency is 433.926 MHz The transmission of the measured value takes place via actuation of the DATA button on the transmitter. The transmitter supplements the measured value with an address number a communication control word and a double check sum. The special data coding and the feedback from the PC to the transmitter ensures absolute data security. A transmission error is recognized by the dialogue between PC and transmitter. The data transmission is then repeated up to three times automatically within a few milliseconds When the data is successfully transmitted the green light on the transmitter flashes and a short beep is heard confirming transmission. Receiver Order no. Receiver FM 1 4102320 For USB interface includes driver and basic Sim Key software to store measured values in an MS-Excel file. Sim Key software keeps track of every transmitters specific RF signature and assigns a frequency so incoming data transmissions are not lost. Also supplied with MAHREXDLL Software (REQUIRES DONGLE ACCESS KEY) sold separately MAHREXDLL software offers more sorting options for incoming data transmissions. Dongle access key 2121335
