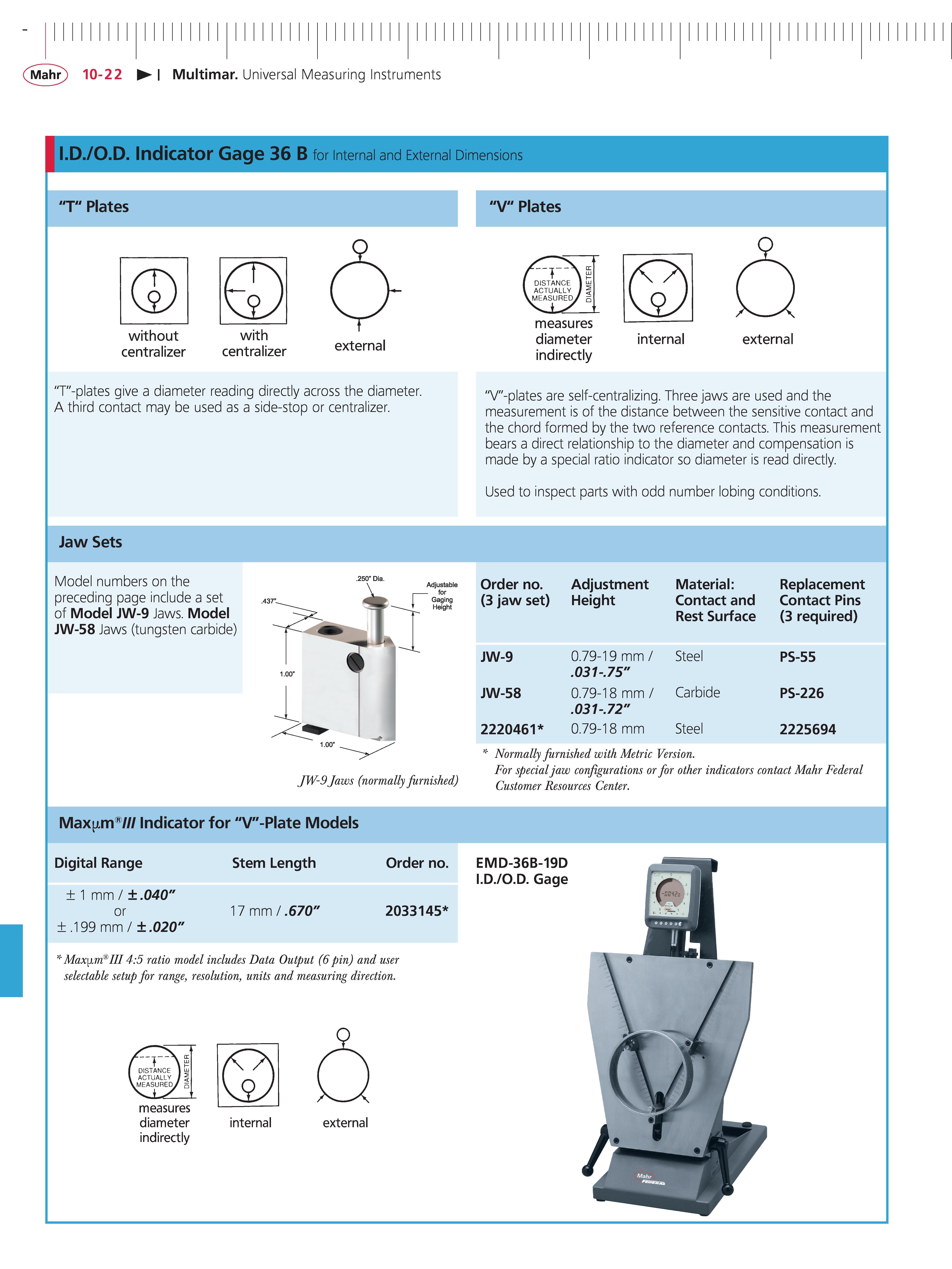

Mahr 10-22 Multimar Universal Measuring Instruments i.D. O.D. indicator Gage 36 B for Internal and External Dimensions "T" Plates "V" Plates "T"-plates give a diameter reading directly across the diameter. A third contact may be used as a side-stop or centralizer. "V"-plates are self-centralizing. Three jaws are used and the measurement is of the distance between the sensitive contact and the chord formed by the two reference contacts. This measurement bears a direct relationship to the diameter and compensation is made by a special ratio indicator so diameter is read directly. Used to inspect parts with odd number lobing conditions. Jaw Sets Model numbers on the preceding page include a set of Model JW-9 Jaws. Model JW-58 Jaws (tungsten carbide) Order no. (3 jaw set) Adjustment Height Material Contact and Rest Surface Replacement Contact Pins (3 required) JW-9 0.79-19 mm .031-.75" Steel PS-55 JW-58 0.79-18 mm .031-.72" Carbide PS-226 2220461 0.79-18 mm Steel 2225694 JW-9 Jaws (normally furnished) Normally furnished with Metric Version. For special jaw configurations or for other indicators contact Mahr Federal Customer Resources Center. Max m indicator for "V"-Plate Models Digital Range Stem Length Order no. 1 mm .040" or 17 mm .670" 2033145 .199 mm .020" EMD-36B-19D I.D. O.D. Gage Max m III 4:5 ratio model includes Data Output (6pin) and user selectable setup for range resolution units and measuring direction.
