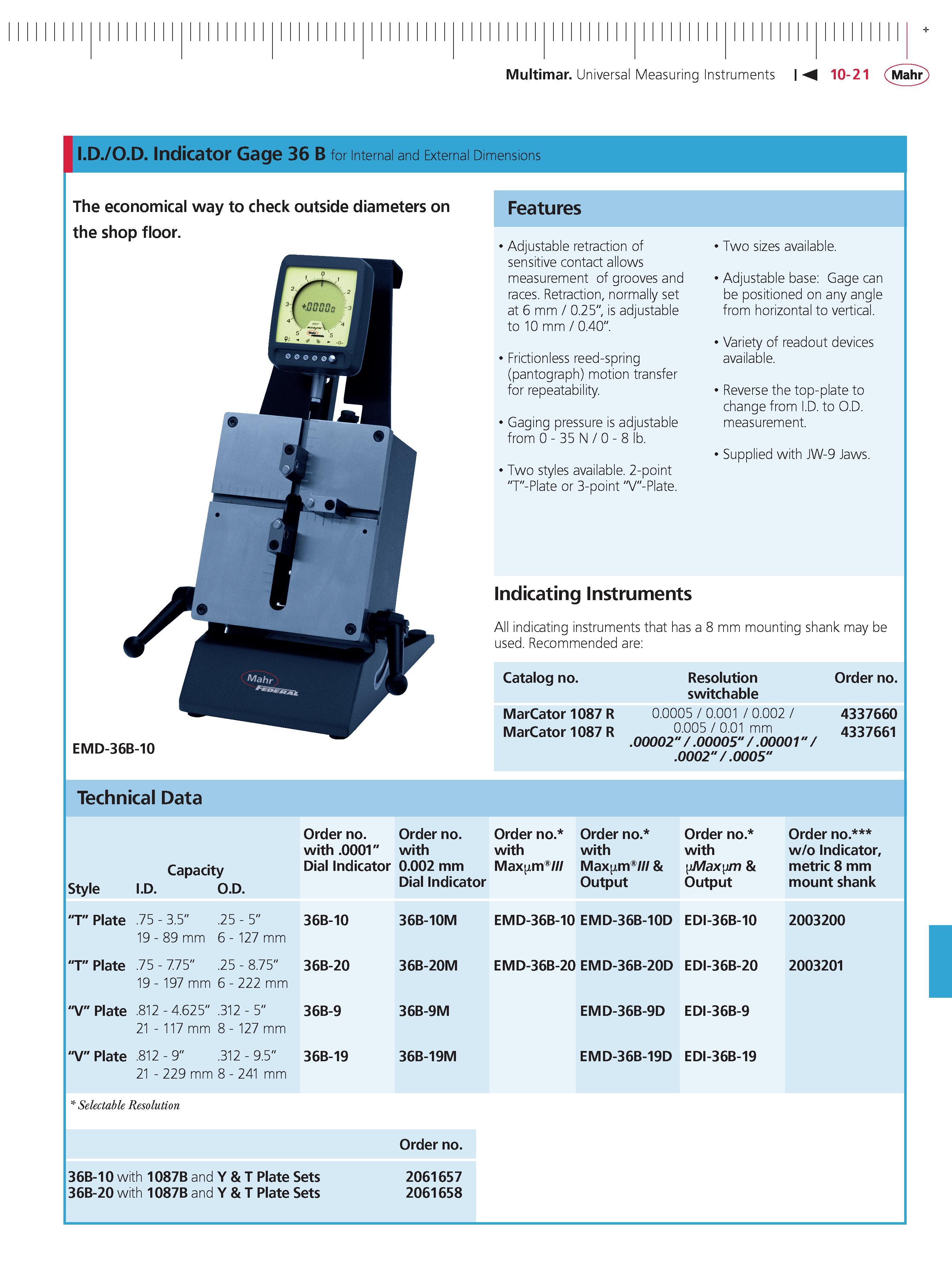

Multimar Universal Measuring Instruments 10-21 (Mahr'; i.D. O.D. indicator Gage 36 B for Internal and External Dimensions The economical way to check outside diameters on the shop floor. Features Adjustable retraction of sensitive contact allows measurement of grooves and races. Retraction normally set at 6 mm 0.25" is adjustable to 10 mm 0.40". Frictionless reed-spring (pantograph) motion transfer for repeatability. Gaging pressure is adjustable from 0 - 35 N 0 - 8 lb. Two styles available. 2-point "T"-Plate or 3-point "V"-Plate. Two sizes available. Adjustable base Gage can be positioned on any angle from horizontal to vertical. Variety of readout devices available. Reverse the top-plate to change from I.D. to O.D. measurement. Supplied with JW-9 Jaws. indicating instruments All indicating instruments that has a 8 mm mounting shank may be used. Recommended are Catalog no. MarCator 1087 R MarCator 1087 R EMD-36B-10 Resolution switchable 0.0005 0.001 0.002 0.005 0.01 mm .00002" .00005" .00001" .0002" .0005" Order no. 4337660 4337661 Technical Data Style Capacity i.D. O.D. Order no. with .0001" Dial indicator Order no. with 0.002 mm Dial indicator Order no. with Max m Order no. with Max m & Output Order no. with yMaxym & Output Order no. w o indicator metric 8 mm mount shank .75 - 3.5" .25 - 5" 19 - 89 mm 6 - 127 mm 36B-10 36B-10M EMD-36B-10 EMD-36B-10D EDi-36B-10 2003200 .75 - 7.75" .25 - 8.75" 19 - 197 mm 6 - 222 mm 36B-20 36B-20M EMD-36B-20 EMD-36B-20D EDi-36B-20 2003201 .812 - 4.625" .312 - 5" 21 - 117 mm 8 - 127 mm 36B-9 36B-9M EMD-36B-9D EDi-36B-9 .812 - 9" .312 - 9.5" 21 - 229 mm 8 - 241 mm 36B-19 36B-19M EMD-36B-19D EDi-36B-19 36B-10 with 1087B and Y & T Plate Sets 36B-20 with 1087B and Y & T Plate Sets Order no. 2061657 2061658
