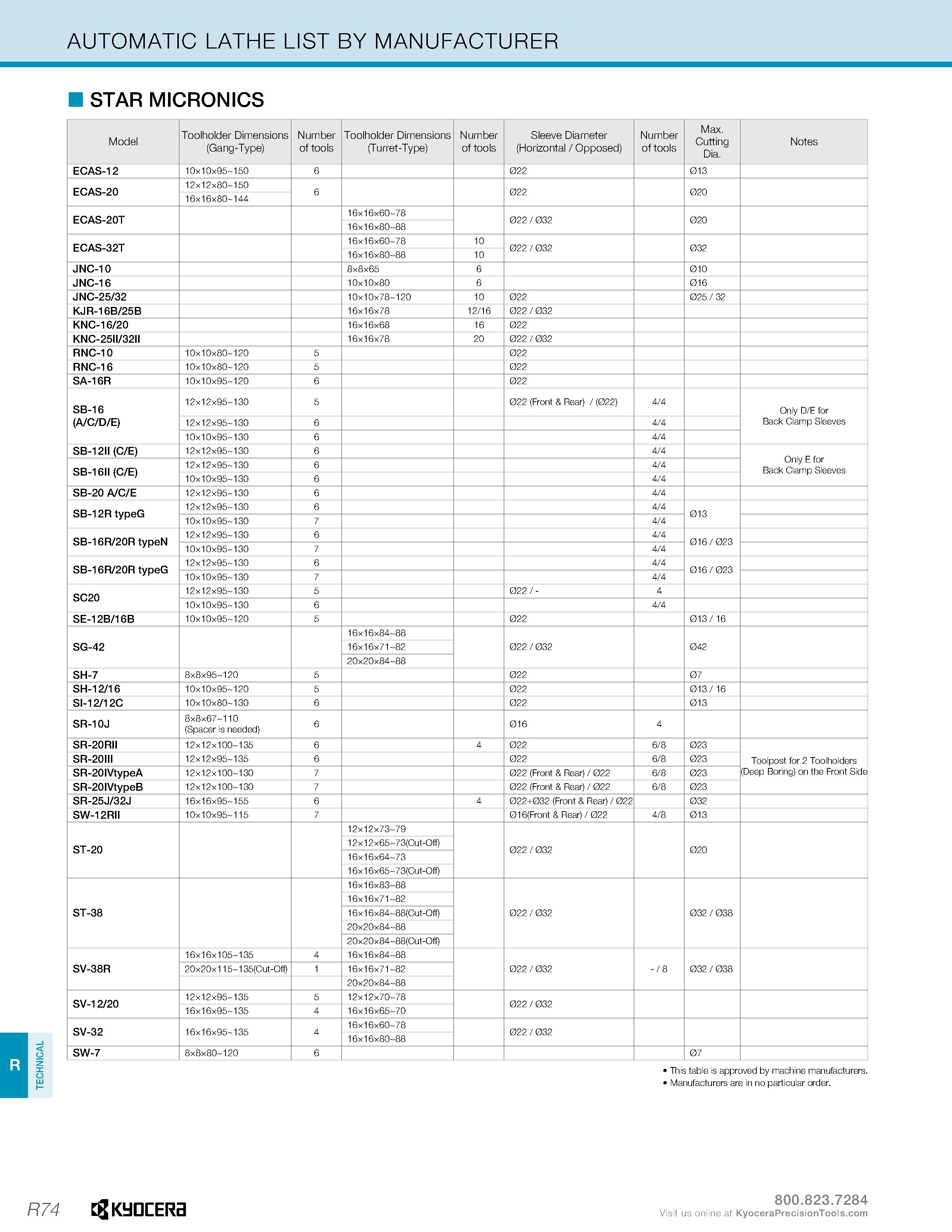

TECHNICAL AUTOMATIC LATHE LIST BY MANUFACTURER STAR MICR0NICS Model Toolholder Dimensions Number Toolholder Dimensions Number Sleeve Diameter Number Max. Cutting Dia. Notes (Gang-Type) of tools (Turret-Type) of tools (Horizontal / Opposed) of tools ECAS-12 10x10x95-150 6 022 013 ECAS-20 12x12x80-150 6 022 020 16x16x80-144 ECAS-20T 16x16x60-78 022 / 032 020 16x16x80-88 ECAS-32T 16x16x60-78 10 022 / 032 032 16x16x80-88 10 JNC-10 8x8x65 6 010 JNC-16 10x10x80 6 016 JNC-25/32 10x10x78-120 10 022 025 / 32 KJR-16B/25B 16x16x78 12/16 022 / 032 KNC-16/20 16x16x68 16 022 KNC-25II/32II 16x16x78 20 022 / 032 RNC-10 10x10x80-120 5 022 RNC-16 10x10x80-120 5 022 SA-16R 10x10x95-120 6 022 SB-16 12x12x95-130 5 022 (Front & Rear) / (022) 4/4 Only D/E for (A/C/D/E) 12x12x95-130 6 4/4 Back Clamp Sleeves 10x10x95-130 6 4/4 SB-12II (C/E) 12x12x95-130 6 4/4 Only E for Back Clamp Sleeves SB-16II (C/E) 12x12x95-130 6 4/4 10x10x95-130 6 4/4 SB-20 A/C/E 12x12x95-130 6 4/4 SB-12R typeG 12x12x95-130 6 4/4 013 10x10x95-130 7 4/4 SB-16R/20R typeN 12x12x95-130 6 4/4 016 / 023 10x10x95-130 7 4/4 SB-16R/20R typeG 12x12x95-130 6 4/4 016 / 023 10x10x95-130 7 4/4 SC20 12x12x95-130 5 022 / - 4 10x10x95-130 6 4/4 SE-12B/16B 10x10x95-120 5 022 013 / 16 16x16x84-88 SG-42 16x16x71-82 022 / 032 042 20x20x84-88 SH-7 8x8x95-120 5 022 07 SH-12/16 10x10x95-120 5 022 013 / 16 SI-12/12C 10x10x80-130 6 022 013 SR-10J 8x8x67-110 (Spacer is needed) 6 016 4 SR-20RII 12x12x100-135 6 4 022 6/8 023 SR-20III 12x12x95-135 6 022 6/8 023 Toolpost for 2 Toolholders SR-20IVtypeA 12x12x100-130 7 022 (Front & Rear) / 022 6/8 023 (Deep Boring) on the Front Side SR-20IVtypeB 12x12x100-130 7 022 (Front & Rear) / 022 6/8 023 SR-25J/32J 16x16x95-155 6 4 022+032 (Front & Rear) / 022 032 SW-12RII 10x10x95-115 7 016(Front & Rear) / 022 4/8 013 12x12x73-79 ST-20 12x12x65-73(Cut-Off) 022 / 032 020 16x16x64-73 16x16x65-73(Cut-Off) 16x16x83-88 16x16x71-82 ST-38 16x16x84-88(Cut-Off) 022 / 032 032 / 038 20x20x84-88 20x20x84-88(Cut-Off) 16x16x105-135 4 16x16x84-88 SV-38R 20x20x115-135(Cut-Off) 16x16x71-82 022 / 032 - / 8 032 / 038 20x20x84-88 SV-12/20 12x12x95-135 5 12x12x70-78 022 / 032 16x16x95-135 4 16x16x65-70 SV-32 16x16x95-135 4 16x16x60-78 022 / 032 16x16x80-88 SW-7 8x8x80-120 6 07 This table is approved by machine manufacturers. Manufacturers are in no particular order. R74 Kyocera Visit us online at
