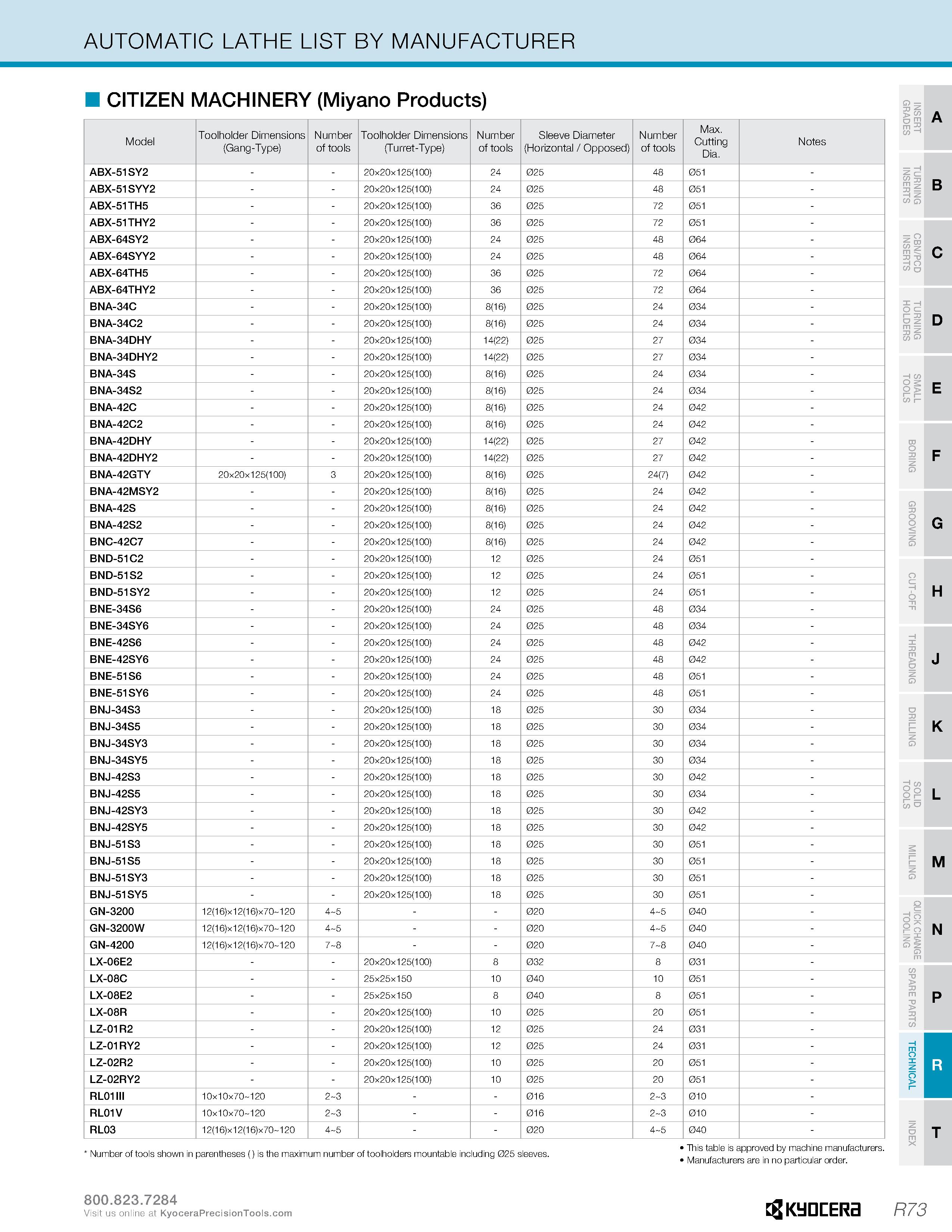

AUTOMATIC LATHE LIST BY MANUFACTURER CITIZEN MACHINERY (Miyano Products) Model Toolholder Dimensions (Gang-Type) Number of tools Toolholder Dimensions (Turret-Type) Number of tools Sleeve Diameter (Horizontal / Opposed) Number of tools Max. Cutting Dia. Notes ABX-51SY2 20x20x125(100) 24 025 48 051 ABX-51SYY2 20x20x125(100) 24 025 48 051 ABX-51TH5 20x20x125(100) 36 025 72 051 ABX-51THY2 20x20x125(100) 36 025 72 051 ABX-64SY2 20x20x125(100) 24 025 48 064 ABX-64SYY2 20x20x125(100) 24 025 48 064 ABX-64TH5 20x20x125(100) 36 025 72 064 ABX-64THY2 20x20x125(100) 36 025 72 064 BNA-34C 20x20x125(100) 8(16) 025 24 034 BNA-34C2 20x20x125(100) 8(16) 025 24 034 BNA-34DHY 20x20x125(100) 14(22) 025 27 034 BNA-34DHY2 20x20x125(100) 14(22) 025 27 034 BNA-34S 20x20x125(100) 8(16) 025 24 034 BNA-34S2 20x20x125(100) 8(16) 025 24 034 BNA-42C 20x20x125(100) 8(16) 025 24 042 BNA-42C2 20x20x125(100) 8(16) 025 24 042 BNA-42DHY 20x20x125(100) 14(22) 025 27 042 BNA-42DHY2 20x20x125(100) 14(22) 025 27 042 BNA-42GTY 20x20x125(100) 3 20x20x125(100) 8(16) 025 24(7) 042 BNA-42MSY2 20x20x125(100) 8(16) 025 24 042 BNA-42S 20x20x125(100) 8(16) 025 24 042 BNA-42S2 20x20x125(100) 8(16) 025 24 042 BNC-42C7 20x20x125(100) 8(16) 025 24 042 BND-51C2 20x20x125(100) 12 025 24 051 BND-51S2 20x20x125(100) 12 025 24 051 BND-51SY2 20x20x125(100) 12 025 24 051 BNE-34S6 20x20x125(100) 24 025 48 034 BNE-34SY6 20x20x125(100) 24 025 48 034 BNE-42S6 20x20x125(100) 24 025 48 042 BNE-42SY6 20x20x125(100) 24 025 48 042 BNE-51S6 20x20x125(100) 24 025 48 051 BNE-51SY6 20x20x125(100) 24 025 48 051 BNJ-34S3 20x20x125(100) 18 025 30 034 BNJ-34S5 20x20x125(100) 18 025 30 034 BNJ-34SY3 20x20x125(100) 18 025 30 034 BNJ-34SY5 20x20x125(100) 18 025 30 034 BNJ-42S3 20x20x125(100) 18 025 30 042 BNJ-42S5 20x20x125(100) 18 025 30 034 BNJ-42SY3 20x20x125(100) 18 025 30 042 BNJ-42SY5 20x20x125(100) 18 025 30 042 BNJ-51S3 20x20x125(100) 18 025 30 051 BNJ-51S5 20x20x125(100) 18 025 30 051 BNJ-51SY3 20x20x125(100) 18 025 30 051 BNJ-51SY5 20x20x125(100) 18 025 30 051 GN-3200 12(16)x12(16)x70 120 4 5 020 4 5 040 GN-3200W 12(16)x12(16)x70 120 4 5 020 4 5 040 GN-4200 12(16)x12(16)x70 120 7 8 020 7 8 040 LX-06E2 20x20x125(100) 8 032 8 031 LX-08C 25x25x150 10 040 10 051 LX-08E2 25x25x150 8 040 8 051 LX-08R 20x20x125(100) 10 025 20 051 LZ-01R2 20x20x125(100) 12 025 24 031 LZ-01RY2 20x20x125(100) 12 025 24 031 LZ-02R2 20x20x125(100) 10 025 20 051 LZ-02RY2 20x20x125(100) 10 025 20 051 RL01III 10x10x70 120 2 3 016 2 3 010 RL01V 10x10x70 120 2 3 016 2 3 010 RL03 12(16)x12(16)x70 120 4 5 020 4 5 040 A B C DO "O SD D S 0 1 N Q E G H > I N Q K M N P T Number of tools shown in parentheses ( ) is the maximum number of toolholders mountable including 025 sleeves. This table is approved by machine manufacturers. Manufacturers are in no particular order. Visit us online at Kyocera R73 F J L
