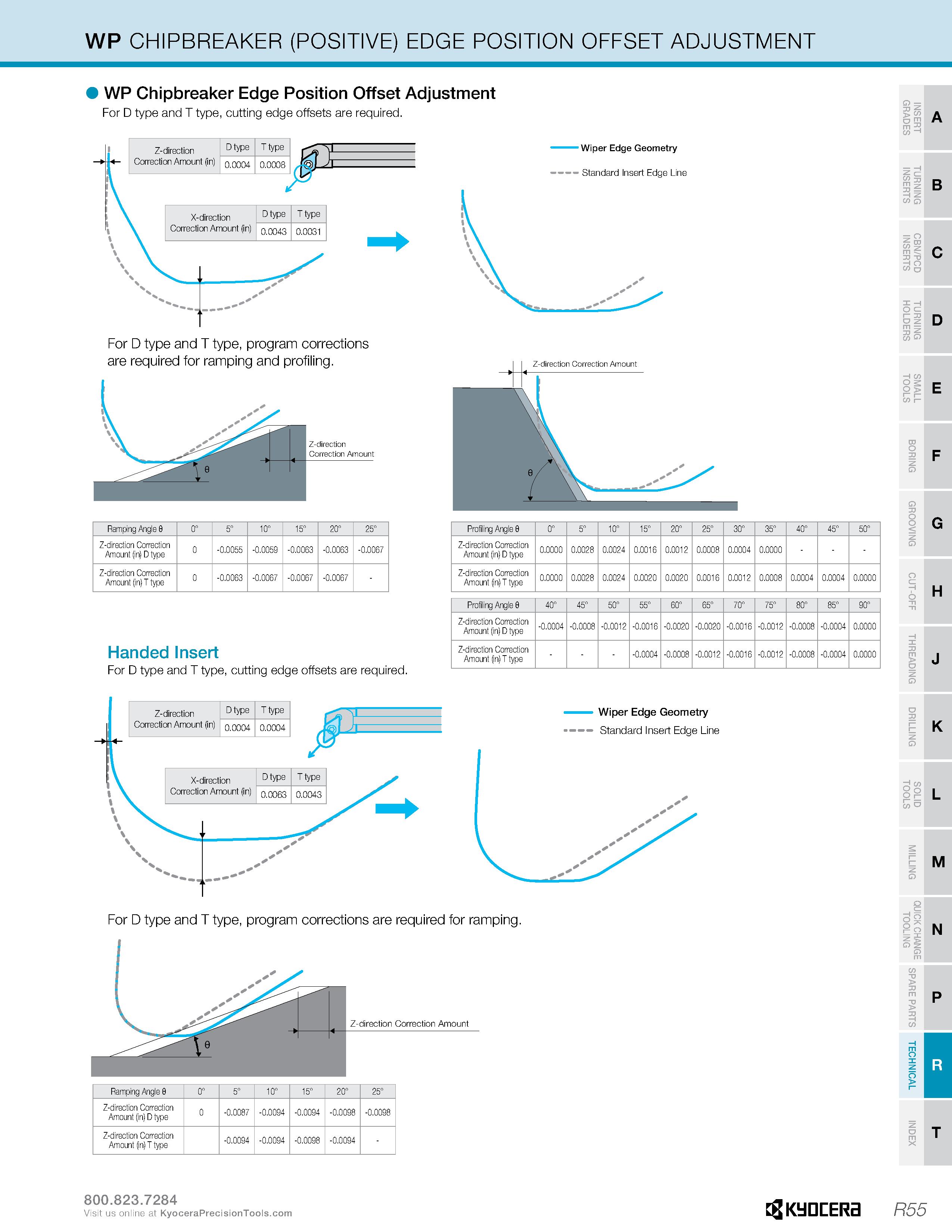

WP CHIPBREAKER (POSITIVE) EDGE POSITION OFFSET ADJUSTMENT WP Chipbreaker Edge Position Offset Adjustment For D type and T type, cutting edge offsets are required. For D type and T type, program corrections are required for ramping and profiling. Ramping Angle 0 0° 5° 10° 15° 20° 25° Z-direction Correction Amount (in) D type 0 -0.0055 -0.0059 -0.0063 -0.0063 -0.0067 Z-direction Correction Amount (in) T type 0 -0.0063 -0.0067 -0.0067 -0.0067 Handed Insert For D type and T type, cutting edge offsets are required. Wiper Edge Geometry - Standard Insert Edge Line Profiling Angle 0 0° 5° 10° 15° 20° 25° 30° 35° 40° 45° 50° Z-direction Correction Amount (in) D type 0.0000 0.0028 0.0024 0.0016 0.0012 0.0008 0.0004 0.0000 Z-direction Correction Amount (in) T type 0.0000 0.0028 0.0024 0.0020 0.0020 0.0016 0.0012 0.0008 0.0004 0.0004 0.0000 Profiling Angle 0 40° 45° 50° 55° 60° 65° 70° 75° 80° 85° 90° Z-direction Correction Amount (in) D type -0.0004 -0.0008 -0.0012 -0.0016 -0.0020 -0.0020 -0.0016 -0.0012 -0.0008 -0.0004 0.0000 Z-direction Correction Amount (in) T type -0.0004 -0.0008 -0.0012 -0.0016 -0.0012 -0.0008 -0.0004 0.0000 Wiper Edge Geometry Standard Insert Edge Line For D type and T type, program corrections are required for ramping. Z-direction Correction Amount Ramping Angle 0 0° 5° 10° 15° 20° 25° Z-direction Correction Amount (in) D type 0 -0.0087 -0.0094 -0.0094 -0.0098 -0.0098 Z-direction Correction Amount (in) T type -0.0094 -0.0094 -0.0098 -0.0094 B O CZ I- Tl O m = o 5 z Q O cz -H o > o Q H K M ip N Visit us online at KyDEERa R55
