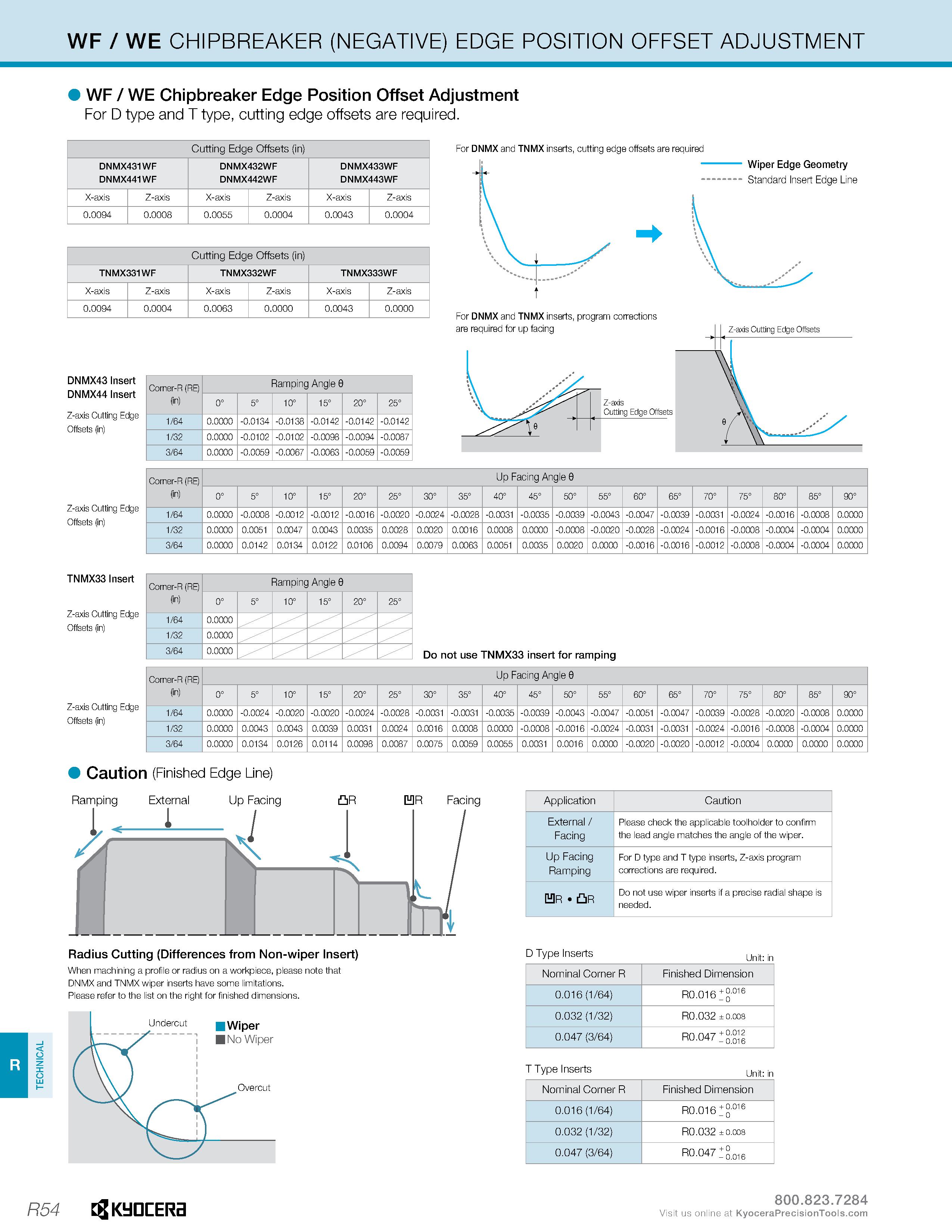

TECHNICAL WF / WE CHIPBREAKER (NEGATIVE) EDGE POSITION OFFSET ADJUSTMENT R54 WF / WE Chipbreaker Edge Position Offset Adjustment For D type and T type, cutting edge offsets are required. Cutting Edge Offsets (in) DNMX431 WF DNMX441 WF DNMX432WF DNMX442WF DNMX433WF DNMX443WF X-axis Z-axis X-axis Z-axis X-axis Z-axis 0.0094 0.0008 0.0055 0.0004 0.0043 0.0004 DNMX43 Insert DNMX44 Insert Z-axis Cutting Edge Offsets (in) Z-axis Cutting Edge Offsets (in) Corner-R (RE) (in) Ramping Angle 0 0° 5° 10° 15° o CM 25° 1/64 0.0000 -0.0134 -0.0138 -0.0142 -0.0142 -0.0142 1/32 0.0000 -0.0102 -0.0102 -0.0098 -0.0094 -0.0087 3/64 0.0000 -0.0059 -0.0067 -0.0063 -0.0059 -0.0059 For DNMX and TNMX inserts, cutting edge offsets are required Cutting Edge Offsets (in) TNMX331 WF TNMX332WF TNMX333WF X-axis Z-axis X-axis Z-axis X-axis Z-axis 0.0094 0.0004 0.0063 0.0000 0.0043 0.0000 Wiper Edge Geometry Standard Insert Edge Line For DNMX and TNMX inserts, program corrections are required for up facing Corner-R (RE) (in) Up Facing Angle 0 0° 5° 10° 15° 20° 25° o 35° 40° 45° 50° 55° o CD 65° 70° 75° o 85° 90° 1/64 0.0000 -0.0008 -0.0012 -0.0012 -0.0016 -0.0020 -0.0024 -0.0028 -0.0031 -0.0035 -0.0039 -0.0043 -0.0047 -0.0039 -0.0031 -0.0024 -0.0016 -0.0008 0.0000 1/32 0.0000 0.0051 0.0047 0.0043 0.0035 0.0028 0.0020 0.0016 0.0008 0.0000 -0.0008 -0.0020 -0.0028 -0.0024 -0.0016 -0.0008 -0.0004 -0.0004 0.0000 3/64 0.0000 0.0142 0.0134 0.0122 0.0106 0.0094 0.0079 0.0063 0.0051 0.0035 0.0020 0.0000 -0.0016 -0.0016 -0.0012 -0.0008 -0.0004 -0.0004 0.0000 TNMX33 Insert Z-axis Cutting Edge Offsets (in) Z-axis Cutting Edge Offsets (in) Corner-R (RE) (in) Ramping Angle 0 0° 5° 10° 15° 20° 25° 1/64 0.0000 1/32 0.0000 3/64 0.0000 Do not use TNMX33 insert for ramping Corner-R (RE) (in) Up Facing Angle 0 0° 5° 10° 15° 20° 25° o 35° 40° 45° 50° 55° o CD 65° 70° 75° o 85° 90° 1/64 0.0000 -0.0024 -0.0020 -0.0020 -0.0024 -0.0028 -0.0031 -0.0031 -0.0035 -0.0039 -0.0043 -0.0047 -0.0051 -0.0047 -0.0039 -0.0028 -0.0020 -0.0008 0.0000 1/32 0.0000 0.0043 0.0043 0.0039 0.0031 0.0024 0.0016 0.0008 0.0000 -0.0008 -0.0016 -0.0024 -0.0031 -0.0031 -0.0024 -0.0016 -0.0008 -0.0004 0.0000 3/64 0.0000 0.0134 0.0126 0.0114 0.0098 0.0087 0.0075 0.0059 0.0055 0.0031 0.0016 0.0000 -0.0020 -0.0020 -0.0012 -0.0004 0.0000 0.0000 0.0000 Caution (Finished Edge Line) Up Facing J External i HR Facing Radius Cutting (Differences from Non-wiper Insert) When machining a profile or radius on a workpiece, please note that DNMX and TNMX wiper inserts have some limitations. Please refer to the list on the right for finished dimensions. Application Caution External / Facing Please check the applicable toolholder to confirm the lead angle matches the angle of the wiper. Up Facing Ramping For D type and T type inserts, Z-axis program corrections are required. Hr Cir Do not use wiper inserts if a precise radial shape is needed. D Type Inserts Nominal Corner R Finished Dimension 0.016(1/64) R0.016+°'016 0.032 (1/32) R0.032 ±0.008 0.047 (3/64) R0.047 °;°J2 TType Inserts Unit: in Nominal Corner R Finished Dimension 0.016(1/64) R0.016+°'016 0.032 (1/32) R0.032 ±0.008 0.047 (3/64) R0.047 °016 Kyocera Visit us online at
