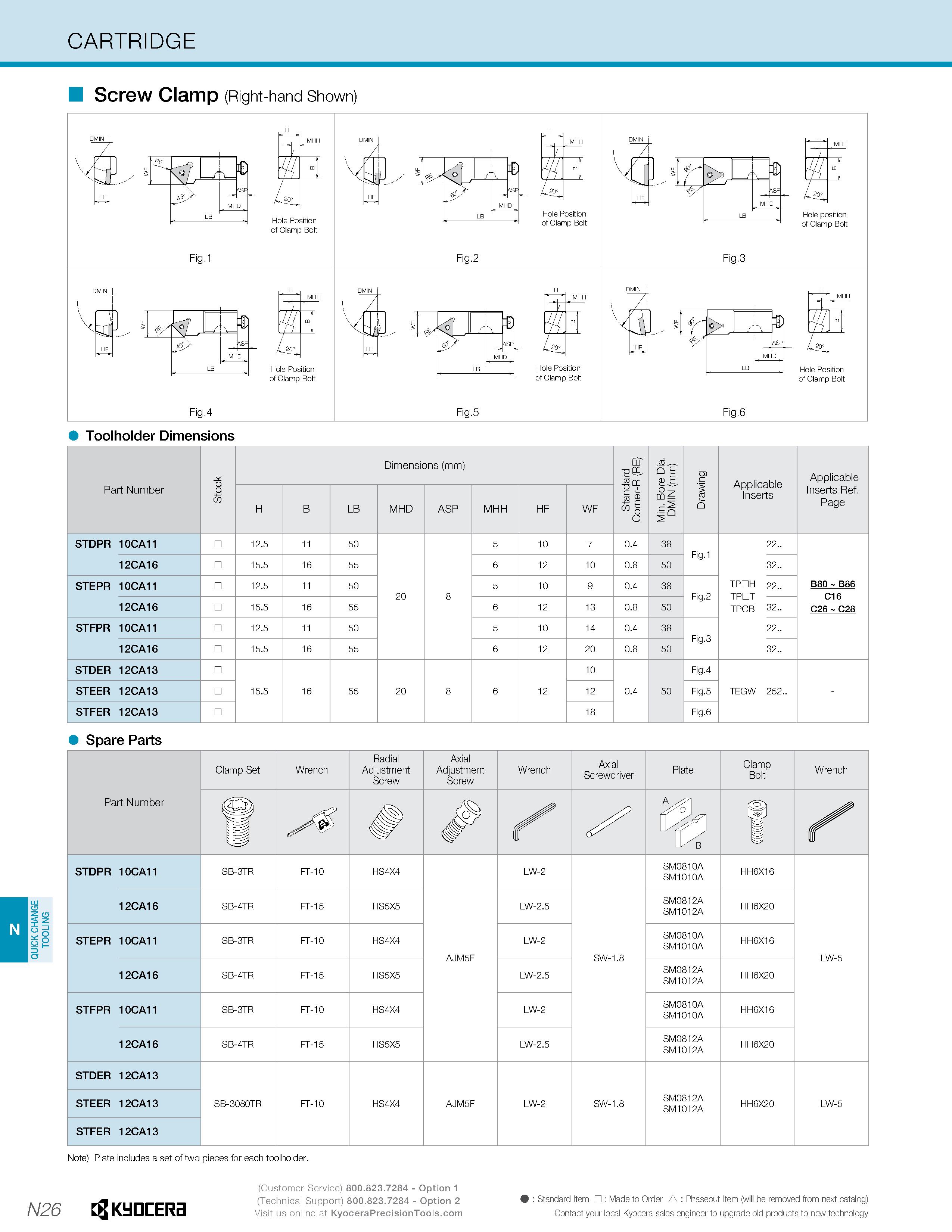

QUICK CHANGE TOOLING CARTRIDGE H Screw Clamp (Right-hand Shown) Toolholder Dimensions Part Number Stock Dimensions (mm) Standard Corner-R (RE) Min. Bore Dia. DMIN (mm) Drawing Applicable Inserts Applicable Inserts Ref. Page H B LB MHD ASP MHH HF WF STDPR 10CA11 12.5 11 50 20 8 5 10 7 0.4 38 Fig.1 TPm TPCTT TPGB 22.. B80 B86 C16 C26 C28 12CA16 15.5 16 55 6 12 10 0.8 50 32.. STEPR 10CA11 12.5 11 50 5 10 9 0.4 38 Fig.2 22.. 12CA16 15.5 16 55 6 12 13 0.8 50 32.. STFPR 10CA11 12.5 11 50 5 10 14 0.4 38 Fig.3 22.. 12CA16 15.5 16 55 6 12 20 0.8 50 32.. STDER 12CA13 10 Fig.4 STEER 12CA13 15.5 16 55 20 8 6 12 12 0.4 50 Fig.5 TEGW 252.. - STFER 12CA13 18 Fig.6 Spare Parts Part Number Clamp Set Wrench Radial Adjustment Screw Axial Adjustment Screw Wrench Axial Screwdriver Plate Clamp Bolt Wrench f S X s STDPR 10CA11 SB-3TR FT-10 HS4X4 AJM5F LW-2 SW-1.8 SM0810A SM1010A HH6X16 LW-5 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STEPR 10CA11 SB-3TR FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STFPR 10CA11 SB-3TR FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STDER 12CA13 SB-3080TR FT-10 HS4X4 AJM5F LW-2 SW-1.8 SM0812A SM1012A HH6X20 LW-5 STEER 12CA13 STFER 12CA13 Note) Plate includes a set of two pieces for each toolholder. N26 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
