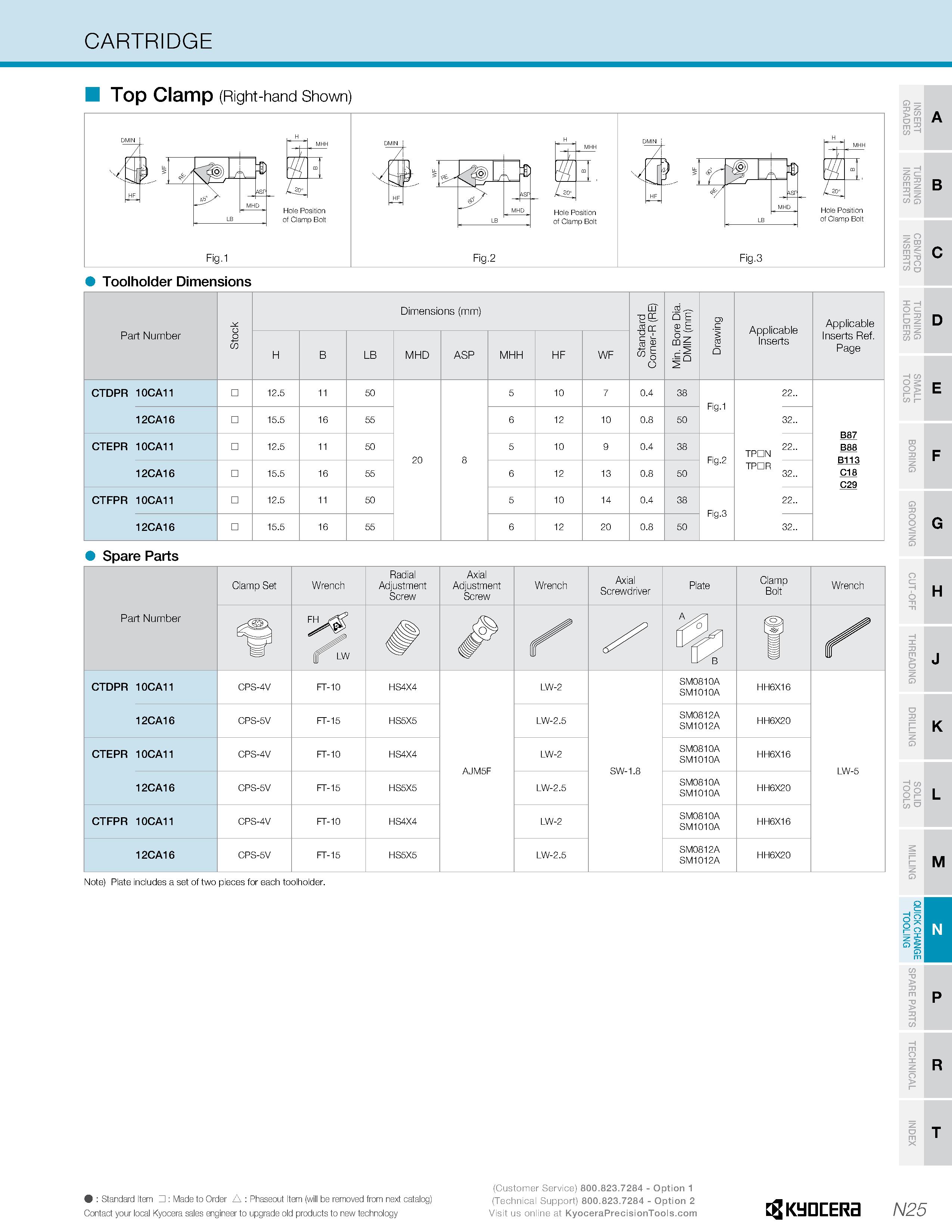

CARTRIDGE Top Clamp (Right-hand Shown) Toolholder Dimensions Part Number Stock Dimensions (mm) Standard Corner-R (RE) Min. Bore Dia. DMIN (mm) Drawing Applicable Inserts Applicable Inserts Ref. Page H B LB MHD ASP MHH HF WF CTDPR 10CA11 12.5 11 50 20 8 5 10 7 0.4 38 Fig.1 22.. B87 B88 B113 C18 C29 12CA16 15.5 16 55 6 12 10 0.8 50 32.. CTEPR 10CA11 12.5 11 50 5 10 9 0.4 38 Fig.2 22.. TP N 12CA16 15.5 16 55 6 12 13 0.8 50 TP R 32.. CTFPR 10CA11 12.5 11 50 5 10 14 0.4 38 Fig.3 22.. 12CA16 15.5 16 55 6 12 20 0.8 50 32.. E R R = T Z C/5 O DO "O SD B C O c i t> z D m z S o 0 s oa E 0 1 z o G H Spare Parts Part Number Clamp Set Wrench Radial Adjustment Screw Axial Adjustment Screw Wrench Axial Screwdriver Plate Clamp Bolt Wrench r W S X s CTDPR 10CA11 CPS-4V FT-10 HS4X4 AJM5F LW-2 SW-1.8 SM0810A SM1010A HH6X16 LW-5 12CA16 CPS-5V FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 CTEPR 10CA11 CPS-4V FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 CPS-5V FT-15 HS5X5 LW-2.5 SM0810A SM1010A HH6X20 CTFPR 10CA11 CPS-4V FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 CPS-5V FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 O cz 0 > I z o Note) Plate includes a set of two pieces for each toolholder. K M R D T E F J L N (Customer Service) - Option 1 : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) (Technical Support) - Option 2 Contact your local Kyocera sales engineer to upgrade old products to new technology Visit us online at Kyocera N25
