1058 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M88

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M88 1058 Lab2u

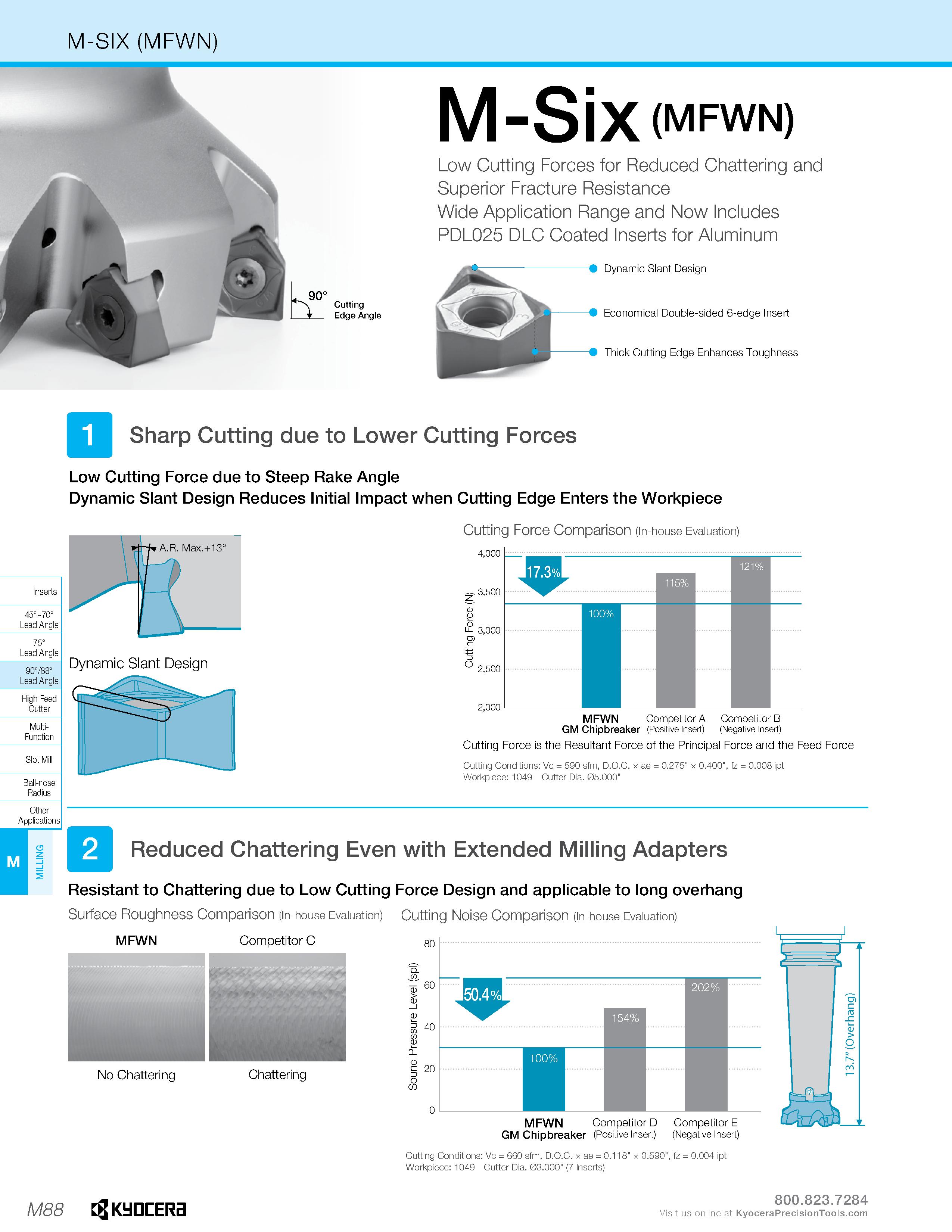

M-SIX (MFWN) M-Six (MFWN) Low Cutting Forces for Reduced Chattering and Superior Fracture Resistance Wide Application Range and Now Includes PDL025 DLC Coated Inserts for Aluminum 90° Cutting Edge Angle Dynamic Slant Design Economical Double-sided 6-edge Insert Thick Cutting Edge Enhances Toughness Sharp Cutting due to Lower Cutting Forces Low Cutting Force due to Steep Rake Angle Dynamic Slant Design Reduces Initial Impact when Cutting Edge Enters the Workpiece A.R. Max.+13° Cutting Force Comparison (in-house Evaluation) 4,000 115% 121% 1 1 2,000 MFWN Competitor A Competitor B GM Chipbreaker (Positive Insert) (Negative Insert) Cutting Force is the Resultant Force of the Principal Force and the Feed Force Cutting Conditions: Vc = 590 sfm, D.O.C. xae = 0.275" x 0.400", fz = 0.008 ipt Workpiece: 1049 Cutter Dia. 05.000" Reduced Chattering Even with Extended Milling Adapters Resistant to Chattering due to Low Cutting Force Design and applicable to long overhang Surface Roughness Comparison (in-house Evaluation) Cutting Noise Comparison (in-house Evaluation) MFWN Competitor C No Chattering Chattering 202% 100% 1 MFWN Competitor D Competitor E GM Chipbreaker (Positive Insert) (Negative Insert) Cutting Conditions: Vc = 660 sfm, D.O.C. xae = 0.118" > Workpiece: 1049 Cutter Dia. 03.000" (7 Inserts) 0.590", fz = 0.004 ipt M88 Kyocera Visit us online at
