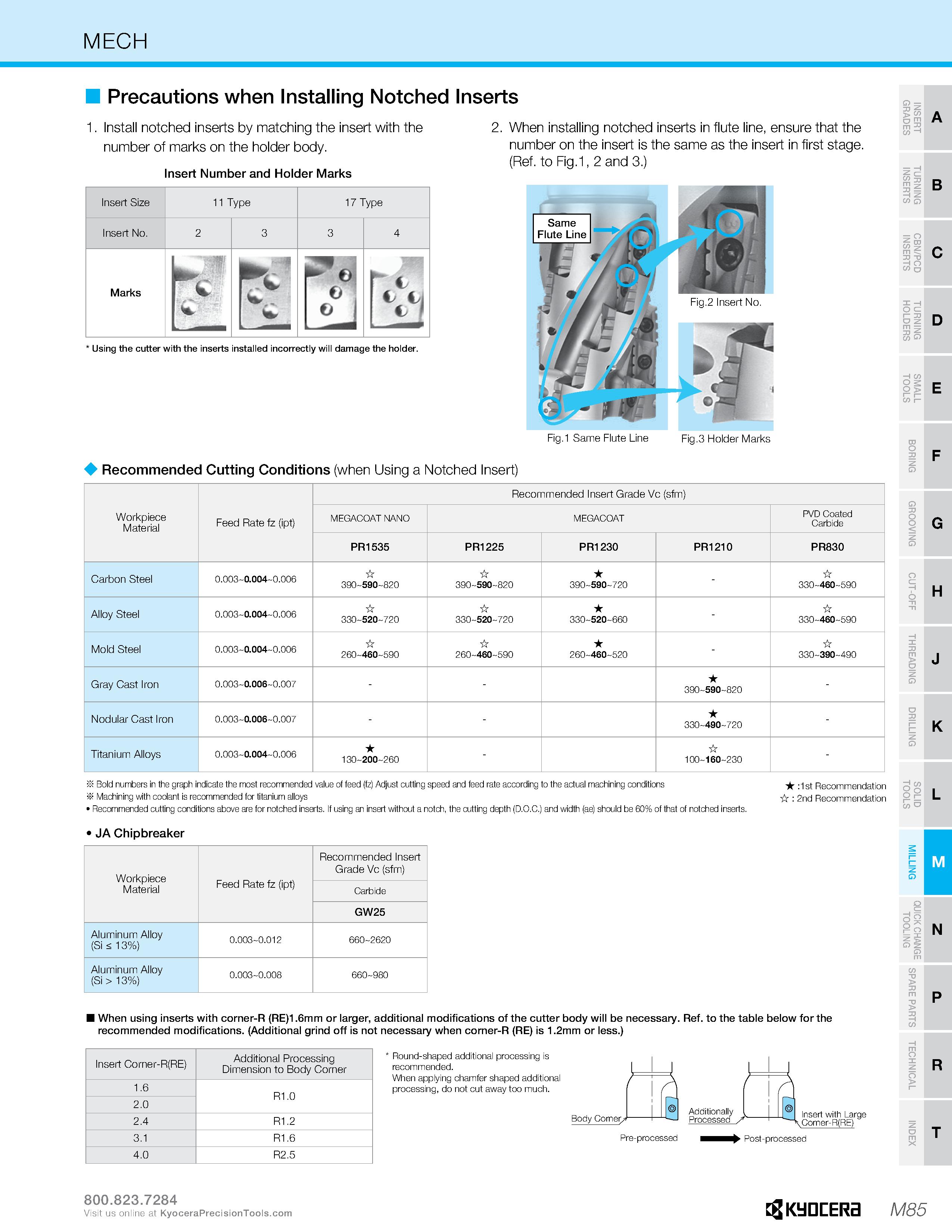

MECH Precautions when Installing Notched Inserts 1. Install notched inserts by matching the insert with the number of marks on the holder body. Insert Number and Holder Marks 2. When installing notched inserts in flute line, ensure that the number on the insert is the same as the insert in first stage. (Ref. to Fig.1, 2 and 3.) Fig.1 Same Flute Line Fig.3 Holder Marks 4 Recommended Cutting Conditions (when Using a Notched Insert) Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade Vc (sfm) MEGACOAT NANO MEGACOAT PVD Coated Carbide PR1535 PR1225 PR1230 PR1210 PR830 Carbon Steel 0.003-0.004-0.006 390-590-820 390-590-820 390-590-720 - 330-460-590 Alloy Steel 0.003-0.004-0.006 330-520-720 330-520-720 330-520-660 - 330-460-590 Mold Steel 0.003-0.004-0.006 260-460-590 260-460-590 260-460-520 - 330-390-490 Gray Cast Iron 0.003-0.006-0.007 - - 390-590-820 - Nodular Cast Iron 0.003-0.006-0.007 - - 330-490-720 - Titanium Alloys 0.003-0.004-0.006 130-200-260 - 100-160-230 - 33 33 C/> O 33 T3 S8 O cz I- 33 O m = W o 33 z Q B O CZ -H o > o Q H K % Bold numbers in the graph indicate the most recommended value of feed (fz) Adjust cutting speed and feed rate according to the actual machining conditions % Machining with coolant is recommended for titanium alloys Recommended cutting conditions above are for notched inserts. If using an insert without a notch, the cutting depth (D.O.C.) and width (ae) should be 60% of that of notched inserts. JA Chipbreaker :1st Recommendation it: 2nd Recommendation Workpiece Material Feed Rate fz ipt) Recommended Insert Grade Vc sfm) Carbide GW25 Aluminum Alloy Si 13%) 0.003-0.012 660-2620 Aluminum Alloy Si > 13%) 0.003-0.008 660-980 N I When using inserts with corner-R RE)1.6mm or larger, additional modifications of the cutter body will be necessary. Ref. to the table below for the recommended modifications. Additional grind off is not necessary when corner-R (RE) is 1.2mm or less.) Insert Corner-R(RE) Additional Processing Dimension to Body Corner 1.6 R1.0 2.0 2.4 R1.2 3.1 R1.6 4.0 R2.5 Round-shaped additional processing is recommended. When applying chamfer shaped additional processing, do not cut away too much. Body Cornell Additional ' Insert with Large yCorner-R(RE) Pre-processed Post-processed rflkunrcna Mac Visit us online at IxlJULClXd IVlOO
