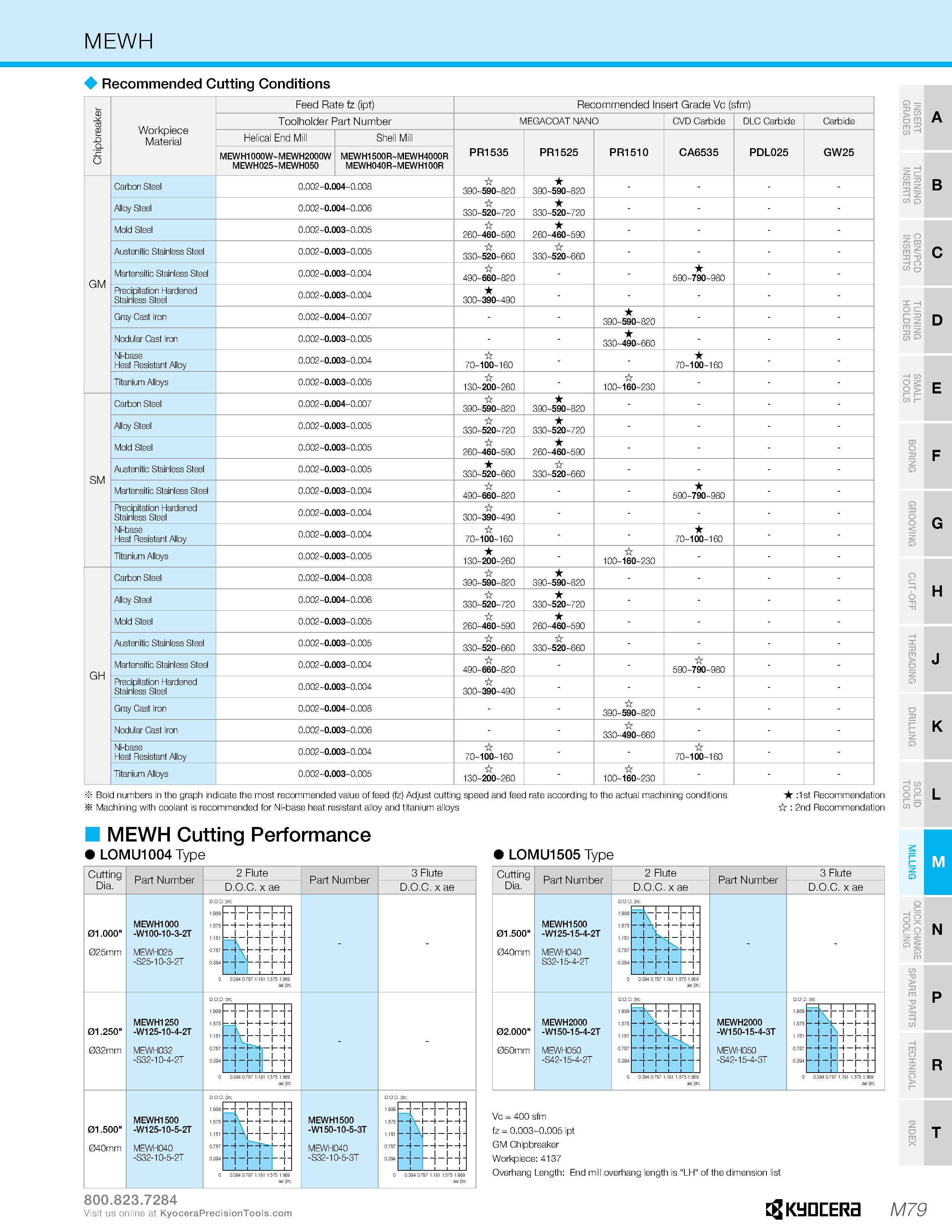

MEWH Recommended Cutting Conditions Chipbreaker Workpiece Material Feed Rate fz (ipt) Recommended Insert Grade Vc (sfm) Toolholder Part Number MEGACOAT NANO CVD Carbide DLC Carbide Carbide Helical End Mill Shell Mill PR1535 PR1525 PR1510 CA6535 PDL025 GW25 MEWH1000W-MEWH2000W MEWH 025-MEWH050 MEWH1500R-MEWH4000R MEWH040R-MEWH100R GM Carbon Steel 0.002-0.004-0.008 390-590-820 390-590-820 Alloy Steel 0.002-0.004-0.006 330-520-720 330-520-720 Mold Steel 0.002-0.003-0.005 260-460-590 260-460-590 Austen itic Stainless Steel 0.002-0.003-0.005 330-520-660 330-520-660 Martensitic Stainless Steel 0.002-0.003-0.004 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.002-0.003-0.004 300-390-490 Gray Cast Iron 0.002-0.004-0.007 390-590-820 Nodular Cast Iron 0.002-0.003-0.005 330-490-660 Ni-base Heat Resistant Alloy 0.002-0.003-0.004 70-100-160 70-100-160 Titanium Alloys 0.002-0.003-0.005 130-200-260 100-160-230 SM Carbon Steel 0.002-0.004-0.007 390-590-820 390-590-820 Alloy Steel 0.002-0.003-0.005 330-520-720 330-520-720 Mold Steel 0.002-0.003-0.005 260-460-590 260-460-590 Austen itic Stainless Steel 0.002-0.003-0.005 330-520-660 330-520-660 Martensitic Stainless Steel 0.002-0.003-0.004 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.002-0.003-0.004 300-390-490 Ni-base Heat Resistant Alloy 0.002-0.003-0.004 70-100-160 70-100-160 Titanium Alloys 0.002-0.003-0.005 130-200-260 100-160-230 GH Carbon Steel 0.002-0.004-0.008 390-590-820 390-590-820 Alloy Steel 0.002-0.004-0.006 330-520-720 330-520-720 Mold Steel 0.002-0.003-0.005 260-460-590 260-460-590 Austen itic Stainless Steel 0.002-0.003-0.005 330-520-660 330-520-660 Martensitic Stainless Steel 0.002-0.003-0.004 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.002-0.003-0.004 300-390-490 Gray Cast Iron 0.002-0.004-0.008 390-590-820 Nodular Cast Iron 0.002-0.003-0.006 330-490-660 Ni-base Heat Resistant Alloy 0.002-0.003-0.004 70-100-160 70-100-160 Titanium Alloys 0.002-0.003-0.005 130-200-260 100-160-230 O T> > £ o m m 2 c/> £ 5 Cr> CZ I- ZD O m = w o 33 z Q B O cz -H o > o z. Q H K % Bold numbers in the graph indicate the most recommended value of feed (fz) Adjust cutting speed and feed rate according to the actual machining conditions Machining with coolant is recommended for Ni-base heat resistant alloy and titanium alloys :1 st Recommendation it: 2nd Recommendation MEWH Cutting Performance LOMU1004 Type Cutting Dia. 01.000" 025mm 01.250" 032mm 01.500" 040mm Part Number MEWH1000 -W100-10-3-2T MEWH025 -S25-10-3-2T MEWH1250 -W125-10-4-2T MEWH032 -S32-10-4-2T MEWH1500 -W125-10-5-2T MEWH040 -S32-10-5-2T 2 Flute D.O.C. x ae I I I I I I I-Vl t-I \ I I I I I I I f-I I I I I Part Number MEWH1500 -W150-10-5-3T MEWH040 -S32-10-5-3T 3 Flute D.O.C. x ae I l l l I I I I I I I Visit us online at LOMU15Q5 Type Cutting Dia. 01.500" 040mm 02.000" 050mm Part Number MEWH1500 -W125-15-4-2T MEWH040 S32-15-4-2T MEWH2000 -W150-15-4-2T MEWH050 -S42-15-4-2T 2 Flute D.O.C. x ae I I i\ i i -hAi-4-i : I 1 1 \-1 1 Xi Part Number MEWH2000 -W150-15-4-3T MEWH050 -S42-15-4-3T 3 Flute D.O.C. x ae k 1 1 1 1 l\l l l I I I I I I i ± i I I I I I l i i i I I I -4-1 -1 1 1 ITT" Vc - 400 sfm fz = 0.003-0.005 ipt GM Chipbreaker Workpiece: 4137 Overhang Length: End mill overhang length is “LIT of the dimension list N Kyocera M79
