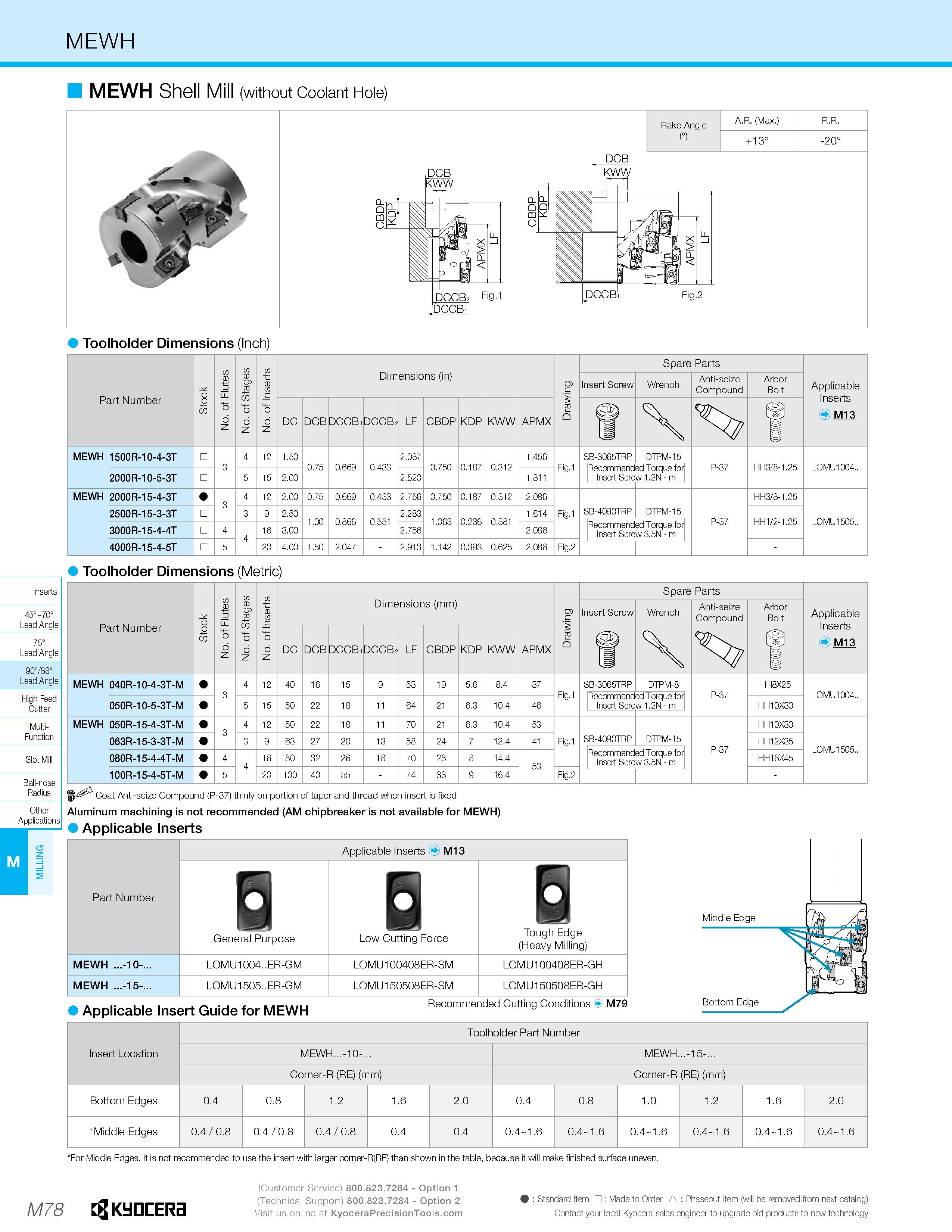

MEWH MEWH Shell Mill (without Coolant Hole) A.R. (Max.) +13° Rake Angle n Toolholder Dimensions (Inch) Part Number Stock No. of Flutes No. of Stages No. of Inserts Dimensions (in) Drawing Spare Parts Applicable Inserts M13 Insert Screw Wrench Anti-seize Compound Arbor Bolt DC DCB DCCBi DCCB2 LF CBDP KDP KWW APMX f MEWH 1500R-10-4-3T 3 4 12 1.50 0.75 0.669 0.433 2.087 0.750 0.187 0.312 1.456 Fig. 1 B-3065TRP DTPM-15 P-37 HH3/8-1.25 LOMU1004.. 2000R-10-5-3T 5 15 2.00 2.520 1.811 Hecommenaea lorqueior Insert Screw 1.2N m MEWH 2000R-15-4-3T 3 4 12 2.00 0.75 0.669 0.433 2.756 0.750 0.187 0.312 2.086 Fig.1 P-37 HH3/8-1.25 LOMU1505.. 2500R-15-3-3T 3 9 2.50 1.00 0.866 0.551 2.283 1.063 0.236 0.381 1.614 B-4090TRP DTPM-15 HH1/2-1.25 3000R-15-4-4T 4 4 16 3.00 2.756 2.086 Recommended Torque for Insert Screw 3.5N m 4000R-15-4-5T 5 20 4.00 1.50 2.047 2.913 1.142 0.393 0.625 2.086 Fig.2 I Toolholder Dimensions (Metric) Part Number Stock No. of Flutes No. of Stages No. of Inserts Dimensions (mm) Drawing Spare Parts Applicable Inserts M13 Insert Screw Wrench Anti-seize Compound Arbor Bolt DC DCB DCCBi DCCB2 LF CBDP KDP KWW APMX f \ MEWH 040R-10-4-3T-M 3 4 12 40 16 15 9 53 19 5.6 8.4 37 Fig. 1 B-3065TRP DTPM-8 P-37 HH8X25 LOMU1004.. 050R-10-5-3T-M 5 15 50 22 18 11 64 21 6.3 10.4 46 Insert Screw 1.2N m HH10X30 MEWH 050R-15-4-3T-M 3 4 12 50 22 18 11 70 21 6.3 10.4 53 Fig.1 P-37 HH10X30 LOMU1505.. 063R-15-3-3T-M 3 9 63 27 20 13 58 24 7 12.4 41 B-4090TRP DTPM-15 HH12X35 080R-15-4-4T-M 4 4 16 80 32 26 18 70 28 8 14.4 53 Recommended Torque for Insert Screw 3.5N m HH16X45 100R-15-4-5T-M 5 20 100 40 55 74 33 9 16.4 Fig.2 I 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed Aluminum machining is not recommended AM chipbreaker is not available for MEWH) Applicable Inserts Part Number Applicable Inserts M13 D General Purpose Q Low Cutting Force B Tough Edge (Heavy Milling) MEWH ...-10-... LOMU1004.. ER-GM LOMU100408ER-SM LOMU100408ER-GH MEWH ...-15-... LOMU15CI5.. ER-GM LOMU150508ER-SM LOMU150508ER-GH Applicable Insert Guide for MEWH Recommended Cutting Conditions M79 Insert Location Toolholder Part Number MEWH...-10-... MEWH...-15-... Corner-R (RE) (mm) Corner-R (RE) (mm) Bottom Edges 0.4 0.8 1.2 1.6 2.0 0.4 0.8 1.0 1.2 1.6 2.0 Middle Edges 0.4/0.8 0.4/0.8 0.4/0.8 0.4 0.4 0.4-1.6 0.4-1.6 0.4-1.6 0.4-1.6 0.4-1.6 0.4-1.6 For Middle Edges, it is not recommended to use the insert with larger corner-R(RE) than shown in the table, because it will make finished surface uneven. M78 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
