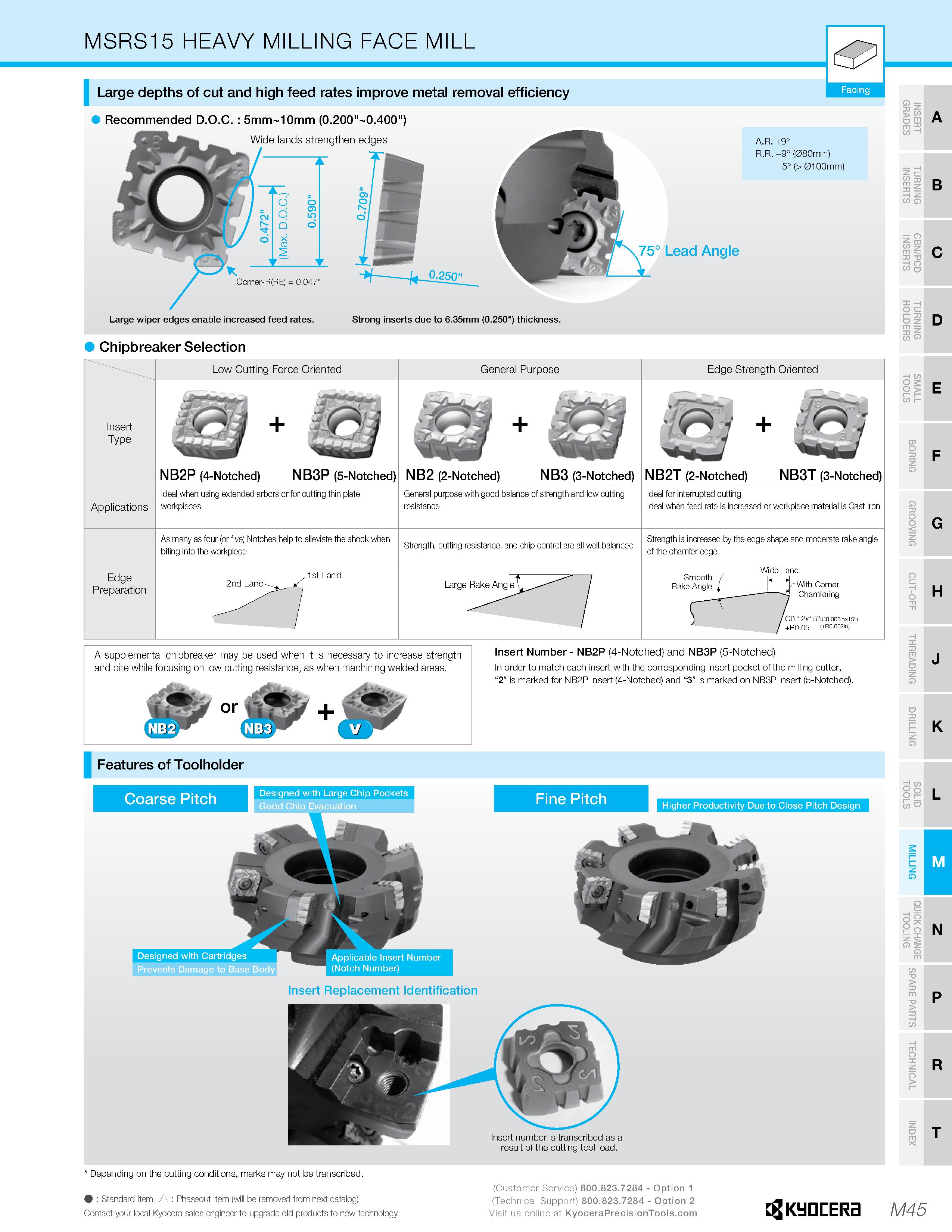

Facing MSRS15 HEAVY MILLING FACE MILL A.R. +9° R.R. -9° (080mm) -5° (> 0100mm) Angle Large depths of cut and high feed rates improve metal Recommended D.O.C.: 5mm 10mm (0.200" 0.400") Wide lands strengthen edges removal efficiency Corner-R(RE) = 0.047" Large wiper edges enable increased feed rates. Strong inserts due to 6.35mm (0.250") thickness. Chipbreaker Selection B Low Cutting Force Oriented General Purpose Edge Strength Oriented Insert Type Applications Edge Preparation Ideal when using extended arbors or for cutting thin plate workpieces As many as four (or five) Notches help to alleviate the shock when biting into the workpiece General purpose with good balance of strength and low cutting resistance Strength, cutting resistance, and chip control are all well balanced for interrupted cutting l when feed rate is increased or workpiece material is Cast Iron Strength is increased by the edge shape and moderate rake angle of the chamfer edge Large Rake Angle CO. 12x1 5°(C0.005inx15' +R0.05 (i R0.002in) H A supplemental chipbreaker may be used when it is necessary to increase strength and bite while focusing on low cutting resistance, as when machining welded areas. or 'Mi Features of Toolholder Insert Number - NB2P (4-Notched) and NB3P (5-Notched) In order to match each insert with the corresponding insert pocket of the milling cutter, “2” is marked for NB2P insert (4-Notched) and “3” is marked on NB3P insert (5-Notched). K Coarse Pitch Designed with Large Chip Pockets Good Chip Evacuation Fine Pitch Higher Productivity Due to Close Pitch Design Depending on the cutting conditions, marks may not be transcribed. NB2P (4-Notched) NB3P (5-Notched) NB2 (2-Notched) NB3 (3-Notched) NB2T (2-Notched) NB3T (3-Notched) Insert Replacement Identification Insert number is transcribed as a result of the cutting tool load. : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M45
