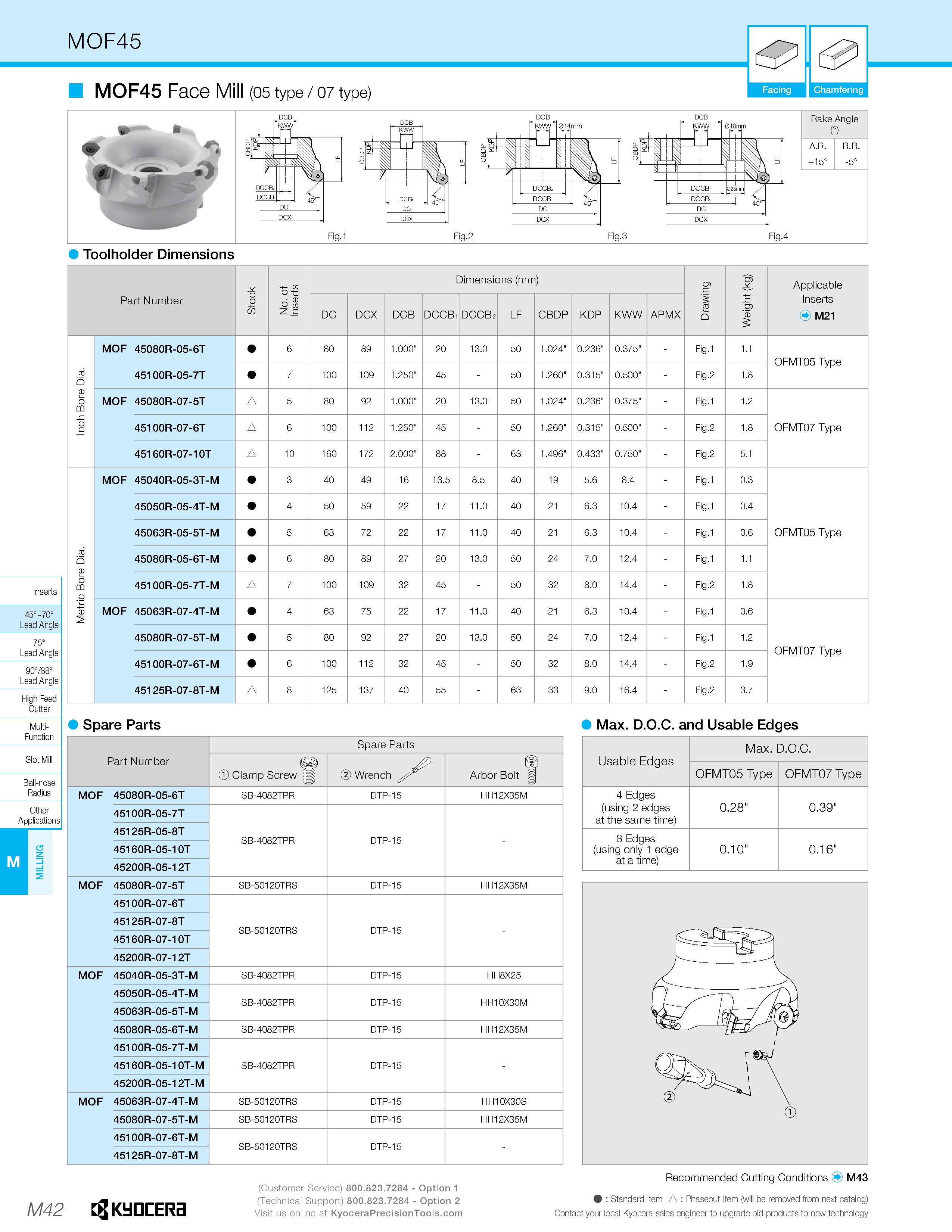

MOF45 5 & MOF45 Face Mill (05 type / 07 type) Facing Chamfering Fig.1 Fig.2 Rake Angle n Toolholder Dimensions 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Part Number Stock No. of Inserts Dimensions (mm) Drawing Weight (kg) Applicable Inserts 3> M21 DC DCX DCB DCCBi DCCB2 LF CBDP KDP KWW APMX Inch Bore Dia. MOF 45080R-05-6T 6 80 89 1.000" 20 13.0 50 1.024" 0.236" 0.375" - Fig.1 1.1 OFMTO5 Type 45100R-05-7T 7 100 109 1.250" 45 - 50 1.260" 0.315" 0.500" - Fig.2 1.8 MOF 45080R-07-5T 5 80 92 1.000" 20 13.0 50 1.024" 0.236" 0.375" - Fig.1 1.2 OFMTO7 Type 45100R-07-6T 6 100 112 1.250" 45 - 50 1.260" 0.315" 0.500" - Fig.2 1.8 45160R-07-10T 10 160 172 2.000" 88 - 63 1.496" 0.433" 0.750" - Fig.2 5.1 Metric Bore Dia. MOF 45040R-05-3T-M 3 40 49 16 13.5 8.5 40 19 5.6 8.4 - Fig.1 0.3 OFMT05 Type 45050R-05-4T-M 4 50 59 22 17 11.0 40 21 6.3 10.4 - Fig.1 0.4 45063R-05-5T-M 5 63 72 22 17 11.0 40 21 6.3 10.4 - Fig.1 0.6 45080R-05-6T-M 6 80 89 27 20 13.0 50 24 7.0 12.4 - Fig.1 1.1 45100R-05-7T-M 7 100 109 32 45 - 50 32 8.0 14.4 - Fig.2 1.8 MOF 45063R-07-4T-M 4 63 75 22 17 11.0 40 21 6.3 10.4 - Fig.1 0.6 QFMT07 Type 45080R-07-5T-M 5 80 92 27 20 13.0 50 24 7.0 12.4 - Fig.1 1.2 45100R-07-6T-M 6 100 112 32 45 - 50 32 8.0 14.4 - Fig.2 1.9 45125R-07-8T-M 8 125 137 40 55 - 63 33 9.0 16.4 - Fig.2 3.7 Spare Parts Max. D.O.C. and Usable Edges Part Number Spare Parts Clamp Screw jjj (D Wrench Arbor Bolt MOF 45080R-05-6T SB-4082TPR DTP-15 HH12X35M 45100R-05-7T SB-4082TPR DTP-15 - 45125R-05-8T 45160R-05-10T 45200R-05-12T MOF 45080R-07-5T SB-50120TRS DTP-15 HH12X35M 45100R-07-6T SB-50120TRS DTP-15 - 45125R-07-8T 45160R-07-10T 45200R-07-12T MOF 45040R-05-3T-M SB-4082TPR DTP-15 HH8X25 45050R-05-4T-M SB-4082TPR DTP-15 HH10X30M 45063R-05-5T-M 45080R-05-6T-M SB-4082TPR DTP-15 HH12X35M 45100R-05-7T-M SB-4082TPR DTP-15 - 45160R-05-10T-M 45200R-05-12T-M MOF 45063R-07-4T-M SB-50120TRS DTP-15 HH10X30S 45080R-07-5T-M SB-50120TRS DTP-15 HH12X35M 45100R-07-6T-M SB-50120TRS DTP-15 - 45125R-07-8T-M Usable Edges Max. D.O.C. OFMT05 Type OFMTO7 Type 4 Edges (using 2 edges at the same time) 0.28" 0.39" 8 Edges (using only 1 edge at a time) 0.10" 0.16" M42 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Recommended Cutting Conditions M43 : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
