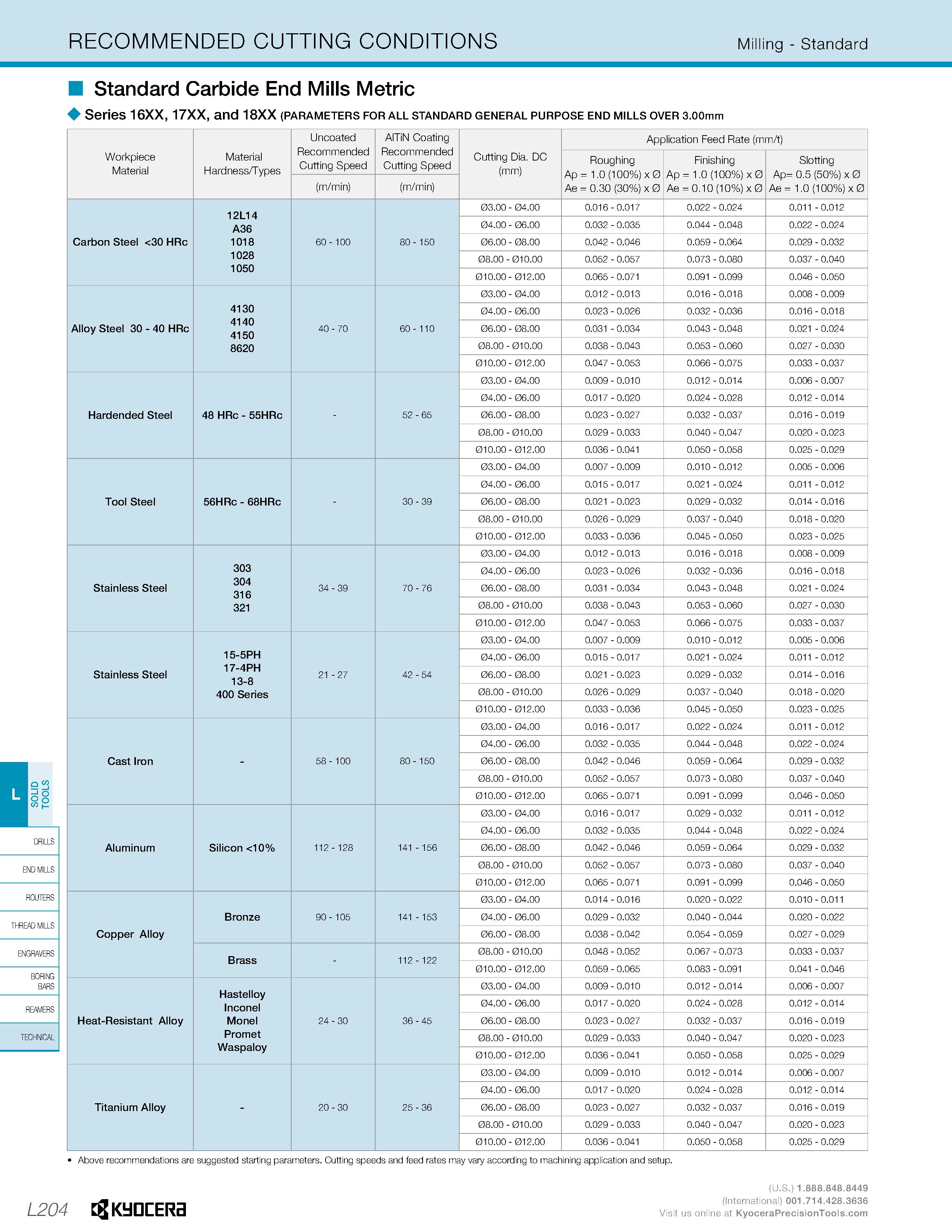

RECOMMENDED CUTTING CONDITIONS Milling - Standard Standard Carbide End Mills Metric Series 16XX, 17XX, and 18XX (parameters for all standard general purpose end mills over 3.00mm DRILLS END MILLS ROUTERS THREAD MILLS ENGRAVERS BORING BARS REAMERS TECHNICAL Workpiece Material Material Hardness/Types Uncoated Recommended Cutting Speed AlTiN Coating Recommended Cutting Speed Cutting Dia. DC (mm) Application Feed Rate (mm/t) Roughing Ap = 1.0 (100%) x 0 Ae = 0.30 (30%) x 0 Finishing Ap = 1.0 (100%) x 0 Ae = 0.10 (10%) x 0 Slotting Ap= 0.5 (50%) x 0 Ae = 1.0 (100%) x 0 (m/min) (m/min) Carbon Steel 30 HRc 12L14 A36 1018 1028 1050 60 - 100 80 - 150 03.00 04.00 0.016 0.017 0.022 0.024 0.011 - 0.012 04.00 06.00 0.032 0.035 0.044 0.048 0.022 - 0.024 06.00 08.00 0.042 0.046 0.059 0.064 0.029 - 0.032 08.00 - 010.00 0.052 0.057 0.073 0.080 0.037 - 0.040 010.00 012.00 0.065 0.071 0.091 0.099 0.046 - 0.050 Alloy Steel 30 - 40 HRc 4130 4140 4150 8620 40 70 60 - 110 03.00 04.00 0.012 0.013 0.016 0.018 0.008 - 0.009 04.00 06.00 0.023 0.026 0.032 0.036 0.016 - 0.018 06.00 08.00 0.031 0.034 0.043 0.048 0.021 - 0.024 08.00 - 010.00 0.038 0.043 0.053 0.060 0.027 - 0.030 010.00 012.00 0.047 0.053 0.066 0.075 0.033 - 0.037 Hardended Steel 48 HRc - 55HRc - 52 65 03.00 04.00 0.009 0.010 0.012 0.014 0.006 - 0.007 04.00 06.00 0.017 0.020 0.024 0.028 0.012 - 0.014 06.00 08.00 0.023 0.027 0.032 0.037 0.016 - 0.019 08.00 - 010.00 0.029 0.033 0.040 0.047 0.020 - 0.023 010.00 012.00 0.036 0.041 0.050 0.058 0.025 - 0.029 Tool Steel 56HRc 68HRc - 30 39 03.00 04.00 0.007 0.009 0.010 0.012 0.005 - 0.006 04.00 06.00 0.015 0.017 0.021 0.024 0.011 - 0.012 06.00 08.00 0.021 0.023 0.029 0.032 0.014 - 0.016 08.00 - 010.00 0.026 0.029 0.037 0.040 0.018 - 0.020 010.00 012.00 0.033 0.036 0.045 0.050 0.023 - 0.025 Stainless Steel 303 304 316 321 34 39 70 76 03.00 04.00 0.012 0.013 0.016 0.018 0.008 - 0.009 04.00 06.00 0.023 0.026 0.032 0.036 0.016 - 0.018 06.00 08.00 0.031 0.034 0.043 0.048 0.021 - 0.024 08.00 - 010.00 0.038 0.043 0.053 0.060 0.027 - 0.030 010.00 012.00 0.047 0.053 0.066 0.075 0.033 - 0.037 Stainless Steel 15-5PH 17-4PH 13-8 400 Series 21 27 42 54 03.00 04.00 0.007 0.009 0.010 0.012 0.005 - 0.006 04.00 06.00 0.015 0.017 0.021 0.024 0.011 - 0.012 06.00 08.00 0.021 0.023 0.029 0.032 0.014 - 0.016 08.00 - 010.00 0.026 0.029 0.037 0.040 0.018 - 0.020 010.00 012.00 0.033 0.036 0.045 0.050 0.023 - 0.025 Cast Iron 58 - 100 80 - 150 03.00 04.00 0.016 0.017 0.022 0.024 0.011 - 0.012 04.00 06.00 0.032 0.035 0.044 0.048 0.022 - 0.024 06.00 08.00 0.042 0.046 0.059 0.064 0.029 - 0.032 08.00 - 010.00 0.052 0.057 0.073 0.080 0.037 - 0.040 010.00 012.00 0.065 0.071 0.091 0.099 0.046 - 0.050 Aluminum Silicon 10% 112 128 141 156 03.00 04.00 0.016 0.017 0.029 0.032 0.011 - 0.012 04.00 06.00 0.032 0.035 0.044 0.048 0.022 - 0.024 06.00 08.00 0.042 0.046 0.059 0.064 0.029 - 0.032 08.00 - 010.00 0.052 0.057 0.073 0.080 0.037 - 0.040 010.00 012.00 0.065 0.071 0.091 0.099 0.046 - 0.050 Copper Alloy Bronze 90 - 105 141 153 03.00 04.00 0.014 0.016 0.020 0.022 0.010 - 0.011 04.00 06.00 0.029 0.032 0.040 0.044 0.020 - 0.022 06.00 08.00 0.038 0.042 0.054 0.059 0.027 - 0.029 Brass - 112 122 08.00 - 010.00 0.048 0.052 0.067 0.073 0.033 - 0.037 010.00 012.00 0.059 0.065 0.083 0.091 0.041 - 0.046 Heat-Resistant Alloy Hastelloy Inconel Monel Promet Waspaloy 24 30 36 45 03.00 04.00 0.009 0.010 0.012 0.014 0.006 - 0.007 04.00 06.00 0.017 0.020 0.024 0.028 0.012 - 0.014 06.00 08.00 0.023 0.027 0.032 0.037 0.016 - 0.019 08.00 - 010.00 0.029 0.033 0.040 0.047 0.020 - 0.023 010.00 012.00 0.036 0.041 0.050 0.058 0.025 - 0.029 Titanium Alloy 20 30 25 36 03.00 04.00 0.009 0.010 0.012 0.014 0.006 - 0.007 04.00 06.00 0.017 0.020 0.024 0.028 0.012 - 0.014 06.00 08.00 0.023 0.027 0.032 0.037 0.016 - 0.019 08.00 - 010.00 0.029 0.033 0.040 0.047 0.020 - 0.023 010.00 012.00 0.036 0.041 0.050 0.058 0.025 - 0.029 Above recommendations are suggested starting parameters. Cutting speeds and feed rates may vary according to machining application and setup. L204 Kyocera (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at
