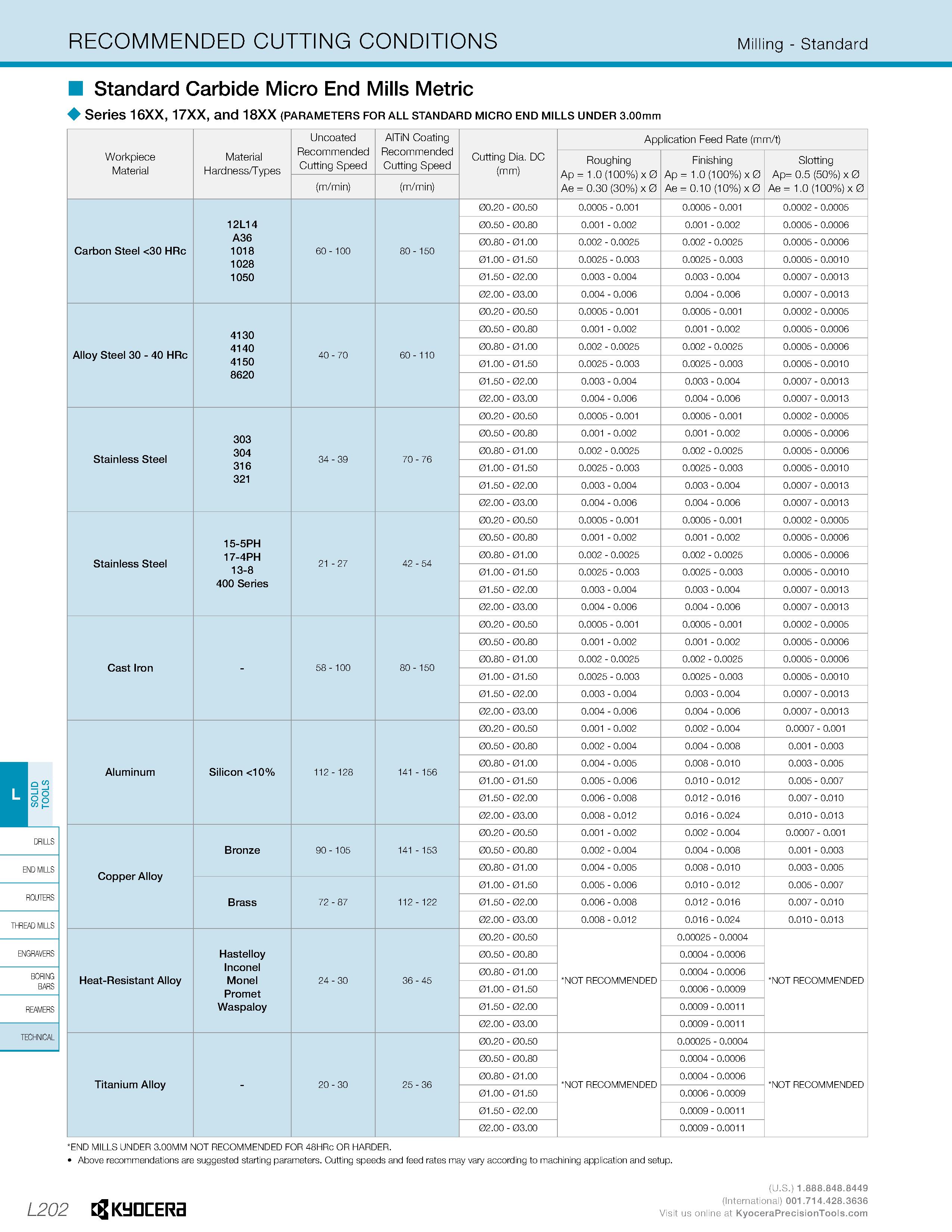

RECOMMENDED CUTTING CONDITIONS Milling - Standard Standard Carbide Micro End Mills Metric Series 16XX, 17XX, and 18XX (parameters for all standard micro end mills under 3.00mm DRILLS END MILLS ROUTERS THREAD MILLS ENGRAVERS BORING BARS REAMERS TECHNICAL Workpiece Material Material Hardness/Types Uncoated Recommended Cutting Speed AlTiN Coating Recommended Cutting Speed Cutting Dia. DC (mm) Application Feed Rate (mm/t) Roughing Ap = 1.0 (100%) x 0 Ae = 0.30 (30%) x 0 Finishing Ap = 1.0 (100%) x 0 Ae = 0.10 (10%) x 0 Slotting Ap= 0.5 (50%) x 0 Ae = 1.0 (100%) x 0 (m/min) (m/min) Carbon Steel 30 HRc 12L14 A36 1018 1028 1050 60 - 100 80 - 150 00.20 00.50 0.0005 - 0.001 0.0005 - 0.001 0.0002 - 0.0005 00.50 00.80 0.001 0.002 0.001 0.002 0.0005 - 0.0006 00.80 01.00 0.002 - 0.0025 0.002 - 0.0025 0.0005 - 0.0006 01.00 01.50 0.0025 - 0.003 0.0025 - 0.003 0.0005 - 0.0010 01.50 02.00 0.003 0.004 0.003 0.004 0.0007 - 0.0013 02.00 03.00 0.004 0.006 0.004 0.006 0.0007 - 0.0013 Alloy Steel 30 - 40 HRc 4130 4140 4150 8620 40 70 60 - 110 00.20 00.50 0.0005 - 0.001 0.0005 - 0.001 0.0002 - 0.0005 00.50 00.80 0.001 0.002 0.001 0.002 0.0005 - 0.0006 00.80 01.00 0.002 - 0.0025 0.002 - 0.0025 0.0005 - 0.0006 01.00 01.50 0.0025 - 0.003 0.0025 - 0.003 0.0005 - 0.0010 01.50 02.00 0.003 0.004 0.003 0.004 0.0007 - 0.0013 02.00 03.00 0.004 0.006 0.004 0.006 0.0007 - 0.0013 Stainless Steel 303 304 316 321 34 39 70 76 00.20 00.50 0.0005 - 0.001 0.0005 - 0.001 0.0002 - 0.0005 00.50 00.80 0.001 0.002 0.001 0.002 0.0005 - 0.0006 00.80 01.00 0.002 - 0.0025 0.002 - 0.0025 0.0005 - 0.0006 01.00 01.50 0.0025 - 0.003 0.0025 - 0.003 0.0005 - 0.0010 01.50 02.00 0.003 0.004 0.003 0.004 0.0007 - 0.0013 02.00 03.00 0.004 0.006 0.004 0.006 0.0007 - 0.0013 Stainless Steel 15-5PH 17-4PH 13-8 400 Series 21 27 42 54 00.20 00.50 0.0005 - 0.001 0.0005 - 0.001 0.0002 - 0.0005 00.50 00.80 0.001 0.002 0.001 0.002 0.0005 - 0.0006 00.80 01.00 0.002 - 0.0025 0.002 - 0.0025 0.0005 - 0.0006 01.00 01.50 0.0025 - 0.003 0.0025 - 0.003 0.0005 - 0.0010 01.50 02.00 0.003 0.004 0.003 0.004 0.0007 - 0.0013 02.00 03.00 0.004 0.006 0.004 0.006 0.0007 - 0.0013 Cast Iron 58 - 100 80 - 150 00.20 00.50 0.0005 - 0.001 0.0005 - 0.001 0.0002 - 0.0005 00.50 00.80 0.001 0.002 0.001 0.002 0.0005 - 0.0006 00.80 01.00 0.002 - 0.0025 0.002 - 0.0025 0.0005 - 0.0006 01.00 01.50 0.0025 - 0.003 0.0025 - 0.003 0.0005 - 0.0010 01.50 02.00 0.003 0.004 0.003 0.004 0.0007 - 0.0013 02.00 03.00 0.004 0.006 0.004 0.006 0.0007 - 0.0013 Aluminum Silicon 10% 112 128 141 156 00.20 00.50 0.001 0.002 0.002 0.004 0.0007 - 0.001 00.50 00.80 0.002 0.004 0.004 0.008 0.001 - 0.003 00.80 01.00 0.004 0.005 0.008 0.010 0.003 - 0.005 01.00 01.50 0.005 0.006 0.010 0.012 0.005 - 0.007 01.50 02.00 0.006 0.008 0.012 0.016 0.007 - 0.010 02.00 03.00 0.008 0.012 0.016 0.024 0.010 - 0.013 Copper Alloy Bronze 90 - 105 141 153 00.20 00.50 0.001 0.002 0.002 0.004 0.0007 - 0.001 00.50 00.80 0.002 0.004 0.004 0.008 0.001 - 0.003 00.80 01.00 0.004 0.005 0.008 0.010 0.003 - 0.005 Brass 72 87 112 122 01.00 01.50 0.005 0.006 0.010 0.012 0.005 - 0.007 01.50 02.00 0.006 0.008 0.012 0.016 0.007 - 0.010 02.00 03.00 0.008 0.012 0.016 0.024 0.010 - 0.013 Heat-Resistant Alloy Hastelloy Inconel Monel Promet Waspaloy 24 30 36 45 00.20 00.50 NOT RECOMMENDED 0.00025 - 0.0004 NOT RECOMMENDED 00.50 00.80 0.0004 0.0006 00.80 01.00 0.0004 0.0006 01.00 01.50 0.0006 0.0009 01.50 02.00 0.0009 0.0011 02.00 03.00 0.0009 0.0011 Titanium Alloy 20 30 25 36 00.20 00.50 NOT RECOMMENDED 0.00025 - 0.0004 NOT RECOMMENDED 00.50 00.80 0.0004 0.0006 00.80 01.00 0.0004 0.0006 01.00 01.50 0.0006 0.0009 01.50 02.00 0.0009 0.0011 02.00 03.00 0.0009 0.0011 END MILLS UNDER 3.00MM NOT RECOMMENDED FOR 48HRc OR HARDER. Above recommendations are suggested starting parameters. Cutting speeds and feed rates may vary according to machining application and setup. L202 Kyocera (U.S.) 1.888.848.8449 (International) 001.714.428.3636 Visit us online at
