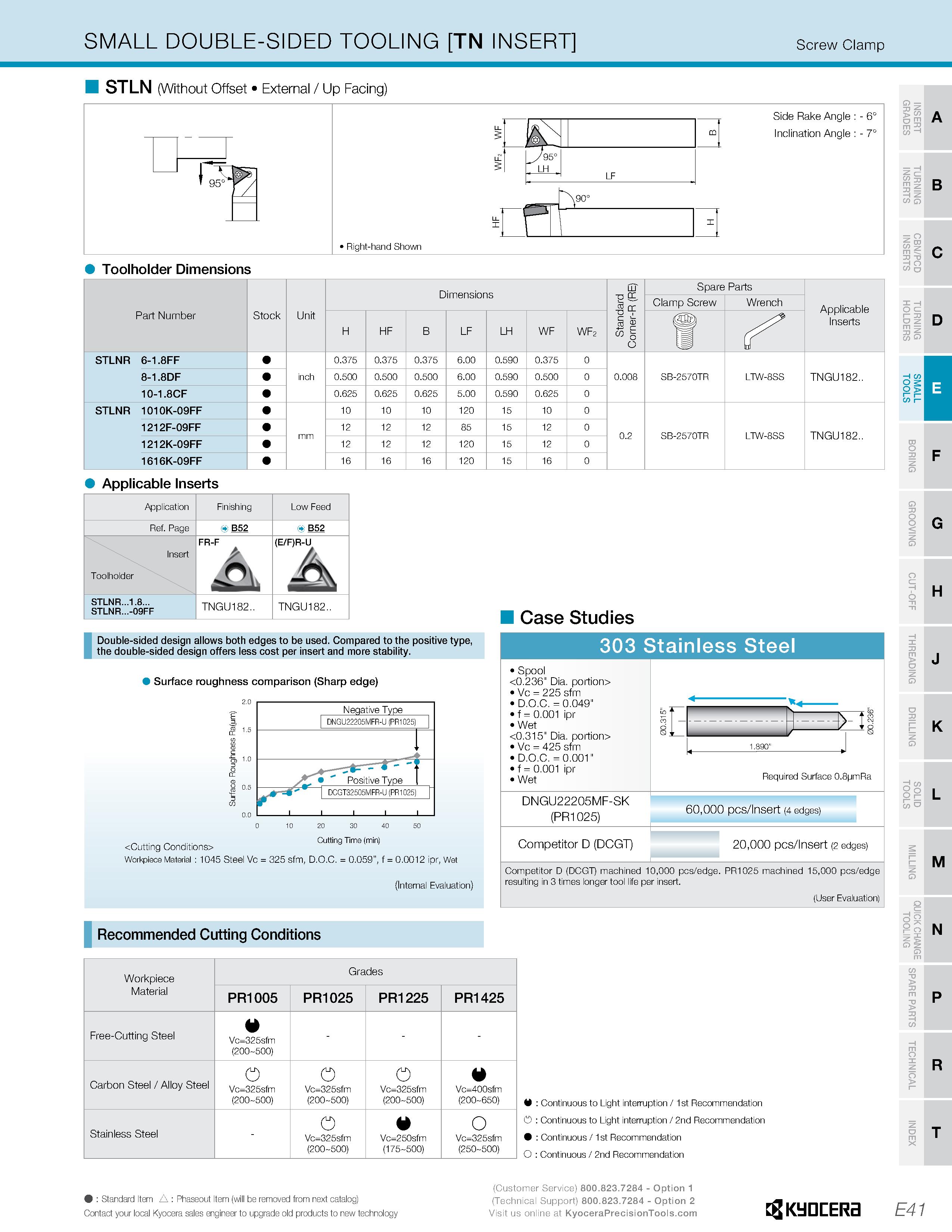

271 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.E41

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. E41 0271 Lab2u

SMALL DOUBLE-SIDED TOOLING TN INSERT Screw Clamp STLN (Without Offset External / Up Facing) l\x'' cm LH LF Side Rake Angle : - 6° Inclination Angle : - 7° \90° Right-hand Shown Toolholder Dimensions Applicable Inserts Application Finishing Low Feed Ref. Page & B52 & B52 Insert Toolholder FR-F A (E/F)R-U A STLNR...1.8... STLNR...-09FF TNGU182.. TNGU182.. Case Studies I Double-sided design allows both edges to be used. Compared to the positive type, the double-sided design offers less cost per insert and more stability. 303 Stainless Steel Surface roughness comparison Sharp edge) „ , Cutting Time (min) cCutting Conditions> Workpiece Material : 1045 Steel Vc = 325 sfm, D.O.C. = 0.059”, f = 0.0012 ipr, Wet Internal Evaluation) Part Number Stock Unit Dimensions Standard Corner-R RE) Spare Parts Applicable Inserts Clamp Screw Wrench H HF B LF LH WF wf2 u STLNR 6-1.8FF inch 0.375 0.375 0.375 6.00 0.590 0.375 0 0.008 SB-2570TR LTW-8SS TNGU182.. 8-1.8DF 0.500 0.500 0.500 6.00 0.590 0.500 0 10-1.8CF 0.625 0.625 0.625 5.00 0.590 0.625 0 STLNR 1010K-09FF mm 10 10 10 120 15 10 0 0.2 SB-2570TR LTW-8SS TNGU182.. 1212F-09FF 12 12 12 85 15 12 0 1212K-09FF 12 12 12 120 15 12 0 1616K-09FF 16 16 16 120 15 16 0 Spool 0.236" Dia. portion> Vc = 225 sfm D.O.C. = 0.049" f = 0.001 ipr Wet 0.315" Dia. portion> Vc = 425 sfm D.O.C. = 0.001" f = 0.001 ipr Wet 4 - 52T \ ts d oi / TO 1.890" Required Surface 0.8pmRa DNGU22205MF-SK (PR1025) 60,000 pcs/lnsert (4 edges) Competitor D (DCGT) 20,000 pcs/lnsert (2 edges) Competitor D (DCGT) machined 10,000 pcs/edge. PR1025 machined 15,000 pcs/edge resulting in 3 times longer tool life per insert. (User Evaluation) Recommended Cutting Conditions Workpiece Grades Material PR1005 PR1025 PR1225 PR1425 Free-Cutting Steel Vc=325sfm (200-500) - - - Carbon Steel / Alloy Steel O Vc=325sfm (200-500) o Vc=325sfm (200-500) o Vc=325sfm (200-500) Vc=400sfm (200-650) Stainless Steel - O Vc=325sfm (200-500) Vc=250sfm (175-500) O Vc=325sfm (250-500) : Continuous to Light interruption / 1 st Recommendation O : Continuous to Light interruption /2nd Recommendation : Continuous / 1 st Recommendation O : Continuous / 2nd Recommendation =5 > £ m 2 c/> “ C/> Q O cz I- T> O m = B H K M N : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera E41
