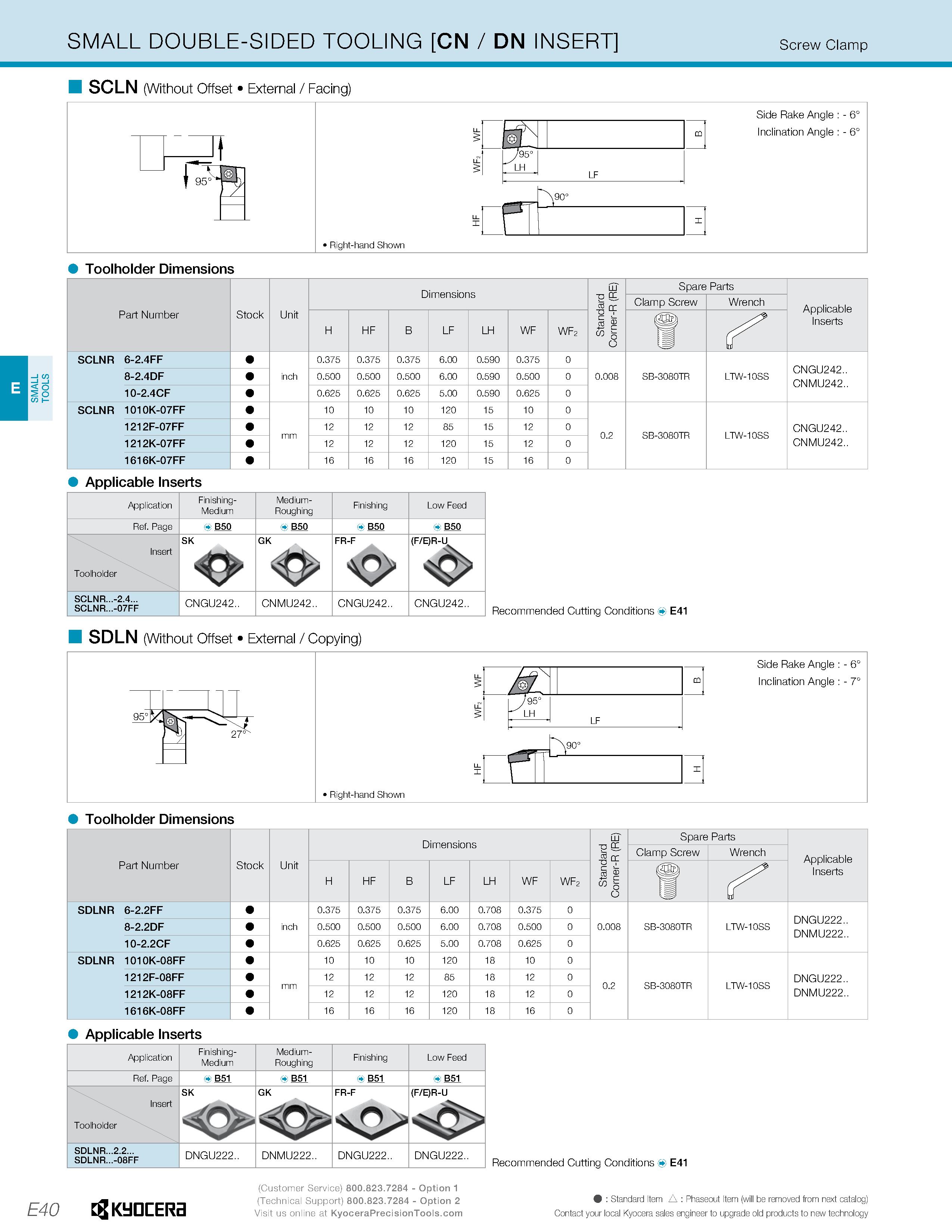

SMALL TOOLS SMALL DOUBLE-SIDED TOOLING CN / DN INSERT Screw Clamp H SCLN (Without Offset External / Facing) 95 iy LH CD LF Side Rake Angle : - 6° Inclination Angle : - 6° 90° Right-hand Shown Toolholder Dimensions Part Number Stock Unit Dimensions Standard Corner-R (RE) Spare Parts Applicable Inserts Clamp Screw Wrench H HF B LF LH WF wf2 u SCLNR 6-2.4FF inch 0.375 0.375 0.375 6.00 0.590 0.375 0 0.008 SB-3080TR LTW-1 OSS CNGU242.. CNMU242.. 8-2.4DF 0.500 0.500 0.500 6.00 0.590 0.500 0 10-2.4CF 0.625 0.625 0.625 5.00 0.590 0.625 0 SCLNR 1010K-07FF mm 10 10 10 120 15 10 0 0.2 SB-3080TR LTW-1 OSS CNGU242.. CNMU242.. 1212F-07FF 12 12 12 85 15 12 0 1212K-07FF 12 12 12 120 15 12 0 1616K-07FF 16 16 16 120 15 16 0 Applicable Inserts Application Finishing- Medium Medium- Roughing Finishing Low Feed Ref. Page B50 B50 B50 B50 Insert Toolholder SK o GK 0 FR-F (F/E)R-U SCLNR...-2.4... SCLNR...-07FF CNGU242.. CNMU242.. CNGU242.. CNGU242.. Recommended Cutting Conditions E41 SDLN (Without Offset External / Copying) Toolholder Dimensions Part Number Stock Unit Dimensions Standard Corner-R (RE) Spare Parts Applicable Inserts Clamp Screw Wrench H HF B LF LH WF wf2 u SDLNR 6-2.2FF inch 0.375 0.375 0.375 6.00 0.708 0.375 0 0.008 SB-3080TR LTW-1 OSS DNGU222.. DNMU222.. 8-2.2DF 0.500 0.500 0.500 6.00 0.708 0.500 0 10-2.2CF 0.625 0.625 0.625 5.00 0.708 0.625 0 SDLNR 1010K-08FF mm 10 10 10 120 18 10 0 0.2 SB-3080TR LTW-1 OSS DNGU222.. DNMU222.. 1212F-08FF 12 12 12 85 18 12 0 1212K-08FF 12 12 12 120 18 12 0 1616K-08FF 16 16 16 120 18 16 0 Applicable Inserts Application Finishing- Medium Medium- Roughing Finishing Low Feed Ref. Page B51 B51 B51 B51 Insert Toolholder SK GK FR-F (F/E)R-U SDLNR...2.2... SDLNR...-08FF DNGU222.. DNMU222.. DNGU222.. DNGU222.. Recommended Cutting Conditions E41 E40 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
