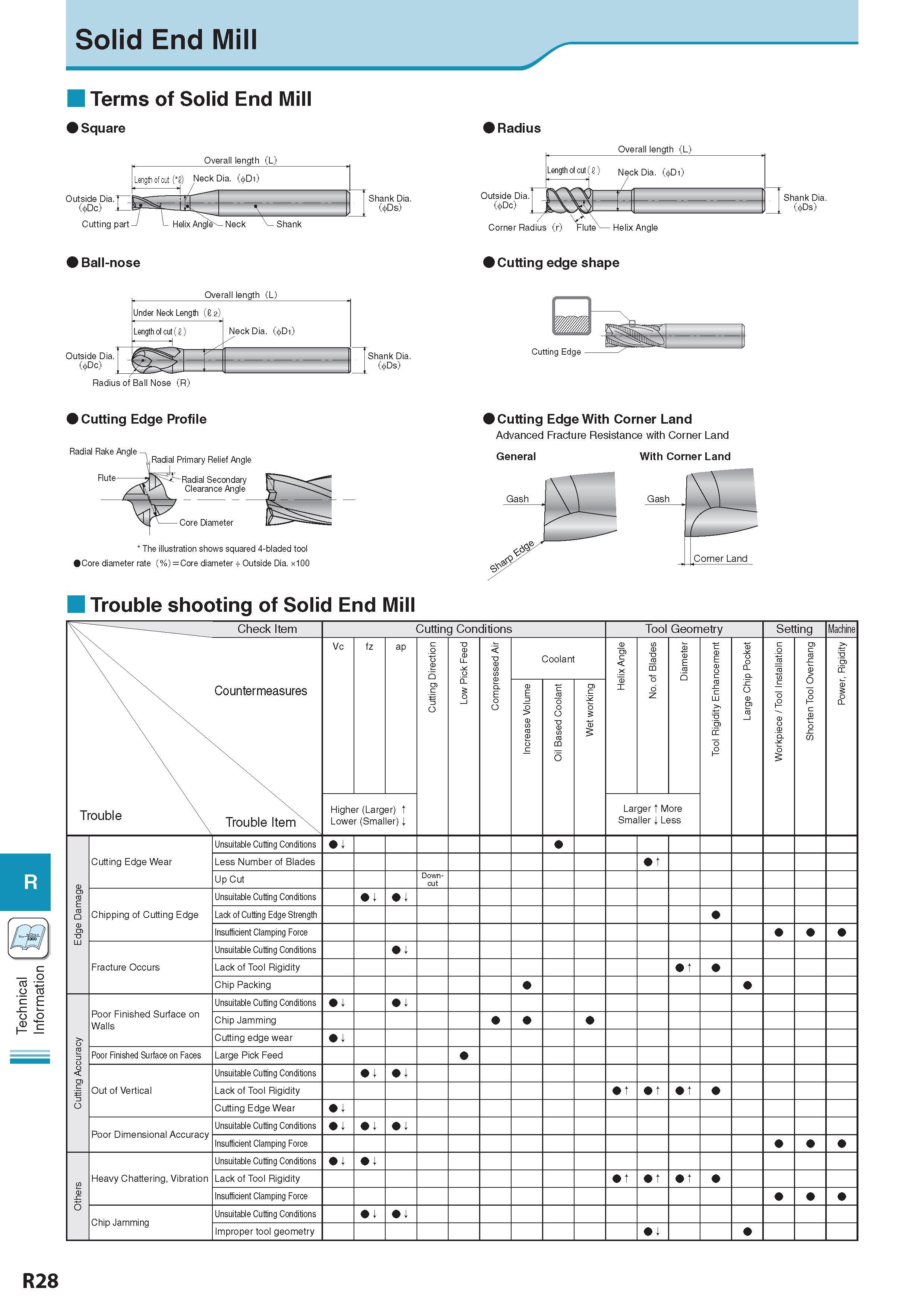

Technical Information Solid End Mill Terms of Solid End Mill Square Overall length (L) Outside Dia. ( Dc) Cutting part Ball-nose Length of cut ( 0 Neck Dia. ( D0 A Helix Angl - Neck Overall length (L) Under Neck Length (8 2) Neck Dia. ( Di) Radius of Ball Nose (R) Cutting Edge Profile Radial Rake Angle Radial Primary Relief Angle Radial Secondary Clearance Angle The illustration shows squared 4-bladed tool Core diameter rate (%) = Core diameter Outside Dia. x100 Shank Dia. (Ds) Shank Dia. (4>Ds) Trouble shooting of Solid End Mill Radius Overall length (L) Length ol cut (I) Neck Dia. (4D1) Corner Radius (r) Flute Helix Angle Cutting edge shape Cutting Edge - Cutting Edge With Corner Land Advanced Fracture Resistance with Corner Land General With Corner Land Shank Core Diameter R R28
