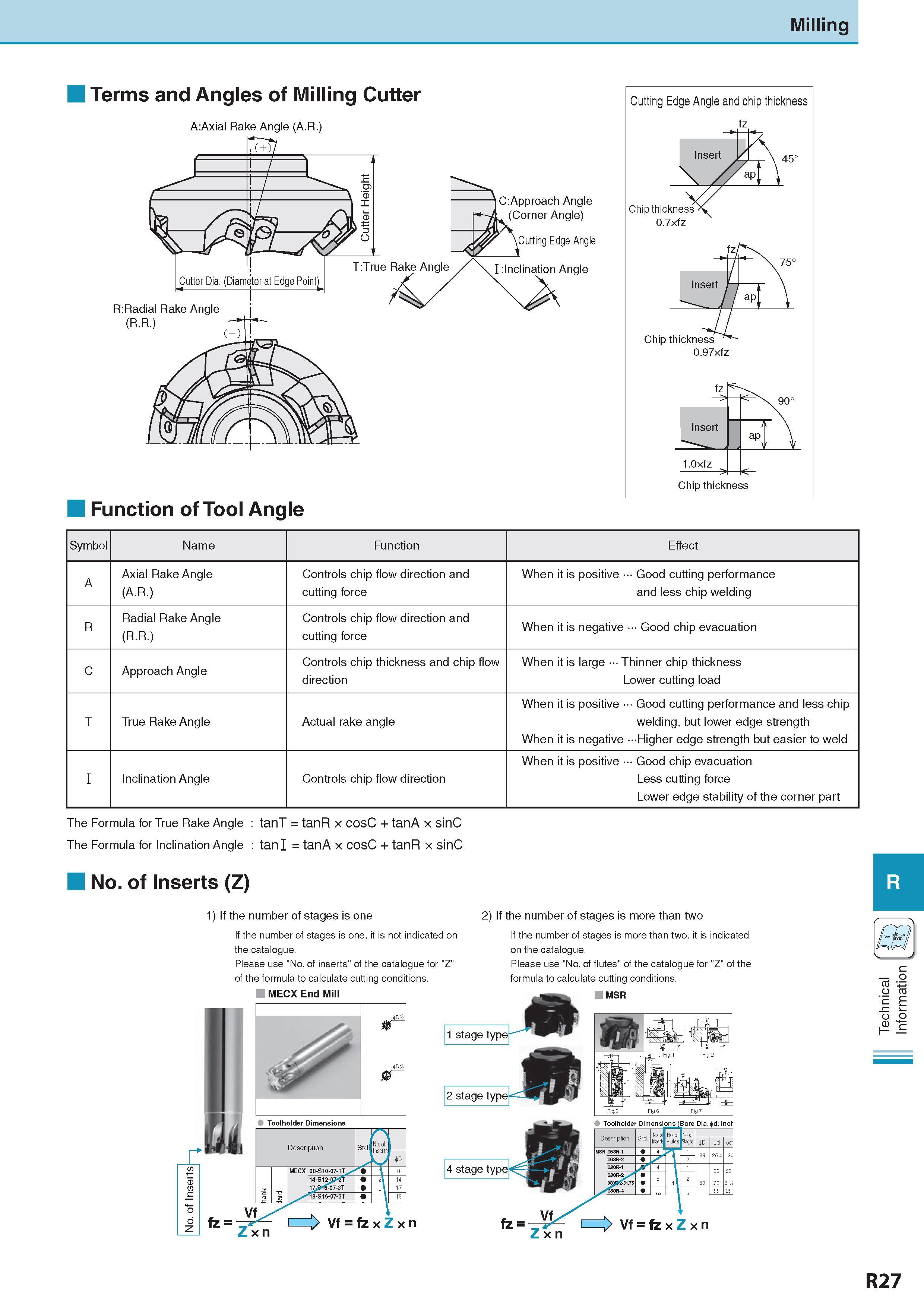

Milling Terms and Angles of Milling Cutter A:Axial Rake Angle (A.R.) Function of Tool Angle Symbol Name Function Effect A Axial Rake Angle (A.R.) Controls chip flow direction and cutting force When it is positive Good cutting performance and less chip welding R Radial Rake Angle (R.R) Controls chip flow direction and cutting force When it is negative Good chip evacuation C Approach Angle Controls chip thickness and chip flow direction When it is large Thinner chip thickness Lower cutting load T True Rake Angle Actual rake angle When it is positive Good cutting performance and less chip welding, but lower edge strength When it is negative Higher edge strength but easier to weld I Inclination Angle Controls chip flow direction When it is positive Good chip evacuation Less cutting force Lower edge stability of the corner part The Formula for True Rake Angle : tanT = tanR x COsC + tanA x sinC The Formula for Inclination Angle : tan I = tanA x COsC + tanR x sinC No. of Inserts (Z) 1) If the number of stages is one If the number of stages is one, it is not indicated on the catalogue. Please use "No. of inserts" of the catalogue for "Z" of the formula to calculate cutting conditions. MECX End Mill 2) If the number of stages is more than two If the number of stages is more than two, it is indicated on the catalogue. Please use "No. of flutes" of the catalogue for "Z" of the formula to calculate cutting conditions. MSR Toolholder Dimensions Description Обозначение Std No. of I 1 J. c )D hank -a MECX 08-S10-07-1T - 8 14-S12-J)7'2T 21 14 1Z T£07-3T 17 18 18-S16-07-3T Vf Z x n => Vf = fz x Z x n Z x n l=> Vf = fz x Z x n R27 Technical Information
