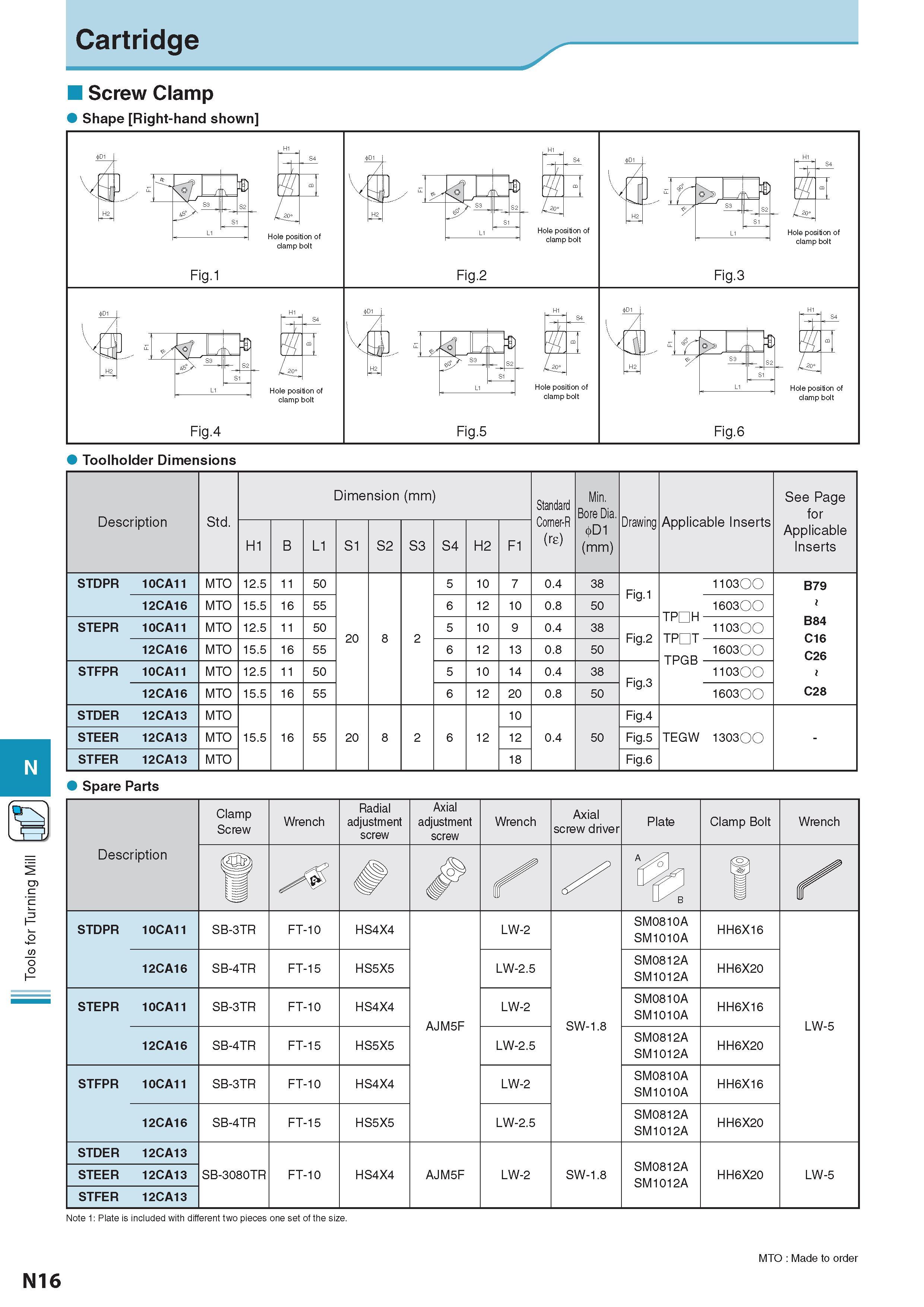

977 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.N16

Каталог KYOCERA 2017 Инструмент режущий Стр. N16 0977 Lab2u

Tools for Turning Mill Cartridge Screw Clamp Shape Показано правое исполнение инструмента Toolholder Dimensions Description Обозначение Std. Dimension (mm) Размеры в мм Standard Corner-R (re) Min. Bore Dia. D1 (mm) Drawing Applicable Inserts See Page for Applicable Inserts H1 B L1 S1 S2 S3 S4 H2 F1 STDPR 10CA11 MTO 12.5 11 50 20 8 2 5 10 7 0.4 38 Fig.1 110300 B79 i B84 C16 C26 i C28 12CA16 MTO 15.5 16 55 6 12 10 0.8 50 160300 STEPR 10CA11 MTO 12.5 11 50 5 10 9 0.4 38 Fig.2 II I ll 110300 TPI IT 12CA16 MTO 15.5 16 55 6 12 13 0.8 50 160300 STFPR 10CA11 MTO 12.5 11 50 5 10 14 0.4 38 Fig.3 110300 12CA16 MTO 15.5 16 55 6 12 20 0.8 50 160300 STDER 12CA13 MTO 10 Fig.4 STEER 12CA13 MTO 15.5 16 55 20 8 2 6 12 12 0.4 50 Fig.5 TEGW 130300 - STFER 12CA13 MTO 18 Fig.6 Spare Parts Clamp Screw Wrench Radial adjustment screw Axial adjustment screw Wrench Axial screw driver Plate Clamp Bolt Wrench Description Обозначение u s X rh KoT s STDPR 10CA11 SB-3TR FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STEPR 10CA11 SB-3TR FT-10 HS4X4 AJM5F LW-2 SW-1.8 SM0810A SM1010A HH6X16 LW-5 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STFPR 10CA11 SB-3TR FT-10 HS4X4 LW-2 SM0810A SM1010A HH6X16 12CA16 SB-4TR FT-15 HS5X5 LW-2.5 SM0812A SM1012A HH6X20 STDER 12CA13 SM0812A SM1012A STEER STFER 12CA13 12CA13 SB-3080TR FT-10 HS4X4 AJM5F LW-2 SW-1.8 HH6X20 LW-5 Note 1: Plate is included with different two pieces one set of the size. MTO : Made to order N16
