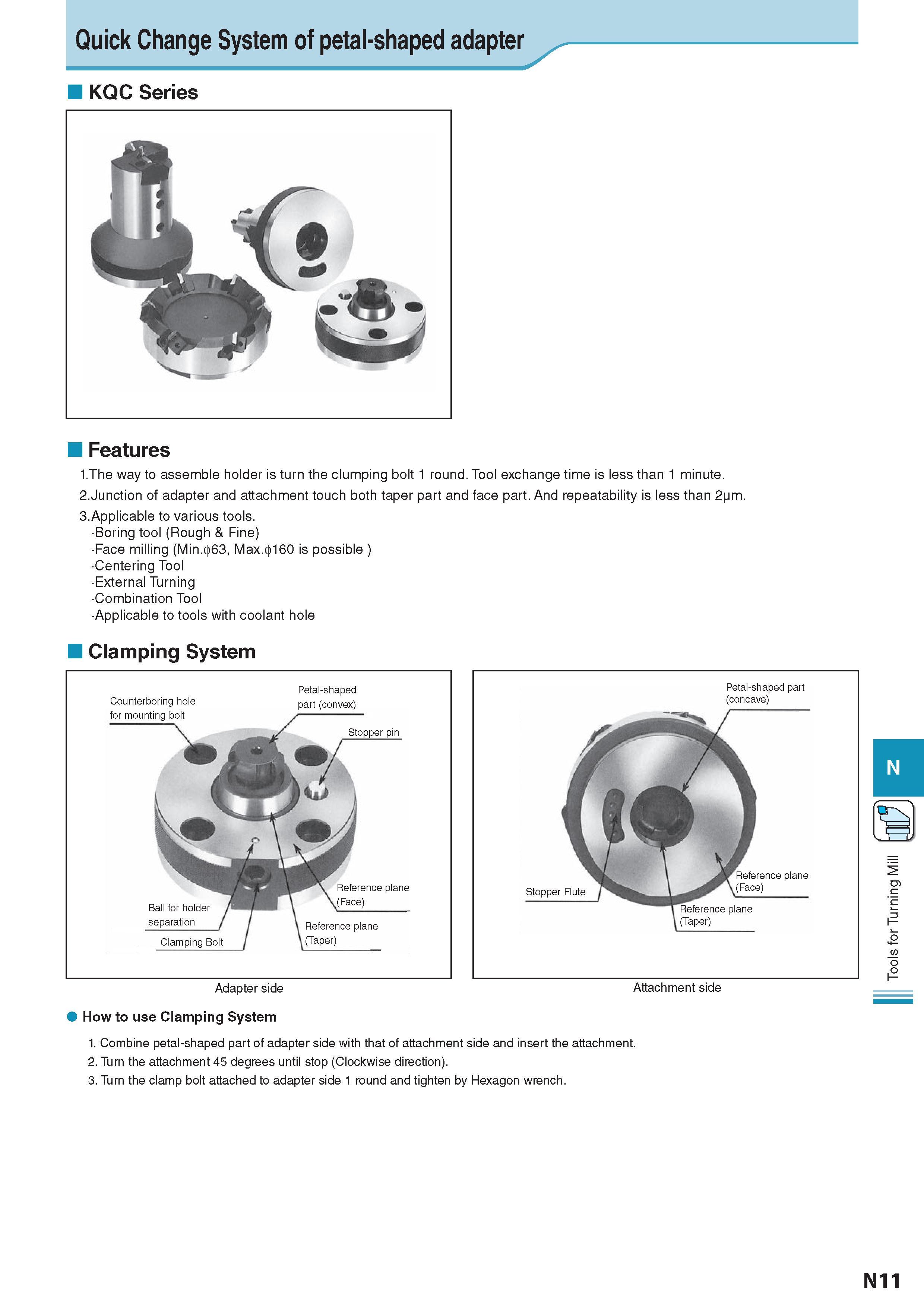

Quick Change System of petal-shaped adapter KQC Series Features 1.The way to assemble holder is turn the clumping bolt 1 round. Tool exchange time is less than 1 minute. 2.Junction of adapter and attachment touch both taper part and face part. And repeatability is less than 2pm. 3.Applicable to various tools. Boring tool (Rough & Fine) Face milling (Min. 63, Max. 160 is possible ) Centering Tool External Turning Combination Tool Applicable to tools with coolant hole Clamping System Stopper Flute Petal-shaped part (concave) Reference plane (Face) Reference plane (Taper) N Adapter side Attachment side How to use Clamping System 1. Combine petal-shaped part of adapter side with that of attachment side and insert the attachment. 2. Turn the attachment 45 degrees until stop (Clockwise direction). 3. Turn the clamp bolt attached to adapter side 1 round and tighten by Hexagon wrench. N11 Tools for Turning Mill
