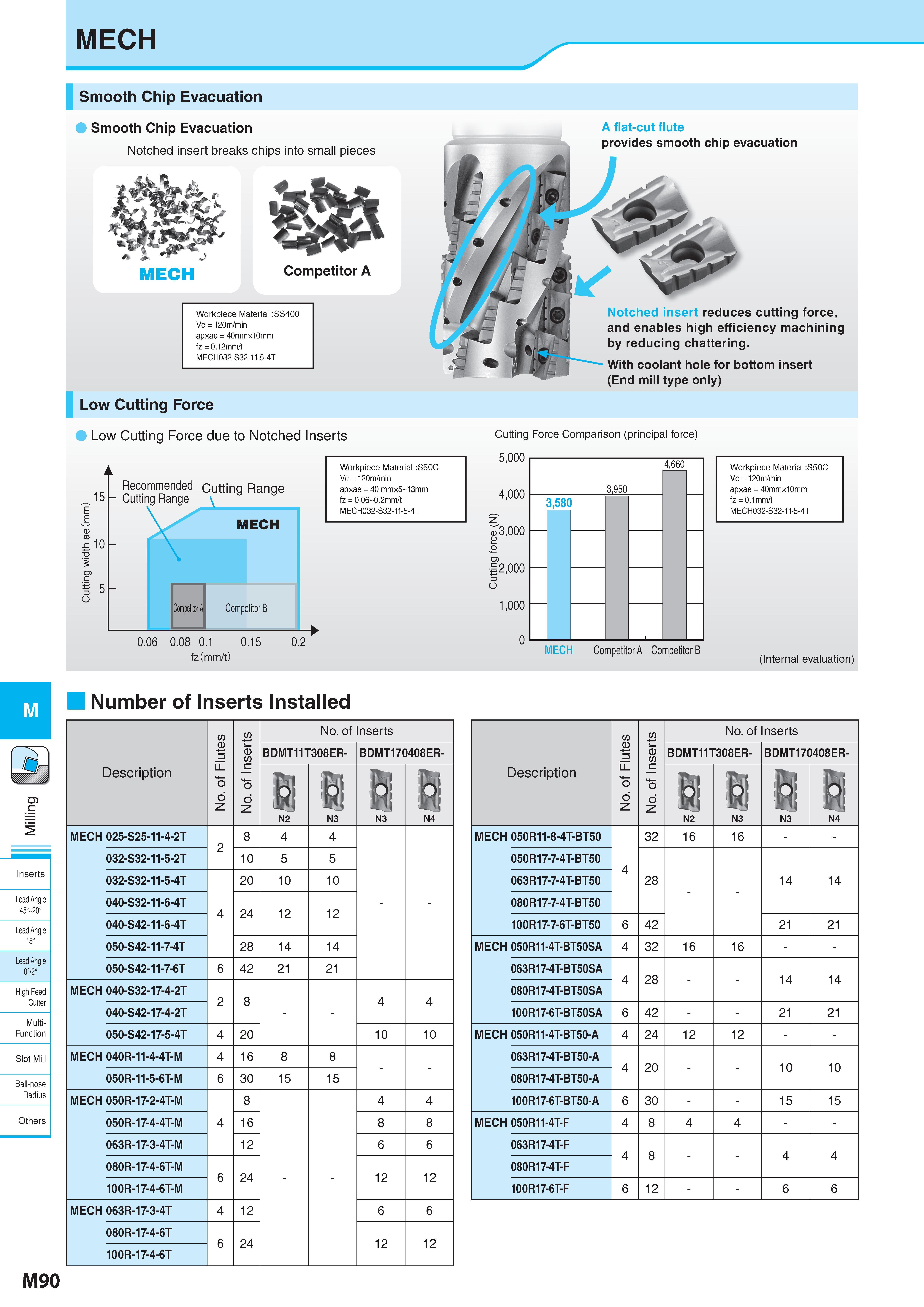

MECH M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Smooth Chip Evacuation Smooth Chip Evacuation Notched insert breaks chips into small pieces MECH Competitor A Workpiece Material Обрабатываемый материал :SS400 Vc = 120m/min apxae = 40mmx10mm fz = 0.12mm/t MECH032-S32-11-5-4T Low Cutting Force Low Cutting Force due to Notched Inserts 15 Recommended Cutting Range - Cutting Range ; 10- Workpiece Material Обрабатываемый материал :S50C Vc = 120m/min apxae = 40 mmx5 13mm fz = 0.06 0.2mm/t MECH032-S32-11-5-4T 0.06 0.08 0.1 fz(mm/t) Cutting Force Comparison (principal force) 5,000 MECH Competitor A Competitor B Workpiece Material Обрабатываемый материал :S50C Vc = 120m/min apxae = 40mmx10mm fz = 0.1mm/t MECH032-S32-11-5-4T (Internal evaluation) Number of Inserts Installed 5 Description Обозначение No. of Flutes No. of Inserts No. of Inserts BDMT11T308ER- BDMT170408ER- i N2 N3 N3 N4 MECH 025-S25-11-4-2T 2 8 4 4 032-S32-11-5-2T 10 5 5 032-S32-11-5-4T 4 20 10 10 040-S32-11-6-4T 24 12 12 040-S42-11-6-4T 050-S42-11-7-4T 28 14 14 050-S42-11-7-6T 6 42 21 21 MECH 040-S32-17-4-2T 2 8 4 4 040-S42-17-4-2T 050-S42-17-5-4T 4 20 10 10 MECH 040R-11-4-4T-M 4 16 8 8 050R-11-5-6T-M 6 30 15 15 MECH 050R-17-2-4T-M 4 8 4 4 050R-17-4-4T-M 16 8 8 063R-17-3-4T-M 12 6 6 080R-17-4-6T-M 6 24 12 12 100R-17-4-6T-M MECH 063R-17-3-4T 4 12 6 6 080R-17-4-6T 6 24 12 12 100R-17-4-6T Description Обозначение No. of Flutes No. of Inserts No. of Inserts BDMT11T308ER- BDMT170408ER- N2 i N3 N3 N4 MECH 050R11-8-4T-BT50 4 32 16 16 050R17-7-4T-BT50 28 14 14 063R17-7-4T-BT50 080R17-7-4T-BT50 100R17-7-6T-BT50 6 42 21 21 MECH 050R11-4T-BT50SA 4 32 16 16 063R17-4T-BT50SA 4 28 14 14 080R17-4T-BT50SA 100R17-6T-BT50SA 6 42 21 21 MECH 050R11-4T-BT50-A 4 24 12 12 063R17-4T-BT50-A 4 20 10 10 080R17-4T-BT50-A 100R17-6T-BT50-A 6 30 15 15 MECH 050R11-4T-F 4 8 4 4 063R17-4T-F 4 8 4 4 080R17-4T-F 100R17-6T-F 6 12 6 6 A flat-cut flute provides smooth chip evacuation Notched insert reduces cutting force, and enables high efficiency machining by reducing chattering. With coolant hole for bottom insert (End mill type only) M90
