838 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M88

Каталог KYOCERA 2017 Инструмент режущий Стр. M88 0838 Lab2u

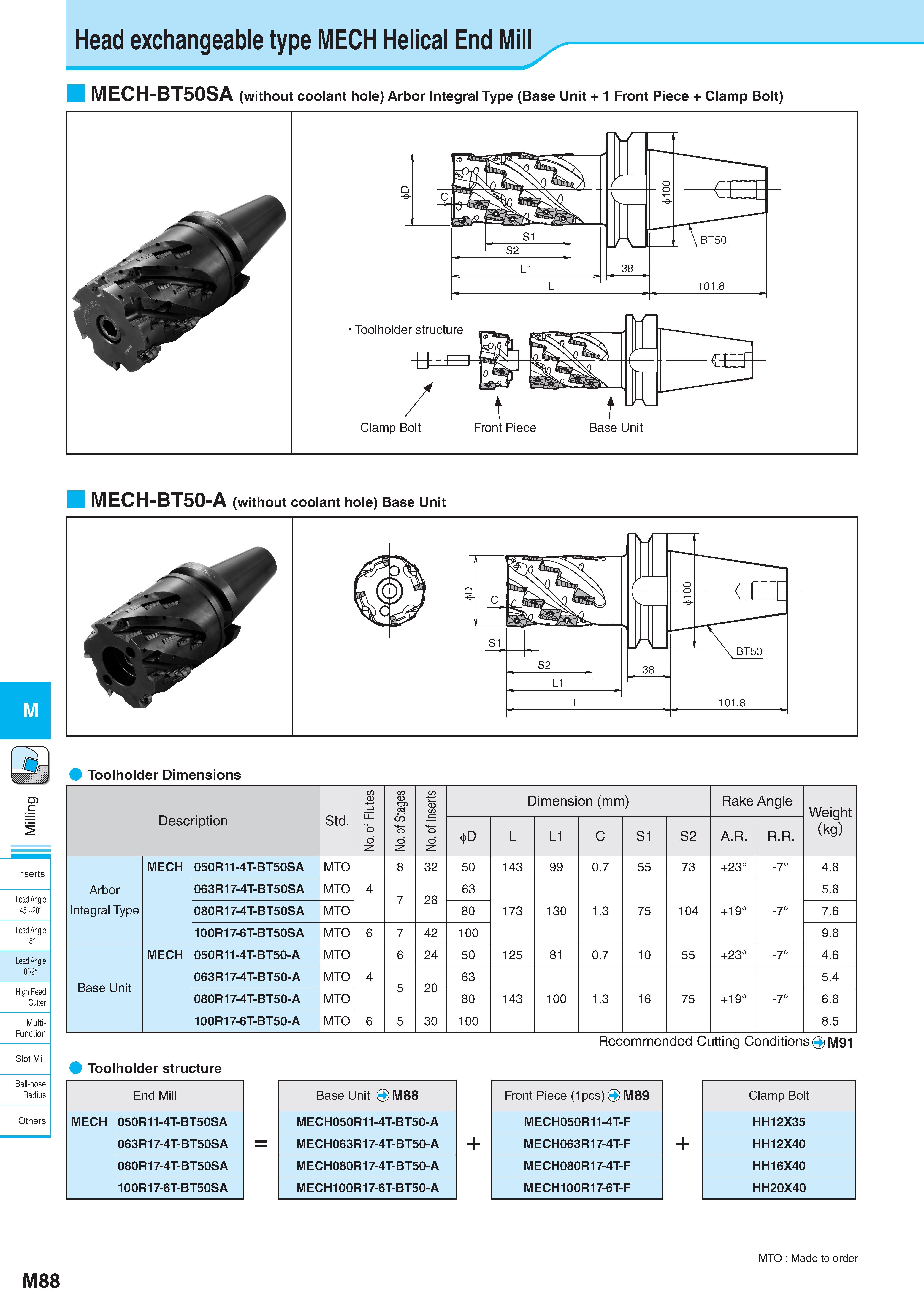

Head exchangeable type MECH Helical End Mill MECH-BT50SA (without coolant hole) Arbor Integral Type (Base Unit + 1 Front Piece + Clamp Bolt) MECH -BT50-A (without coolant hole) Base Unit Toolholder Dimensions Description Обозначение Std. No. of Flutes No. of Stages No. of Inserts Dimension (mm) Размеры в мм Rake Angle Weight (kg) Вес инструмента в кг (kg) D L L1 C S1 S2 A.R. R.R. Arbor Integral Type MECH 050R11-4T-BT50SA MTO 4 8 32 50 143 99 0.7 55 73 +23° -7° 4.8 063R17-4T-BT50SA MTO 7 28 63 173 130 1.3 75 104 +19° -7° 5.8 080R17-4T-BT50SA MTO 80 7.6 100R17-6T-BT50SA MTO 6 7 42 100 9.8 Base Unit MECH 050R11-4T-BT50-A MTO 4 6 24 50 125 81 0.7 10 55 +23° -7° 4.6 063R17-4T-BT50-A MTO 5 20 63 143 100 1.3 16 75 +19° -7° 5.4 080R17-4T-BT50-A MTO 80 6.8 100R17-6T-BT50-A MTO 6 5 30 100 8.5 c Inserts Lead Angle 45° 20° Lead Angle 15° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Recommended Cutting Conditions Рекомендованные режимы резания на станкахO M91 Toolholder structure End Mill MECH 050R11-4T-BT50SA 063R17-4T-BT50SA 080R17-4T-BT50SA 100R17-6T-BT50SA Base Unit M88 MECH050R11-4T-BT50-A MECH063R17-4T-BT50-A MECH080R17-4T-BT50-A MECH100R17-6T-BT50-A + Front Piece (1pcs) O M89 MECH050R11-4T-F MECH063R17-4T-F MECH080R17-4T-F MECH100R17-6T-F + Clamp Bolt HH12X35 HH12X40 HH16X40 HH20X40 M88 MTO : Made to order
