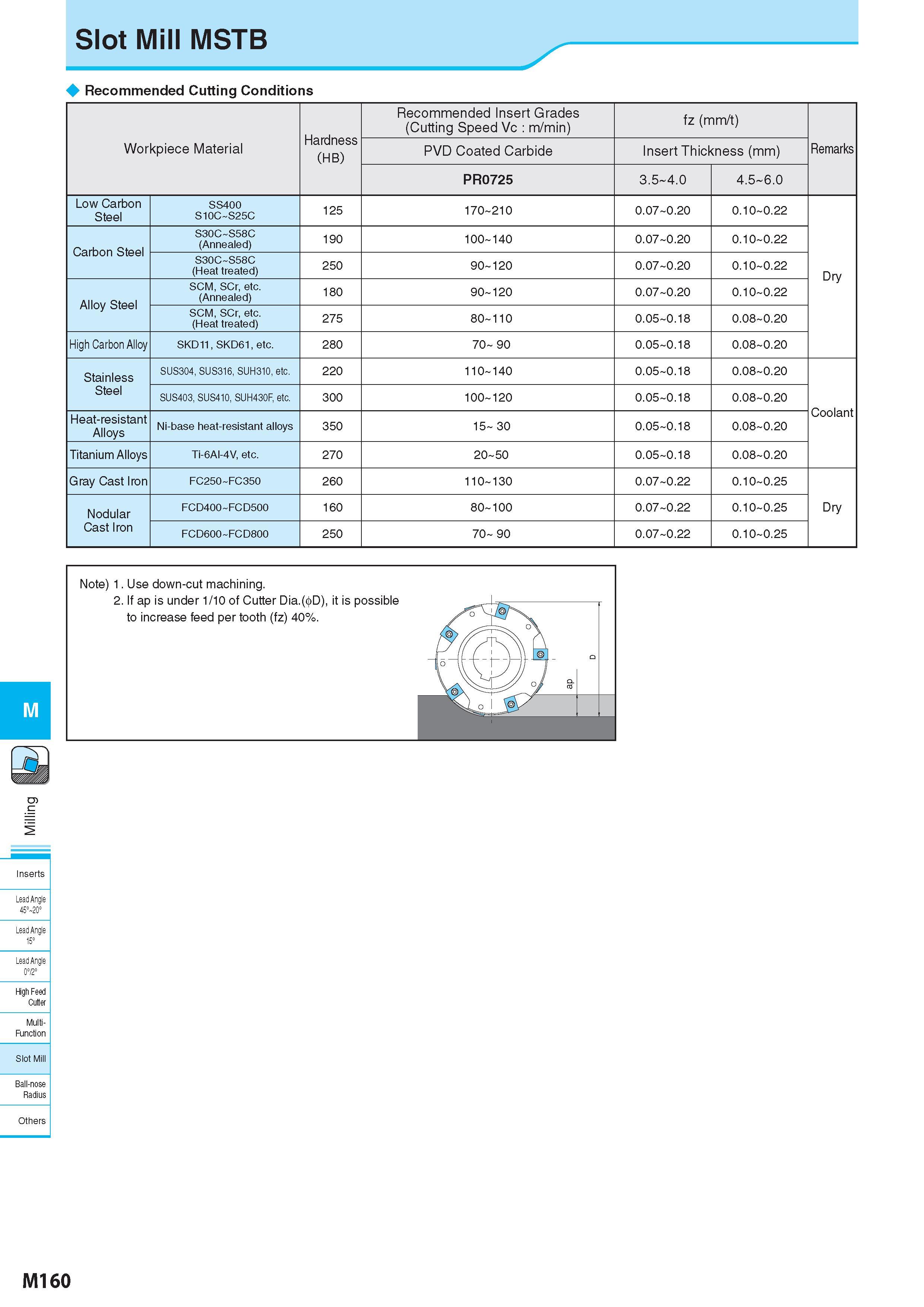

Slot Mill MSTB Recommended Cutting Conditions Рекомендованные режимы резания на станках Hardness (HB) Recommended Insert Grades (Cutting Speed Vc : m/min) fz (mm/t) Workpiece Material Обрабатываемый материал PVD Coated Carbide Insert Thickness (mm) Remarks Примечания PR0725 3.5 4.0 4.5 6.0 Low Carbon Steel SS400 S10C S25C 125 170 210 0.07 0.20 0.10 0.22 Carbon Steel S30C S58C (Annealed) 190 100 140 0.07 0.20 0.10 0.22 S30C S58C (Heat treated) 250 90 120 0.07 0.20 0.10 0.22 Dry Alloy Steel SCM, SCr, etc. (Annealed) 180 90 120 0.07 0.20 0.10 0.22 SCM, SCr, etc. (Heat treated) 275 80 110 0.05 0.18 0.08 0.20 High Carbon Alloy SKD11, SKD61, etc. 280 7 o t 9 o 0.05 0.18 0.08 0.20 Stainless SUS304, SUS316, SUH310, etc. 220 110 140 0.05 0.18 0.08 0.20 Steel SUS403, SUS410, SUH430F, etc. 300 100 120 0.05 0.18 0.08 0.20 Coolant Heat-resistant Alloys Ni-base heat-resistant alloys 350 15 30 0.05 0.18 0.08 0.20 Titanium Alloys Ti-6Al-4V, etc. 270 20 50 0.05 0.18 0.08 0.20 Gray Cast Iron FC250 FC350 260 110 130 0.07 0.22 0.10 0.25 Nodular FCD400 FCD500 160 80 100 0.07 0.22 0.10 0.25 Dry Cast Iron FCD600 FCD800 250 7 O t 9 o 0.07 0.22 0.10 0.25 Note) 1 . Use down-cut machining. 2. If ap is under 1/10 of Cutter Dia.( D), it is possible to increase feed per tooth (fz) 40%. Lead Angle 45° 20° Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Ball-nose Radius Slot Mill M160
