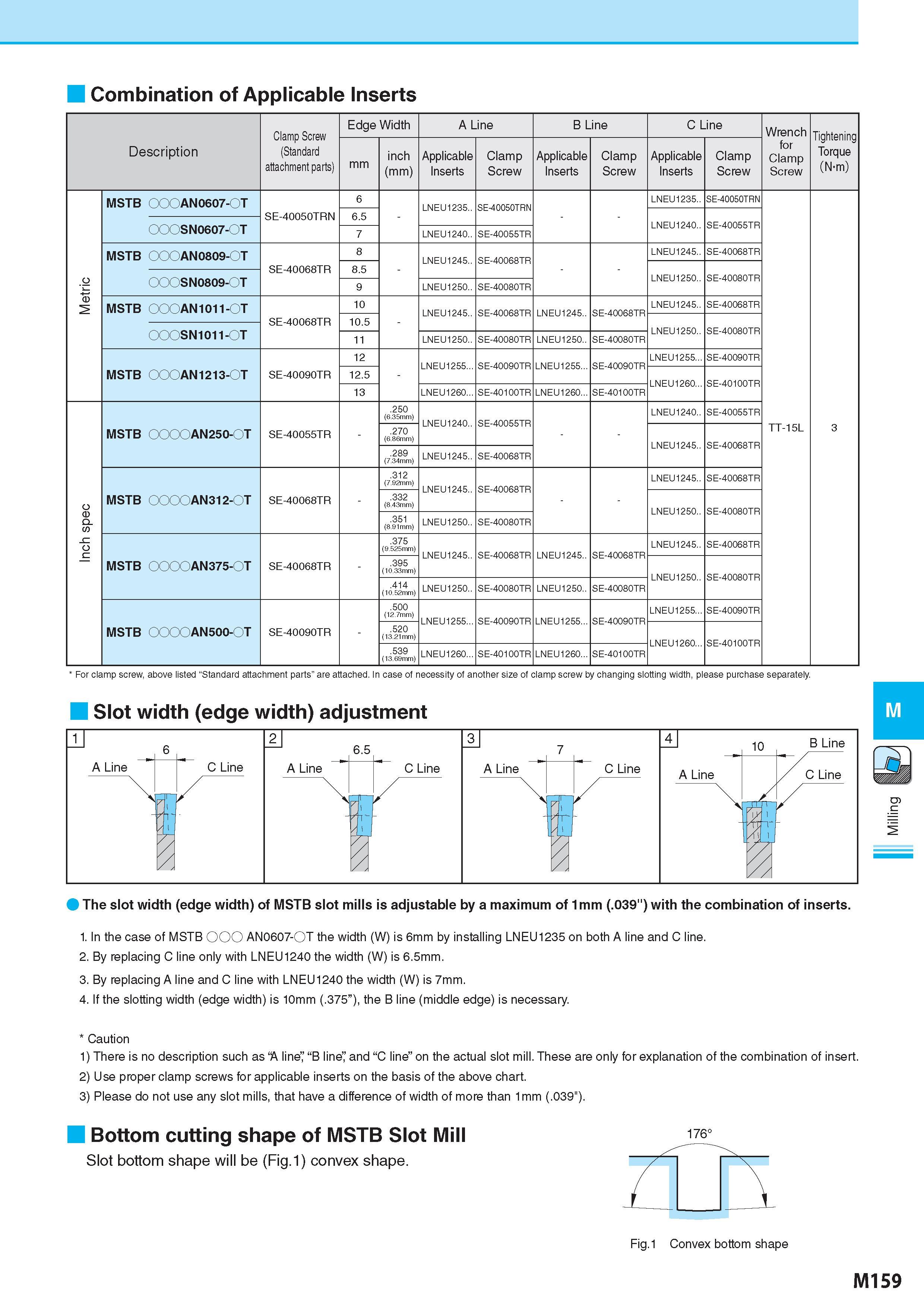

909 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M159

Каталог KYOCERA 2017 Инструмент режущий Стр. M159 0909 Lab2u

Combination of Applicable Inserts Clamp Screw (Standard attachment parts) Edge Width A Line B Line C Line Wrench Tightening Torque (N-m) Description Обозначение mm inch (mm) Applicable Inserts Clamp Screw Applicable Inserts Clamp Screw Applicable Inserts Clamp Screw for Clamp Screw MSTB OOOAN0607-OT 6 LNEU1235.. SE-40050TRN LNEU1235.. SE-40050TRN SE-40050TRN 6.5 OOOSN0607-OT LNEU1240.. SE-40055TR 7 LNEU1240.. SE-40055TR MSTB OOOAN0809-OT 8 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR SE-40068TR 8.5 Metric OOOSN0809-OT LNEU1250.. SE-40080TR 9 LNEU1250.. SE-40080TR MSTB OOOAN1011-OT 10 LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR SE-40068TR 10.5 OOOSN1011-OT LNEU1250.. SE-40080TR 11 LNEU1250.. SE-40080TR LNEU1250.. SE-40080TR 12 LNEU1255... SE-40090TR LNEU1255... SE-40090TR LNEU1255... SE-40090TR MSTB OOOAN1213-OT SE-40090TR 12.5 - LNEU1260... SE-40100TR 13 LNEU1260... SE-40100TR LNEU1260... SE-40100TR .250 (6.35mm) LNEU1240.. SE-40055TR LNEU1240.. SE-40055TR MSTB OOOOAN250-OT SE-40055TR - .270 (6.86mm) LNEU1245.. SE-40068TR TT-15L 3 .289 (7.34mm) LNEU1245.. SE-40068TR .312 (7.92mm) LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR Inch spec MSTB OOOOAN312-OT SE-40068TR - .332 (8.43mm) LNEU1250.. SE-40080TR .351 (8.91mm) LNEU1250.. SE-40080TR .375 (9.525mm) LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR LNEU1245.. SE-40068TR MSTB OOOOAN375-OT SE-40068TR - .395 (10.33mm) LNEU1250.. SE-40080TR .414 (10.52mm) LNEU1250.. SE-40080TR LNEU1250.. SE-40080TR .500 (12.7mm) LNEU1255... SE-40090TR LNEU1255... SE-40090TR LNEU1255... SE-40090TR MSTB OOOOAN500-OT SE-40090TR - .520 (13.21mm) LNEU1260... SE-40100TR .539 (13.69mm) LNEU1260... SE-40100TR LNEU1260... SE-40100TR For clamp screw, above listed “Standard attachment parts” are attached. In case of necessity of another size of clamp screw by changing slotting width, please purchase separately Slot width (edge width) adjustment M The slot width (edge width) of MSTB slot mills is adjustable by a maximum of 1mm (.039'') with the combination of inserts. 1. In the case of MSTB OOO AN0607-OT the width (W) is 6mm by installing LNEU1235 on both A line and C line. 2. By replacing C line only with LNEU1240 the width (W) is 6.5mm. 3. By replacing A line and C line with LNEU1240 the width (W) is 7mm. 4. If the slotting width (edge width) is 10mm (.375’’), the B line (middle edge) is necessary. Caution 1) There is no description such as ‘A line”’ “B line” and “C line” on the actual slot mill. These are only for explanation of the combination of insert. 2) Use proper clamp screws for applicable inserts on the basis of the above chart. 3) Please do not use any slot mills, that have a difference of width of more than 1mm (.039"). Bottom cutting shape of MSTB Slot Mill 176° Slot bottom shape will be (Fig.1) convex shape. Fig.1 Convex bottom shape M159
