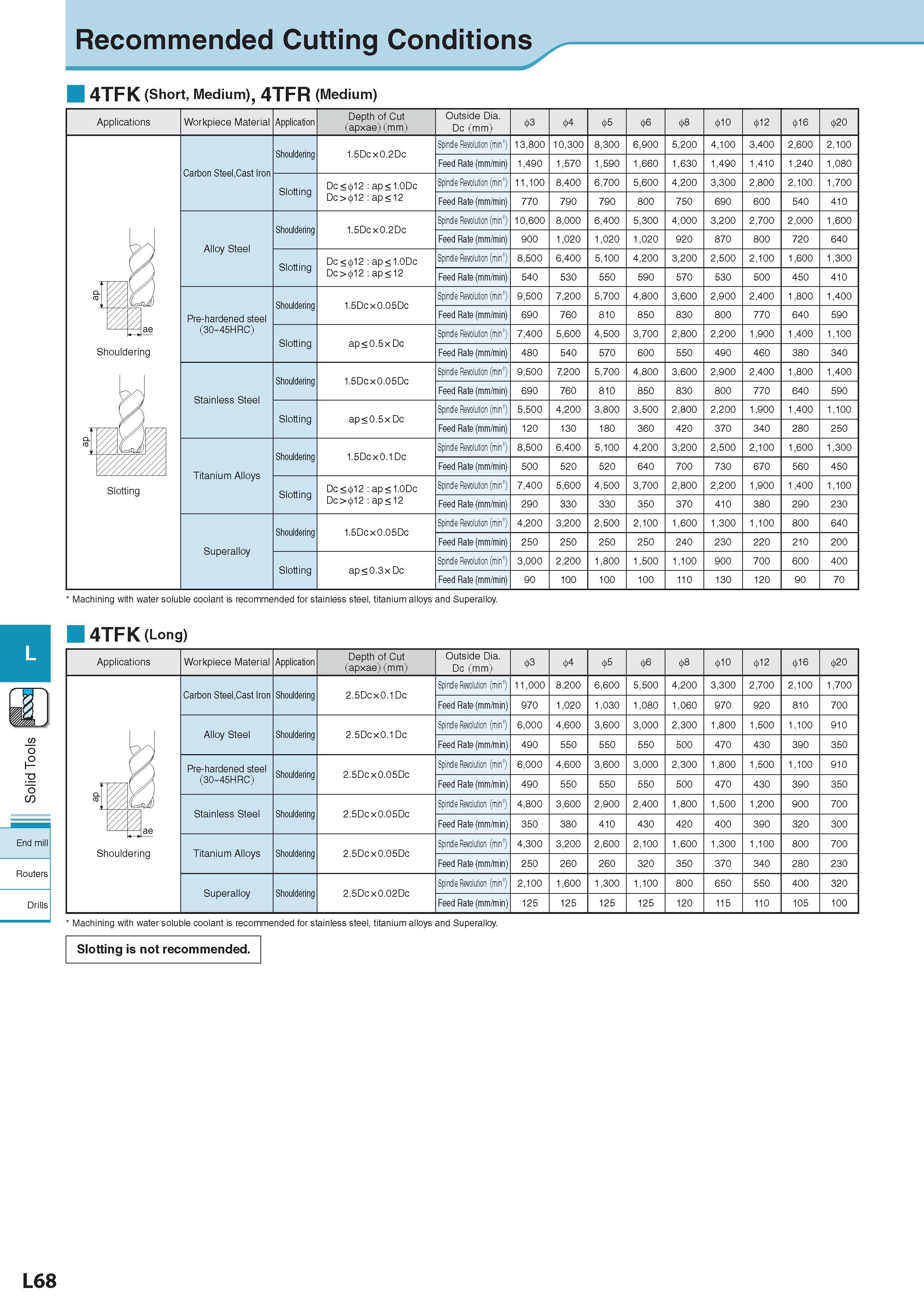

Recommended Cutting Conditions Рекомендованные режимы резания на станках 4TFK (Short, Medium), 4TFR (Medium) Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 43 44 45 46 48 410 412 416 420 Carbon Steel,Cast Iron Shouldering 1.5Dcx0.2Dc Spindle Revolution (min-1) 13,800 10,300 8,300 6,900 5,200 4,100 3,400 2,600 2,100 Feed Rate (mm/min) 1,490 1,570 1,590 1,660 1,630 1,490 1,410 1,240 1,080 Slotting Dc< 412 : ap<1.0Dc Dc> 412 : ap<12 Spindle Revolution (min-1) 11,100 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 Feed Rate (mm/min) 770 790 790 800 750 690 600 540 410 Alloy Steel Shouldering 1.5Dcx0.2Dc Spindle Revolution (min-1) 10,600 8,000 6,400 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 900 1,020 1,020 1,020 920 870 800 720 640 Slotting Dc< 412 : ap<1.0Dc Dc> 412 : ap<12 Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 540 530 550 590 570 530 500 450 410 c Pre-hardened steel (30 45HRC) Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 9,500 7,200 5,700 4,800 3,600 2,900 2,400 1,800 1,400 //A ae Feed Rate (mm/min) 690 760 810 850 830 800 770 640 590 Slotting ap<0.5x Dc Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 1,400 1,100 Shouldering Feed Rate (mm/min) 480 540 570 600 550 490 460 380 340 Stainless Steel Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 9,500 7,200 5,700 4,800 3,600 2,900 2,400 1,800 1,400 Feed Rate (mm/min) 690 760 810 850 830 800 770 640 590 Slotting ap<0.5x Dc Spindle Revolution (min-1) 5,500 4,200 3,800 3,500 2,800 2,200 1,900 1,400 1,100 Feed Rate (mm/min) 120 130 180 360 420 370 340 280 250 CC I n Titanium Alloys Shouldering 1.5Dcx0.1Dc Spindle Revolution (min-1) 8,500 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 VVwy// Feed Rate (mm/min) 500 520 520 640 700 730 670 560 450 Slotting Slotting Dc< 412 : ap<1.0Dc Dc> 412 : ap<12 Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 1,400 1,100 Feed Rate (mm/min) 290 330 330 350 370 410 380 290 230 Superalloy Shouldering 1.5Dcx0.05Dc Spindle Revolution (min-1) 4,200 3,200 2,500 2,100 1,600 1,300 1,100 800 640 Feed Rate (mm/min) 250 250 250 250 240 230 220 210 200 Slotting ap<0.3x Dc Spindle Revolution (min-1) 3,000 2,200 1,800 1,500 1,100 900 700 600 400 Feed Rate (mm/min) 90 100 100 100 110 130 120 90 70 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and Superalloy 4TFK (Long) Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 43 44 45 46 48 410 412 416 420 Carbon Steel,Cast Iron Shouldering 2.5Dcx0.1Dc Spindle Revolution (min-1) 11,000 8,200 6,600 5,500 4,200 3,300 2,700 2,100 1,700 Feed Rate (mm/min) 970 1,020 1,030 1,080 1,060 970 920 810 700 Alloy Steel Shouldering 2.5Dcx0.1Dc Spindle Revolution (min-1) 6,000 4,600 3,600 3,000 2,300 1,800 1,500 1,100 910 Feed Rate (mm/min) 490 550 550 550 500 470 430 390 350 Pre-hardened steel (30 45HRC) Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 6,000 4,600 3,600 3,000 2,300 1,800 1,500 1,100 910 CC Feed Rate (mm/min) 490 550 550 550 500 470 430 390 350 Stainless Steel Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 4,800 3,600 2,900 2,400 1,800 1,500 1,200 900 700 Feed Rate (mm/min) 350 380 410 430 420 400 390 320 300 Titanium Alloys Shouldering 2.5Dcx0.05Dc Spindle Revolution (min-1) 4,300 3,200 2,600 2,100 1,600 1,300 1,100 800 700 Feed Rate (mm/min) 250 260 260 320 350 370 340 280 230 Superalloy Shouldering 2.5Dcx0.02Dc Spindle Revolution (min-1) 2,100 1,600 1,300 1,100 800 650 550 400 320 Feed Rate (mm/min) 125 125 125 125 120 115 110 105 100 Machining with water soluble coolant is recommended for stainless steel, titanium alloys and Superalloy End mill Slotting is not recommended. L68
