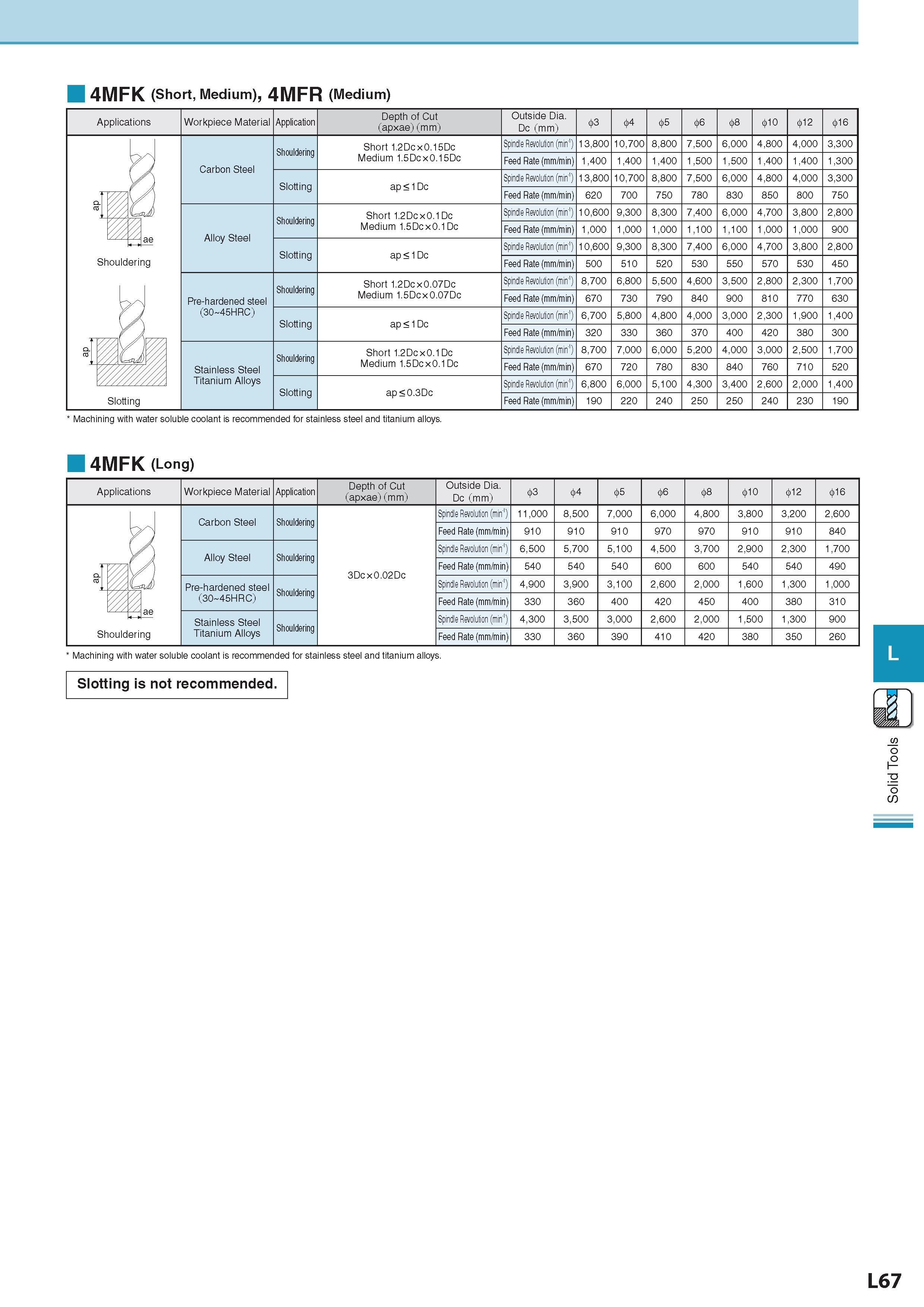

4MFK (Short, Medium), 4MFR (Medium) Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 03 04 05 06 08 010 012 016 H Carbon Steel Shouldering Short 1.2Dcx0.15Dc Medium 1.5Dcx0.15Dc Spindle Revolution (min-1) 13,800 10,700 8,800 7,500 6,000 4,800 4,000 3,300 Feed Rate (mm/min) 1,400 1,400 1,400 1,500 1,500 1,400 1,400 1,300 Slotting ap<1Dc Spindle Revolution (min-1) 13,800 10,700 8,800 7,500 6,000 4,800 4,000 3,300 u Feed Rate (mm/min) 620 700 750 780 830 850 800 750 Alloy Steel Shouldering Short 1.2Dcx0.1Dc Medium 1.5Dcx0.1Dc Spindle Revolution (min-1) 10,600 9,300 8,300 7,400 6,000 4,700 3,800 2,800 Feed Rate (mm/min) 1,000 1,000 1,000 1,100 1,100 1,000 1,000 900 Slotting ap<1Dc Spindle Revolution (min-1) 10,600 9,300 8,300 7,400 6,000 4,700 3,800 2,800 Shouldering Feed Rate (mm/min) 500 510 520 530 550 570 530 450 Pre-hardened steel (30-45HRC) Shouldering Short 1.2Dcx0.07Dc Medium 1.5Dcx0.07Dc Spindle Revolution (min-1) 8,700 6,800 5,500 4,600 3,500 2,800 2,300 1,700 Feed Rate (mm/min) 670 730 790 840 900 810 770 630 Slotting ap<1Dc Spindle Revolution (min-1) 6,700 5,800 4,800 4,000 3,000 2,300 1,900 1,400 Feed Rate (mm/min) 320 330 360 370 400 420 380 300 CC 22 Stainless Steel Titanium Alloys Shouldering Short 1.2Dcx0.1Dc Medium 1.5Dcx0.1Dc Spindle Revolution (min-1) 8,700 7,000 6,000 5,200 4,000 3,000 2,500 1,700 Feed Rate (mm/min) 670 720 780 830 840 760 710 520 Slotting ap<0.3Dc Spindle Revolution (min-1) 6,800 6,000 5,100 4,300 3,400 2,600 2,000 1,400 Slotting Feed Rate (mm/min) 190 220 240 250 250 240 230 190 Machining with water soluble coolant is recommended for stainless steel and titanium alloys. 4MFK (Long) Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 03 04 05 06 08 010 012 016 Carbon Steel Shouldering 3Dcx0.02Dc Spindle Revolution (min-1) 11,000 8,500 7,000 6,000 4,800 3,800 3,200 2,600 Feed Rate (mm/min) 910 910 910 970 970 910 910 840 Alloy Steel Shouldering Spindle Revolution (min-1) 6,500 5,700 5,100 4,500 3,700 2,900 2,300 1,700 CC Feed Rate (mm/min) 540 540 540 600 600 540 540 490 Pre-hardened steel (30 45HRC) Shouldering Spindle Revolution (min-1) 4,900 3,900 3,100 2,600 2,000 1,600 1,300 1,000 // Feed Rate (mm/min) 330 360 400 420 450 400 380 310 Stainless Steel Titanium Alloys Shouldering Spindle Revolution (min-1) 4,300 3,500 3,000 2,600 2,000 1,500 1,300 900 Shouldering Feed Rate (mm/min) 330 360 390 410 420 380 350 260 Machining with water soluble coolant is recommended for stainless steel and titanium alloys. Slotting is not recommended. L67 Solid Tools
