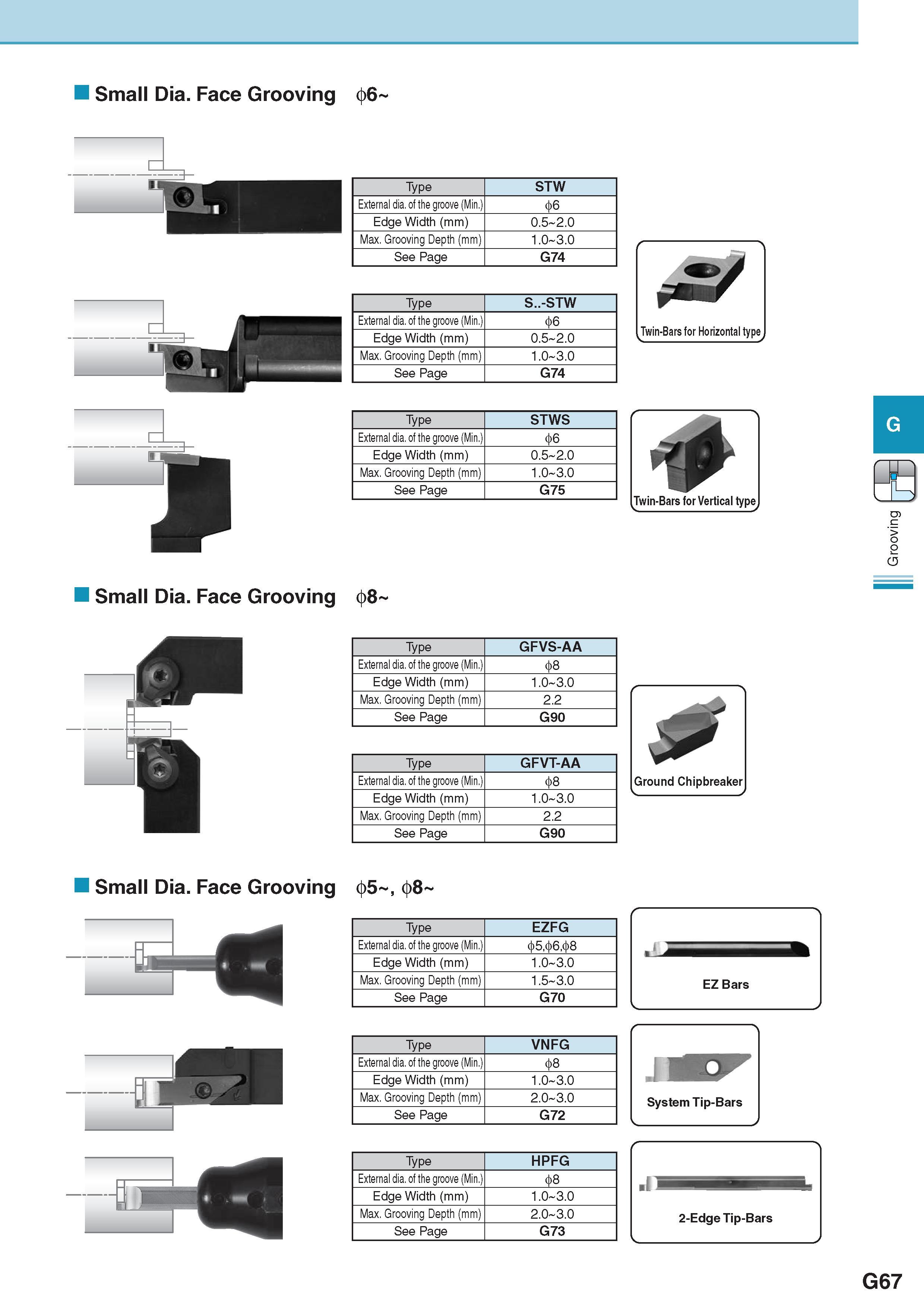

Small Dia. Face Grooving 4>6 Small Dia. Face Grooving Small Dia. Face Grooving Type External dia. of the groove (Min.) STW Edge Width (mm) 0.5 2.0 Max. Grooving Depth (mm) 1.0 3.0 See Page G74 Type External dia. of the groove (Min.) S..-STW 6 Edge Width (mm) 0.5 2.0 Max. Grooving Depth (mm) 1.0 3.0 See Page G74 Jwin-Bars for Horizontal type Type STWS External dia. of the groove (Min.) 6 Edge Width (mm) 0.5 2.0 Max. Grooving Depth (mm) 1.0 3.0 See Page G75 rj 8 > o (3 CD Twin-Bars for Vertical type Type GFVS-AA External dia. of the groove (Min.) 8 Edge Width (mm) 1.0 3.0 Max. Grooving Depth (mm) 2.2 See Page G90 Type GFVT-AA External dia. of the groove (Min.) 8 Edge Width (mm) 1.0 3.0 Max. Grooving Depth (mm) 2.2 See Page G90 5 , 8 Type EZFG External dia. of the groove (Min.) 5, 6, 8 Edge Width (mm) 1.0 3.0 Max. Grooving Depth (mm) 1.5 3.0 See Page G70 Type VNFG External dia. of the groove (Min.) 8 Edge Width (mm) 1.0 3.0 Max. Grooving Depth (mm) 2.0 3.0 See Page G72 Type HPFG External dia. of the groove (Min.) 8 Edge Width (mm) 1.0 3.0 Max. Grooving Depth (mm) 2.0 3.0 See Page G73 2-Edge Tip-Bars G67
