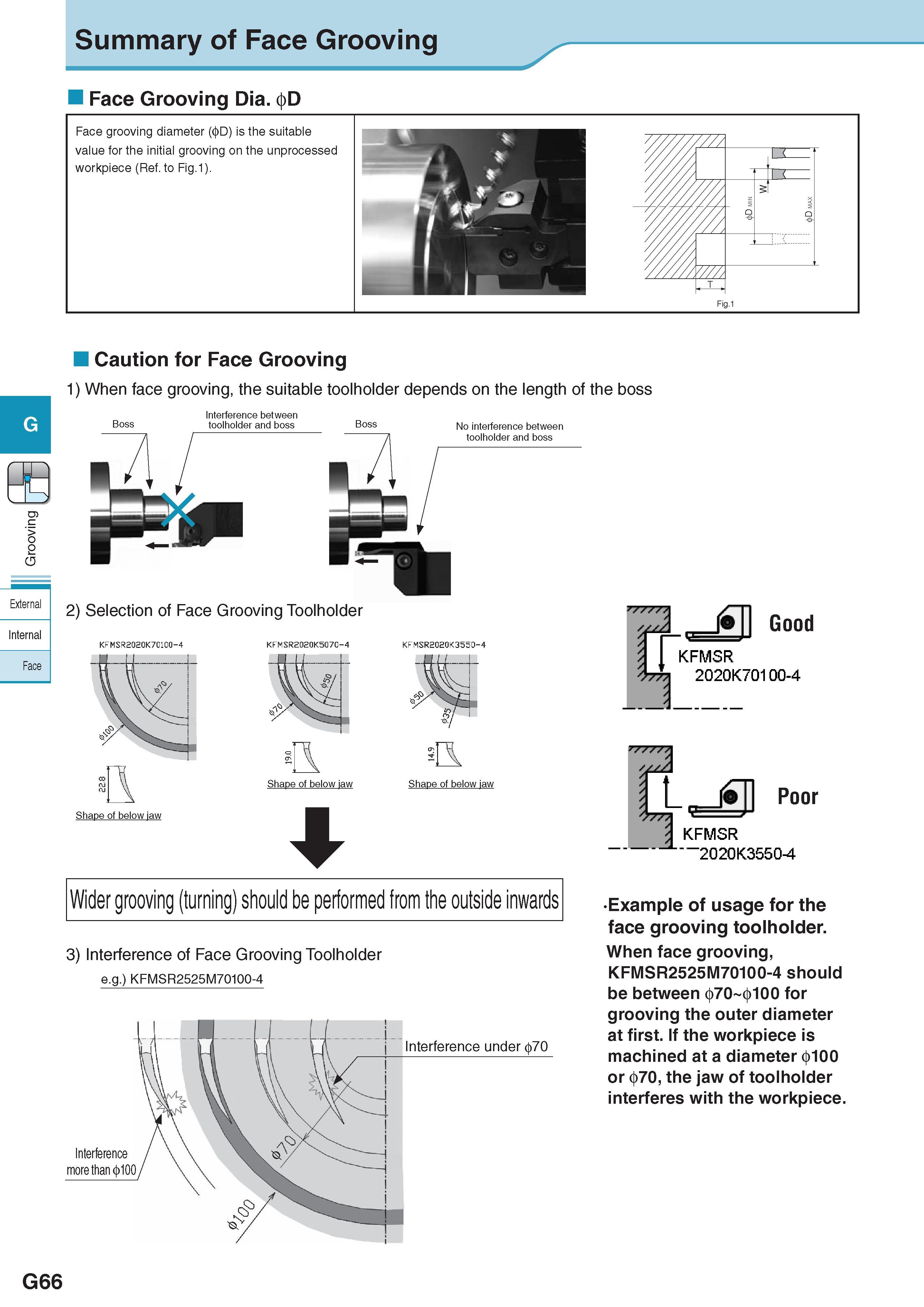

Summary of Face Grooving Face Grooving Dia. 0D 2 CD External Internal Face Caution for Face Grooving 1) When face grooving, the suitable toolholder depends on the length of the boss Boss Interference between toolholder and boss Boss No interference between toolholder and boss 2) Selection of Face Grooving Toolholder KFMSR202GK7C100-4 KFMSR2020K5070-4 KFMSR2Q20K3550-4 Shape of below jaw Shape of below jaw Shape of below jaw Wider grooving (turning) should be performed from the outside inwards 3) Interference of Face Grooving Toolholder e.g.) KFMSR2525M70100-4 Good KFMSR 2020K70100-4 77777 / 4- d 1 K F Poor KFMSR 2020K3550 Example of usage for the face grooving toolholder. When face grooving, KFMSR2525M70100-4 should be between 70- 100 for grooving the outer diameter at first. If the workpiece is machined at a diameter 100 or 70, the jaw of toolholder interferes with the workpiece. G66
